LBD5640A-10 LBD5640AT-10 LBD5640-10 LBD5640T-10
Oteshen
150x92x50mm
Aluminum+PC
65
WHITE+BLACK
calss II
| SKU: | |
|---|---|
| Availability: | |

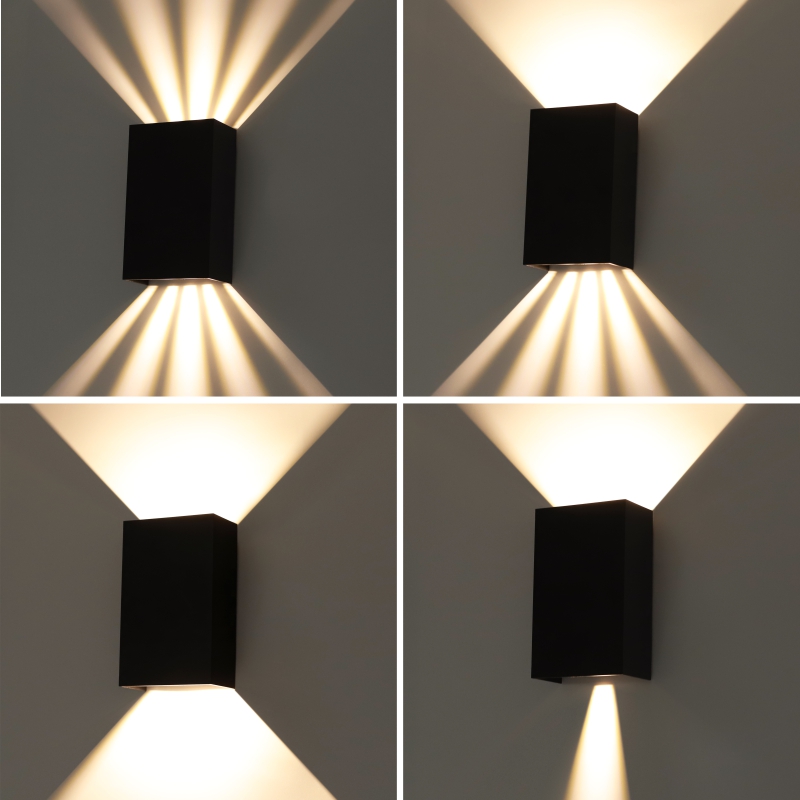

One lamp six lighting effects, this LED WALL LIGHT creates diverse wall projection patterns.
0°–75° adjustable beam angle, freely control light range for different decoration demands.
3CCT adjustable, switch between 3000K, 4200K and 6500K.
IP65 waterproof, stable outdoor performance against rain and humidity.

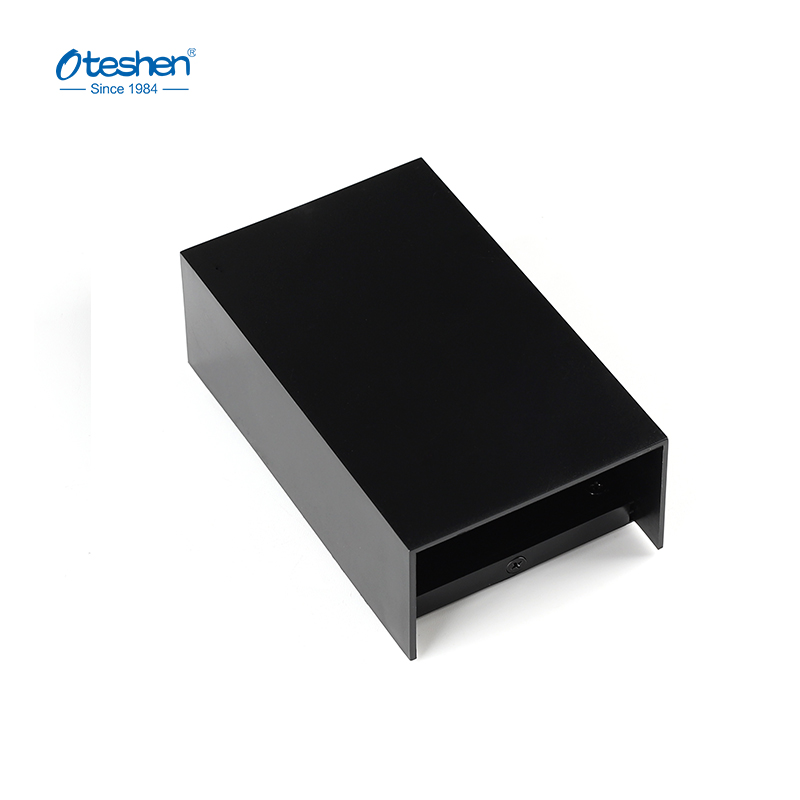

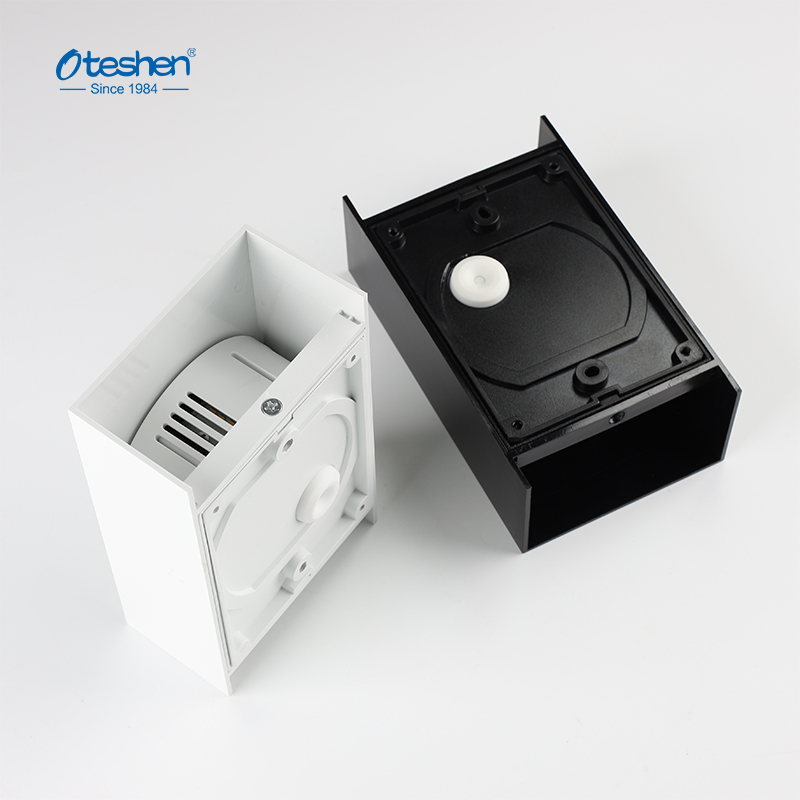

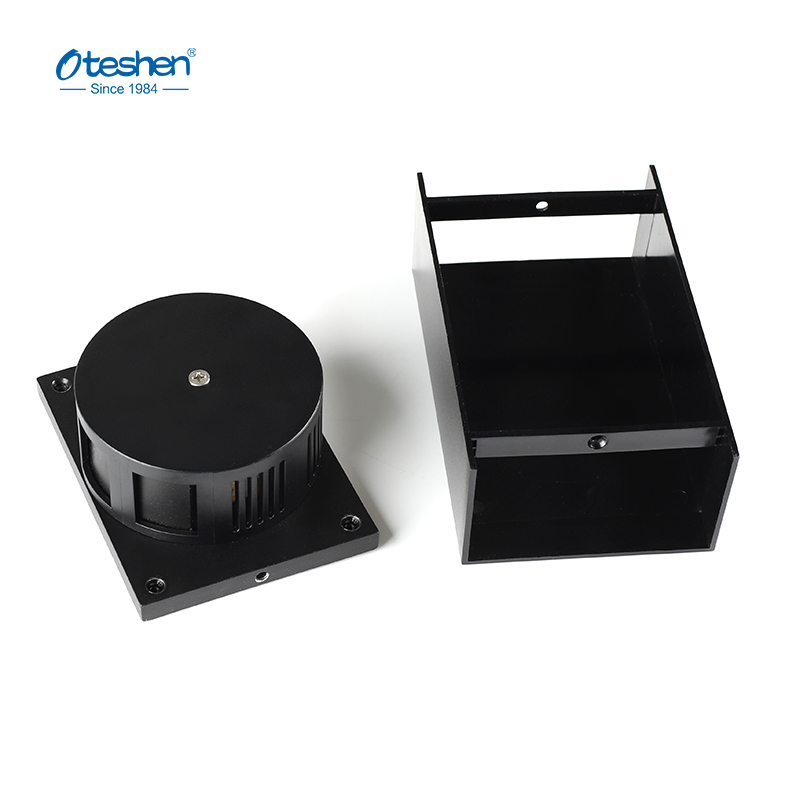

Aluminum / Aluminum+PC housing, durable and good heat dissipation.
Black & white two colors available, all LBD5640 series LED WALL LIGHT with 2-year global warranty.
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm) | 600 lm | 620 lm | 650 lm | ||||||
| color temperature(K) | 3000K | 4200K | 6500K | ||||||
| CRI | ≥80 | ||||||||
| type of LED | SMD LED | ||||||||
| beam angle | |||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 9.5~10W | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 3000Vac/1min | ||||||||
| structure parameter | material | PC+铝 | |||||||
| dimension | 150*92*50mm | ||||||||
| cut-out | 50mm | ||||||||
| protection class | I级 | ||||||||
| IP | IP65 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||

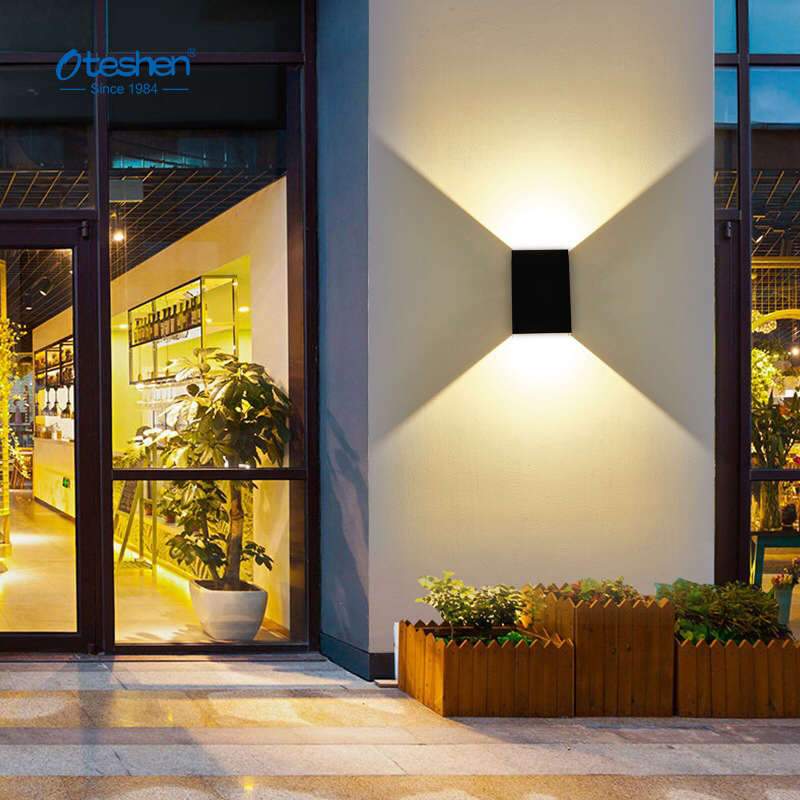

Villa exterior wall: Install LED WALL LIGHT for artistic facade decorative lighting.
Garden courtyard: LED WALL LIGHT creates unique ambient night atmosphere.
Hotel & resort: LED WALL LIGHT for exterior wall landscape lighting.
Club & shop front: LED WALL LIGHT for artistic architectural decoration lighting.

Founded and located in Foshan, China, OTESHEN is a professional integrated LED lighting manufacturer integrating R&D, production and global sales.
We focus on mid-to-high-end residential & engineering lighting, covering magnetic track reading lights, anti-glare outdoor bulkhead lights, IP65 waterproof spike garden lights and other core series.
Our factory owns complete production lines and strict 48-hour aging testing for all finished goods. All products pass CE, BSCI and other international certifications, with stable factory-direct pricing without middlemen markup.
We provide flexible OEM & ODM customization, including personalized logo, packaging, voltage and optical parameters to fit local market demands.
We serve global wholesalers, engineering contractors, interior designers and brand distributors. We stick to the belief: There is always a beam of light waiting for you, and reliable service & win-win cooperation are our permanent pursuit.
Feel free to contact us for samples, catalogs and lighting project solutions.
