performance
parameter | lamp | warm white | natural white | cool white |
| lumen (lm) | 770 lm | 790 lm | 800 lm |
| color temperature（K) | 3000K | 4200K | 6500K |
| CRI | ≥80 |
| type of LED | SMD LED |
| beam angle | 170 |
| decay rate (%) | less than 3% within 1000 working hours |
| total power (W) | 9.5-10W |
| lifespan (Hrs) | ≥30000Hrs |
| high voltage testing | 500Vac/1min |
| output parameter | 130MA±5% 80V |
structure
parameter | material | 铝+PC |
| dimension | 300*80*25mm |
| cut-out | 20 |
| protection class | I级 |
| IP | IP65 |
environment
parameter | application | hotel、home-lighting、recreation place、supermarket、office building |
| operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. |
| storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. |
Residential Use

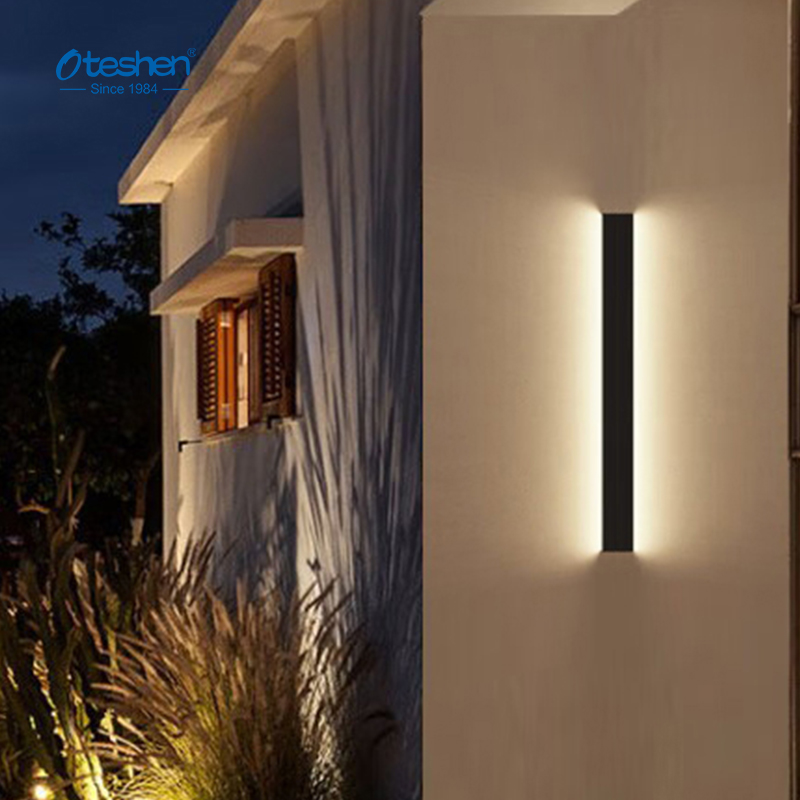

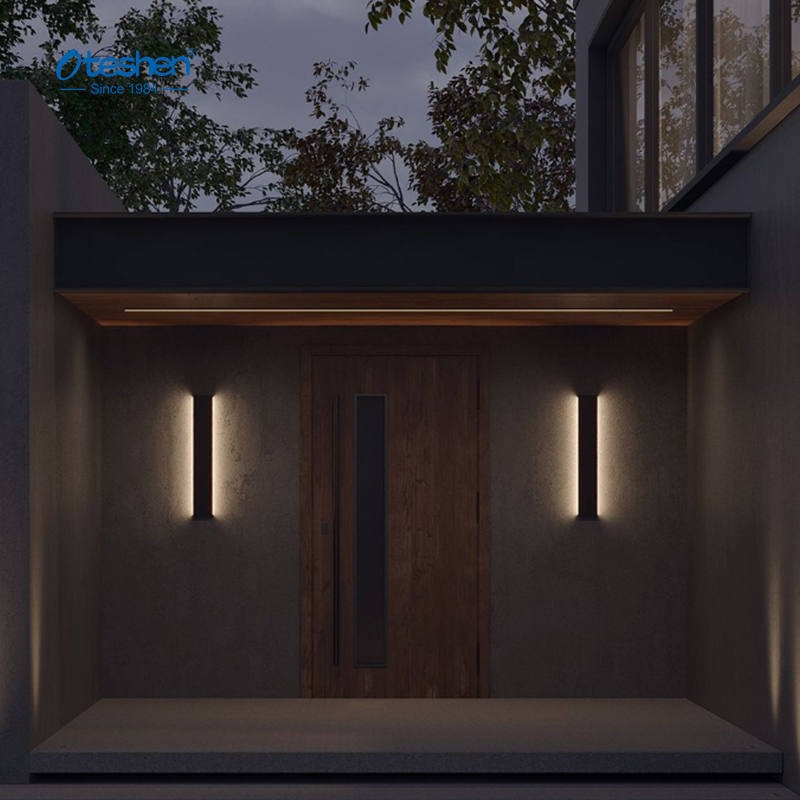

Villa exterior wall: Install LED WALL LIGHT for facade decorative night lighting.
Courtyard & garden: LED WALL LIGHT provides soft outdoor ambient lighting.
Commercial Use
Hotel & club: LED WALL LIGHT for building facade landscape lighting.
Office building & shopping mall: LED WALL LIGHT for exterior wall architectural lighting.
About Us — OTESHEN Lighting
![工厂优势]( "工厂优势")
Founded and located in Foshan, China, OTESHEN is a professional integrated LED lighting manufacturer integrating R&D, production and global sales.
We focus on mid-to-high-end residential & engineering lighting, covering magnetic track reading lights, anti-glare outdoor bulkhead lights, IP65 waterproof spike garden lights and other core series.
Our factory owns complete production lines and strict 48-hour aging testing for all finished goods. All products pass CE, BSCI and other international certifications, with stable factory-direct pricing without middlemen markup.
We provide flexible OEM & ODM customization, including personalized logo, packaging, voltage and optical parameters to fit local market demands.
We serve global wholesalers, engineering contractors, interior designers and brand distributors. We stick to the belief: There is always a beam of light waiting for you, and reliable service & win-win cooperation are our permanent pursuit.
Feel free to contact us for samples, catalogs and lighting project solutions.
