Product Highlights

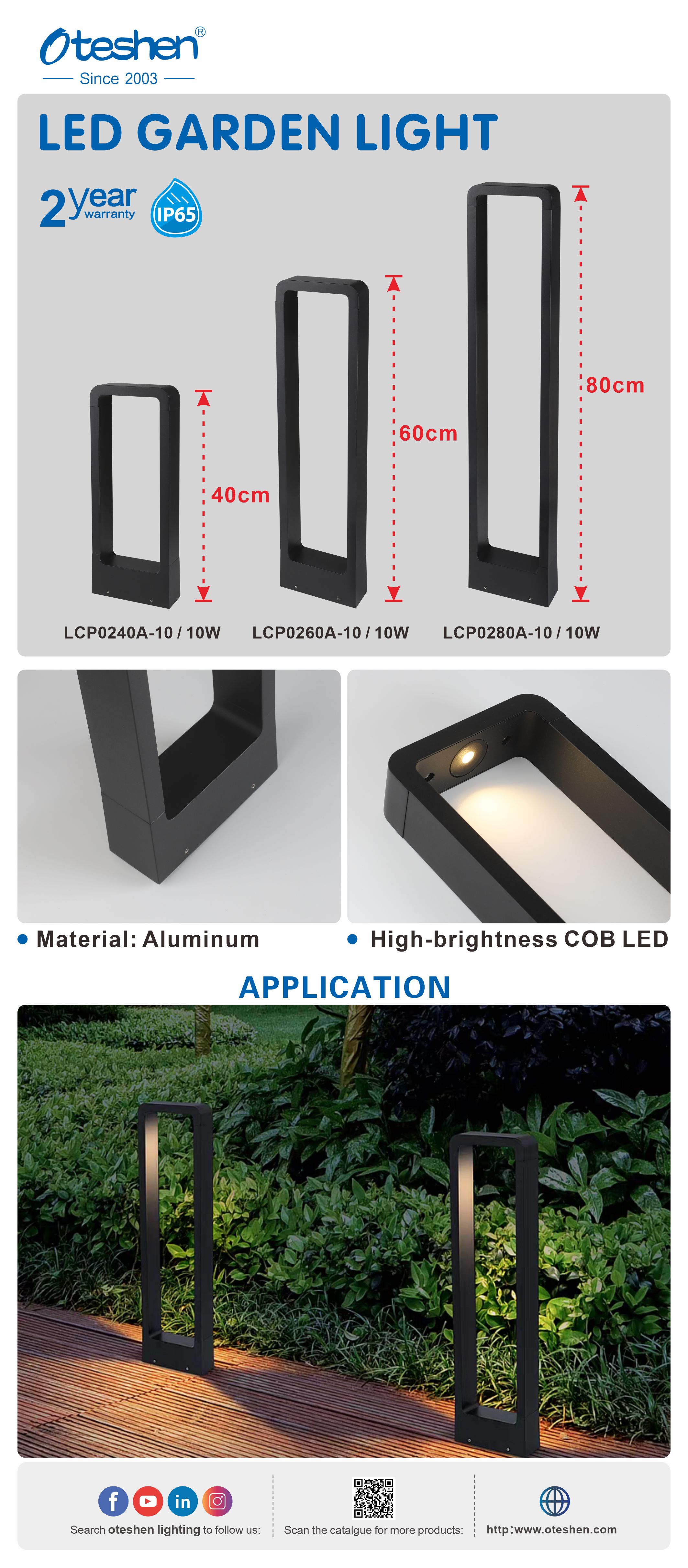

Three optional heights: 40cm / 60cm / 80cm, match small courtyard, large villa and resort landscape layout demands.

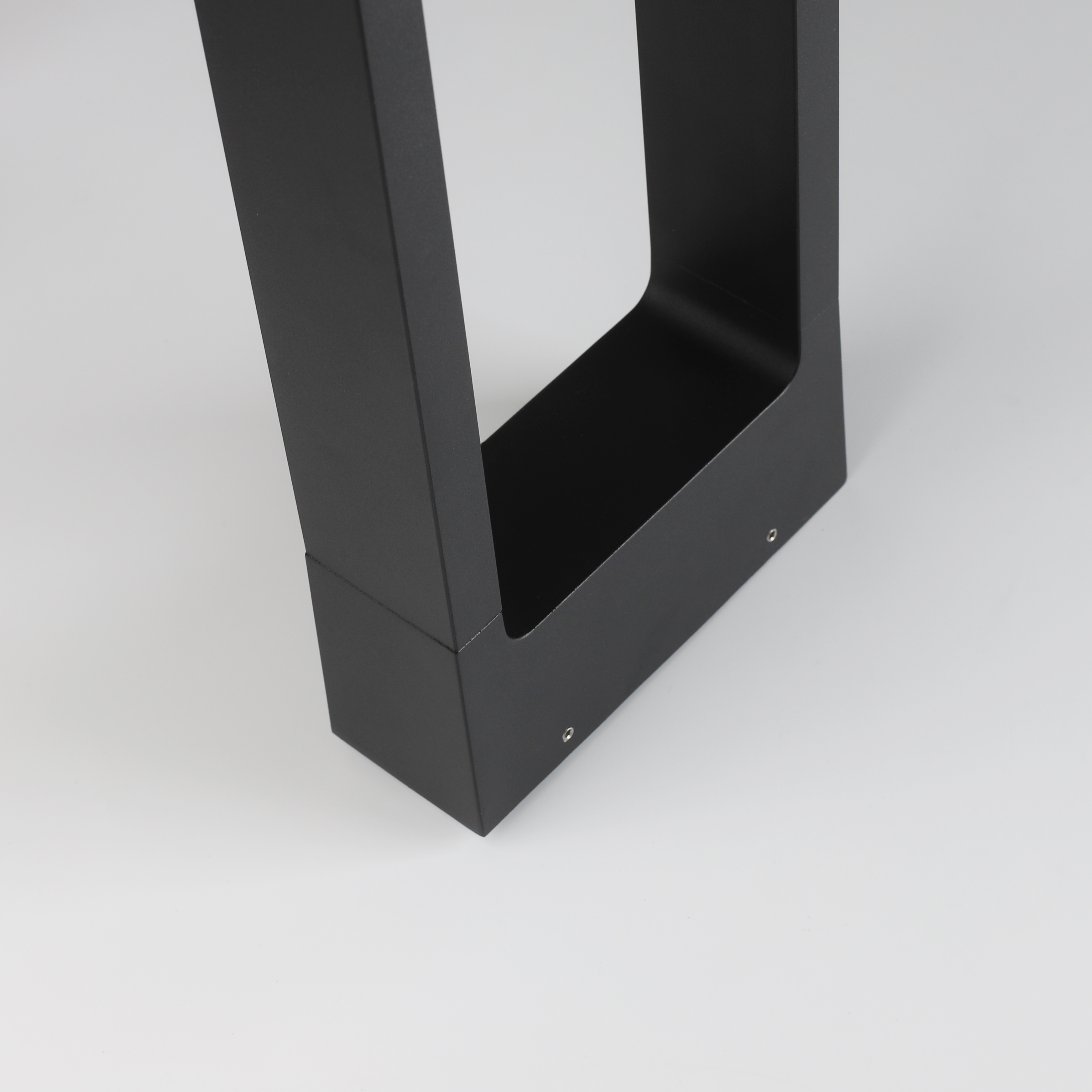

Premium integrated aluminum body, anti-rust, anti-corrosion and UV-resistant for long-term outdoor exposure.

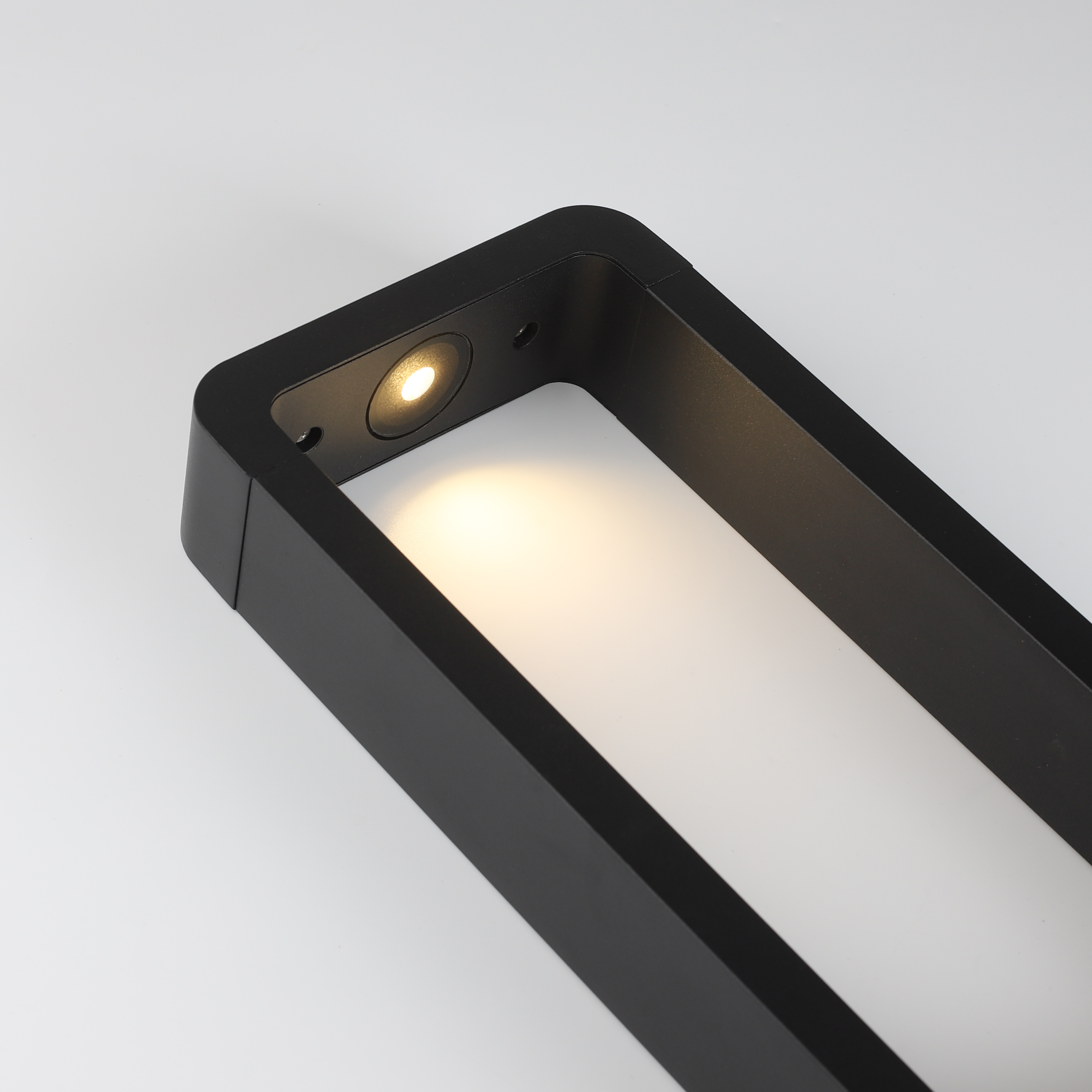

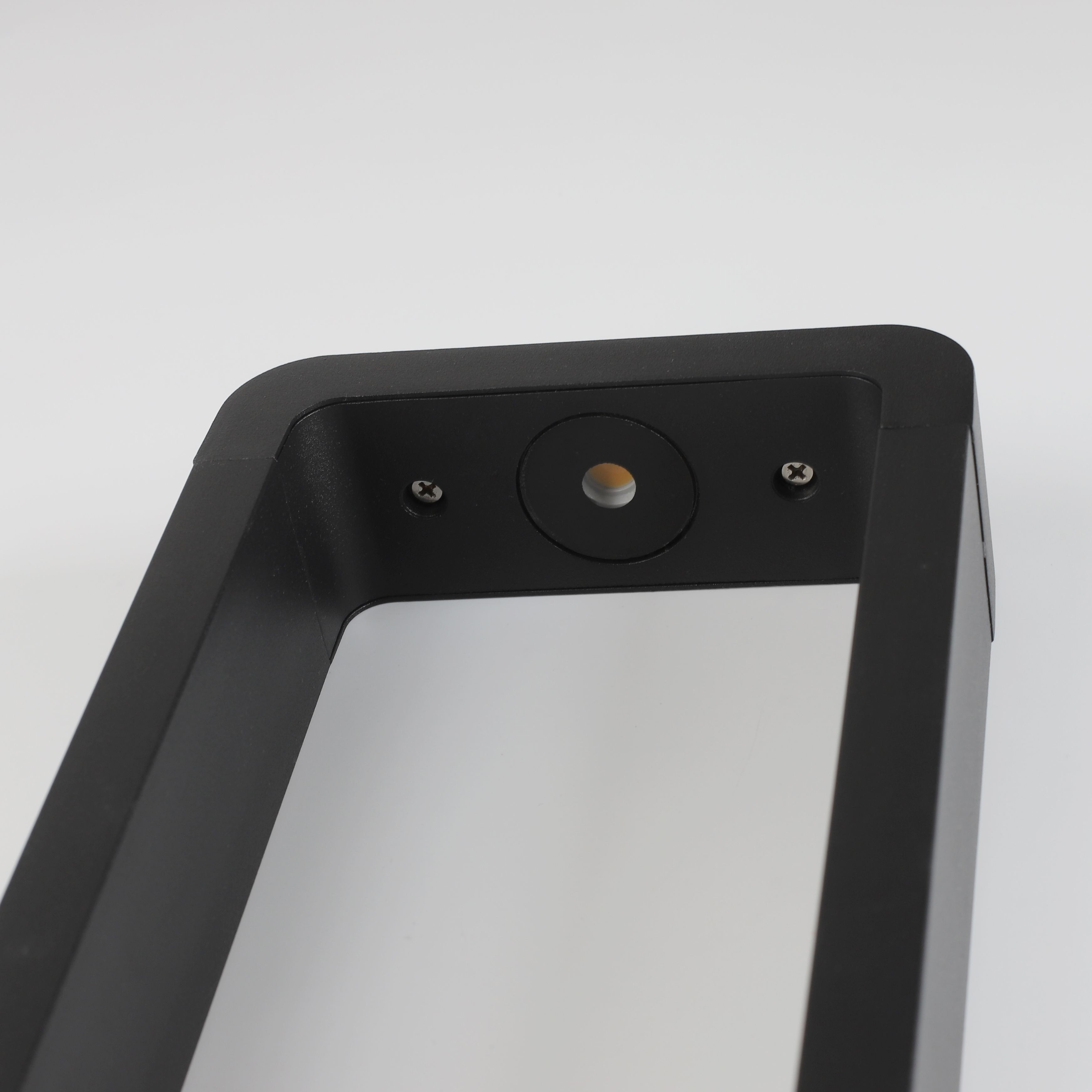

High-brightness COB LED light source, soft uniform glow without harsh glare, perfect for path atmosphere lighting.
IP65 professional waterproof & dustproof structure, stable performance in rainy, snowy and dusty outdoor environments.

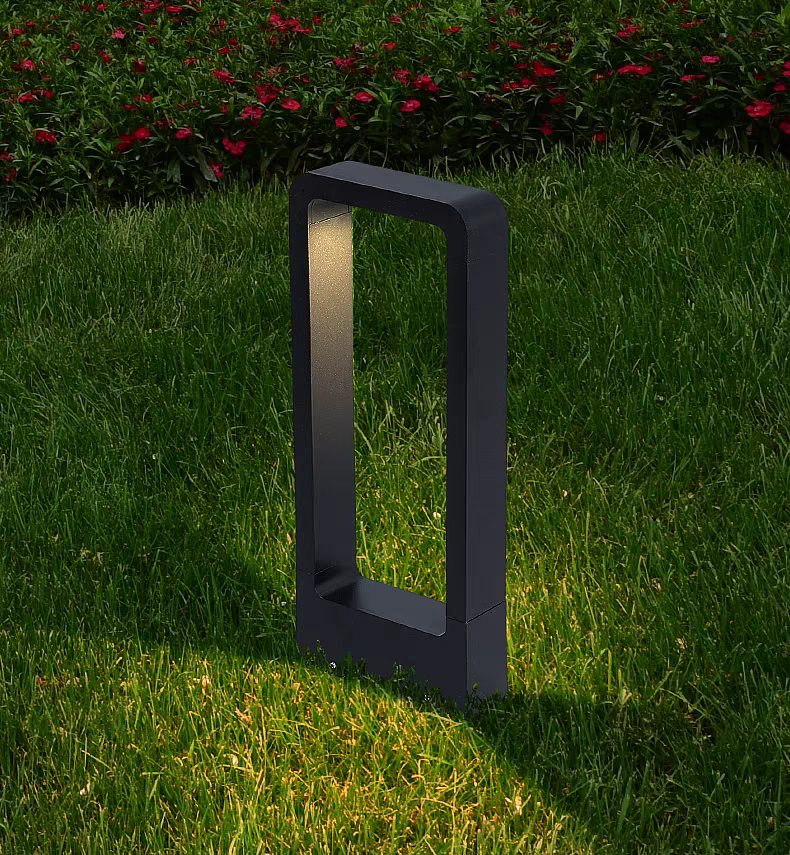

Minimalist hollow rectangular frame design, modern minimalist appearance fits villa, hotel and park landscape style.

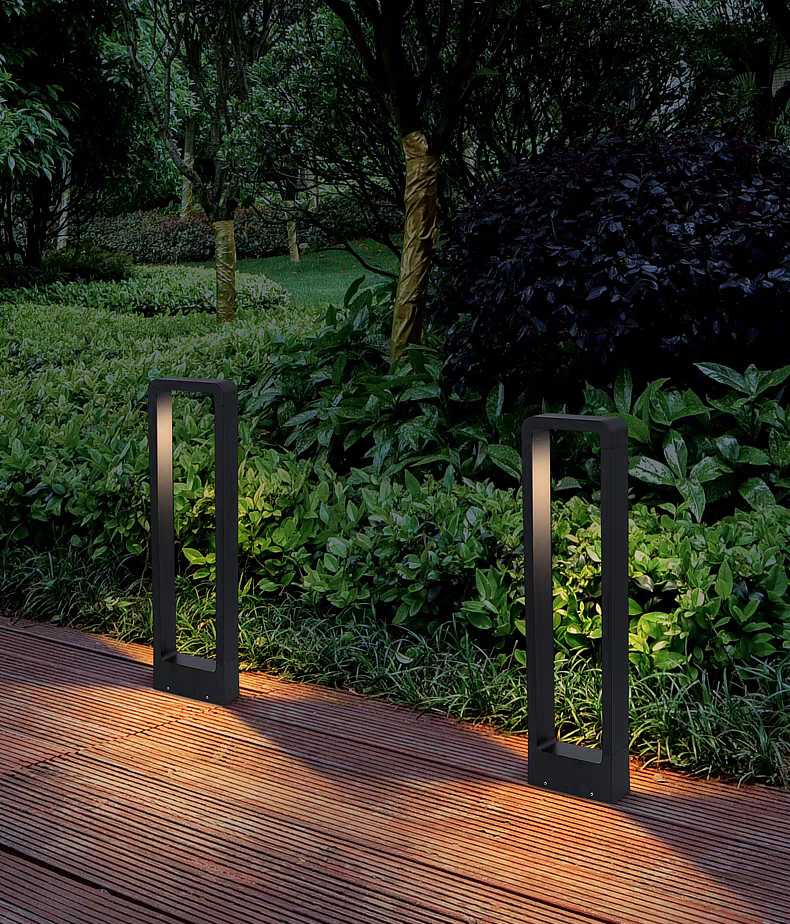

Residential:Villa courtyard walkway, garden shrub edge, terrace aisle, front yard landscape decorationCommercial:Resort pedestrian path, hotel outer landscape, community green belt, park sidewalk, club courtyard lighting
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm) | 131 lm | 133 lm | 135 lm | ||||||
| color&color temperature(K) | 3000K | 4000K | 6500K | ||||||
| CRI | ≥80 | ||||||||
| type of LED | COB LED | ||||||||
| beam angle | 60° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 10W | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 1750Vac/1min | ||||||||
| products Input parameter | 100V:168 mA 127V:141 mA 220V: 102 mA | ||||||||
| LED parameter | lighting efficiency | 13LM/W | |||||||
| chip quantity | 1PCS | ||||||||
| series-parallel way | 1B30C | ||||||||
| voltage | 90VDC | ||||||||
| current | 100mA | ||||||||
| driver parameter | input parameter | 100~240VAC,50/60Hz | |||||||
| power factor | 0.5 | ||||||||
| output parameter | 84-96VDC,100mA | ||||||||
| structure parameter | material | Cast-Aluminium | |||||||
| dimension | 160*55*400mm | ||||||||
| cut-out | / | ||||||||
| protection class | calss Ⅰ | ||||||||
| IP | IP65 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||
