12W high power uniform soft flood lighting, large-area even ceiling ambient lighting without dark zones.
3 CCT adjustable (3000K warm / 4200K neutral / 6500K cool), switch light tone freely for different scene demands.
48V safety low voltage magnetic absorption design, quick disassembly and free position adjustment on track rail.
Tuya WiFi & Bluetooth dual smart control, mobile APP dimming, timing and scene mode customization.
Compatible with 4 track installation modes: surface mount, embedded, recessed and wire hanging, fit all ceiling renovation styles.

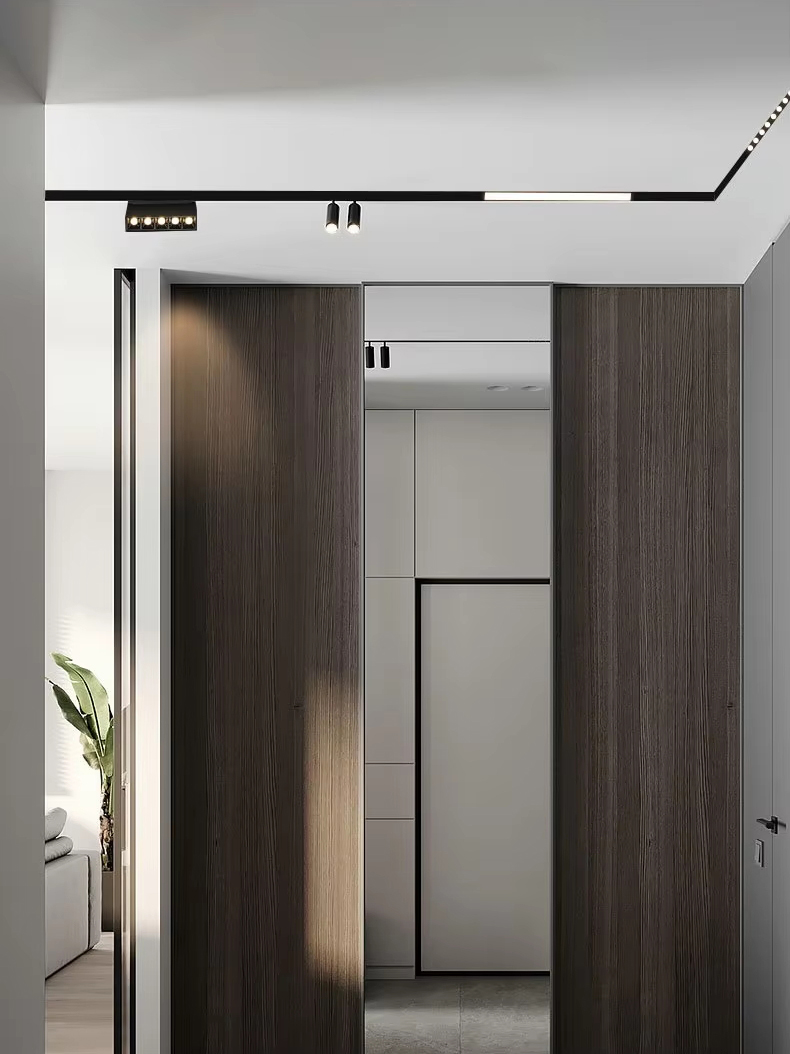

![H8a426864277648d799817b8d92be4485i_q看图王]( "H8a426864277648d799817b8d92be4485i_q看图王")
Application Scenarios

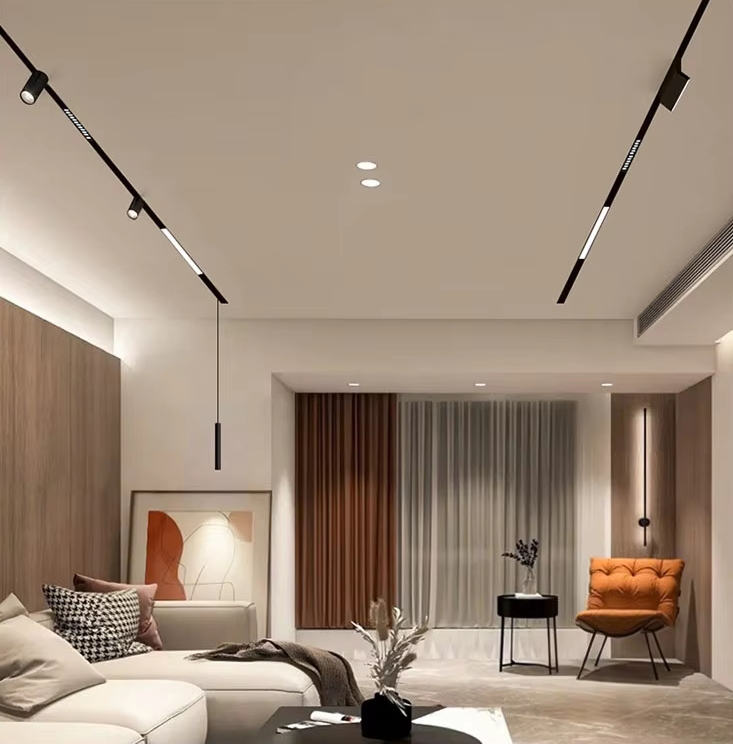

Residential：Living room whole-house ambient lighting, dining room background, bedroom main atmosphere light
Commercial：Showroom general lighting, clothing store basic ambient light, office aisle fill light
performance
parameter | lamp | warm white | natural white | cool white |
lumen(BK) (lm) | 610 | 612 | 615 |
color temperature（K) | 3000K | 4200K | 6500K |
CRI | ≥80 |
type of LED | SMD |
beam angle | 106° |
decay rate (%) | Less than 3% over 1000 hours. |
total power (W) | 12W±10% |
lifespan (Hrs) | ≥30000Hrs |
high voltage testing | 500Vac/1min |
LED
parameter | lighting efficiency | 50 lm/W |
chip quantity | 30PCS |
series-parallel way | 15C2B |
voltage | 48V |
current | 250mA |
driver
parameter | input parameter | 48VDC，50/60Hz |
power factor | >0.5 |
output parameter | 250mA±5% |
structure
parameter | material | Aluminium |
dimension | 300X22X43mm |
cut-out | / |
protection class | III级 |
IP | IP20 |
environment
parameter | application | Hotels, home lighting, entertainment venues, shopping malls, office buildings |
operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. |
storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. |
