LCG2710-1、LCG2610A-1、LCG2610B-1、LCG2810B-1、LCG2810A-1
Oteshen
Aluminium
20
WHITE+BLACK
calss II
| SKU: | |
|---|---|
| Availability: | |
Ultra Mini 22mm Cutout Tiny Body Design
Only 22mm mounting cutout, ultra-compact mini size, perfectly fits thin cabinet panels, narrow wardrobe layers, small display niches where regular spotlights cannot be installed.
CRI90 High Color Rendering Index
Professional CRI90 high CRI LED chip, truly restore the original color of clothes, wine bottles, crafts and artworks, avoid color distortion, ideal for high-end furniture and boutique display.
25° Narrow Focus Beam Angle
25° concentrated narrow beam, gather light on exhibits to create layered display atmosphere, highlight product texture without messy light overflow.

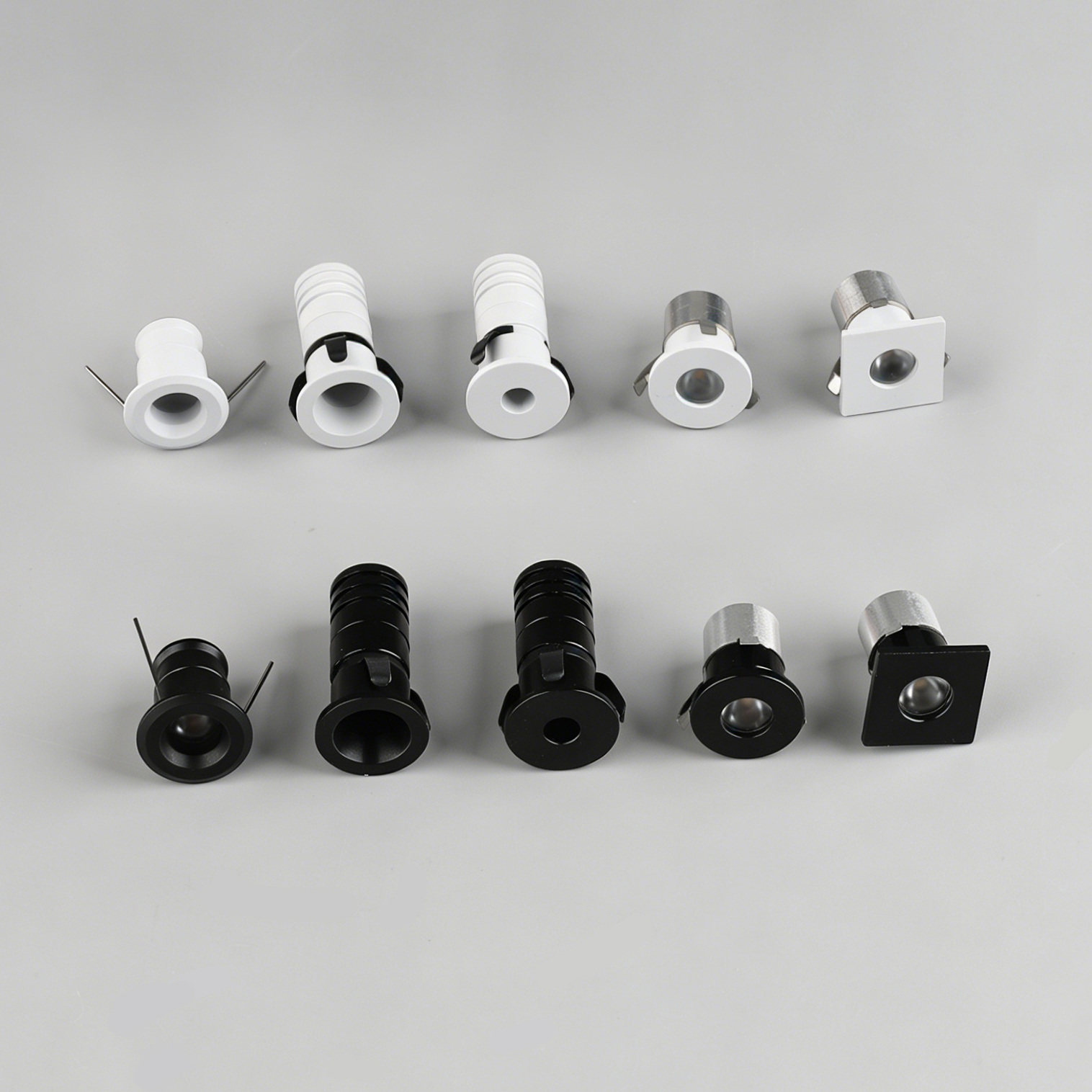

Multiple Shape & Color Options For Matching Cabinets
5 full models in this series, with round and square faceplate options, matte black & matte white aluminum casing, freely match modern, minimalist, light luxury custom cabinet styles.
Easy Spring Clip Recessed Installation
Built-in spring buckle structure, one-step embedded installation, quick disassembly for maintenance; full aluminum lamp body brings excellent heat dissipation to extend LED service life.
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen(lm)BK | 79 lm | 84 lm | 89 lm | ||||||
| lumen(lm)WH | 93 lm | 98 lm | 103 lm | ||||||
| temperature(K) | 3000K | 4000K | 6500K | ||||||
| CRI | ≥90 | ||||||||
| type of LED | SMD LED | ||||||||
| beam angle | 27° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 1W | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 1500Vac/1min | ||||||||
| products Input parameter | 220V:14mA 127V:17mA 100V:20mA | ||||||||
| LED parameter | lighting efficiency | BK:59LM/W WH:70LM/W | |||||||
| chip quantity | 1PCS | ||||||||
| series-parallel way | 1B1C | ||||||||
| voltage | 3V | ||||||||
| current | 300MA±5 | ||||||||
| driver parameter | input parameter | 85~265VAC,50/60Hz | |||||||
| power factor | >0.5 | ||||||||
| output parameter | 2-4V 300MA±5 | ||||||||
| structure parameter | material | Aluminium | |||||||
| dimension | φ22*22mm | ||||||||
| cut-out | φ18mm | ||||||||
| protection class | calss II | ||||||||
| IP | IP20 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||

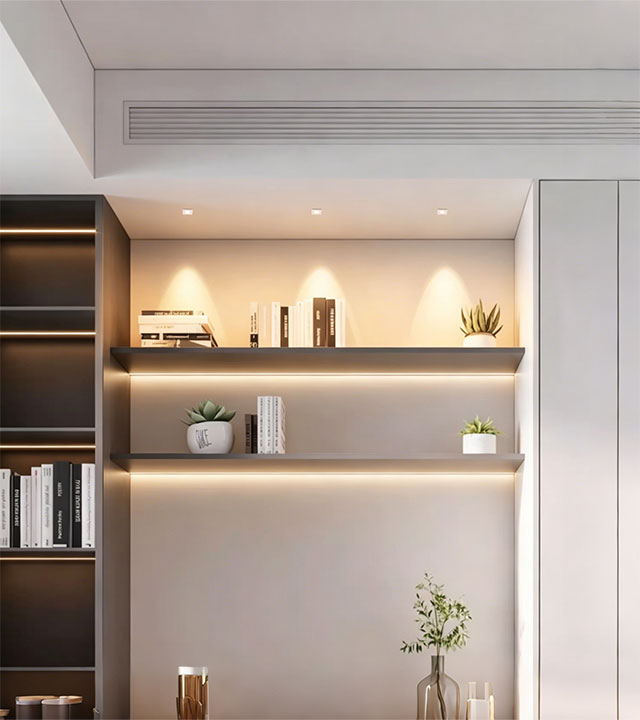

Custom furniture: Wardrobe, wine cabinet, shoe cabinet, TV background storage shelf, cloakroom display layer
Commercial display: Jewelry showcase, craft exhibition cabinet, retail boutique shelf, museum miniature display area
Home decoration: Study bookcase, decorative niche, artwork wall small accent lighting
Are you sourcing ultra-small 1W CRI90 mini cabinet spotlights for furniture factory bulk order or display project renovation? We support customized beam angle, CCT and packaging, free product catalog and sample testing are available on request. Message us now to get factory direct wholesale price and complete technical datasheet!
