Availability: | |
---|---|
performance parameter | lamp | warm white | natural white | cool white | |||||
lumen (lm) | 2800 | 2800 | 2800 | ||||||
color temperature(K) | 3000K | 4200K | 6500K | ||||||
CRI | ≥80 | ||||||||
type of LED | SMD | ||||||||
beam angle | 113 | ||||||||
decay rate (%) | 1000 hours no more than 3% | ||||||||
total power (W) | 40W | ||||||||
lifespan (Hrs) | ≥30000Hrs | ||||||||
high voltage testing | 500Vac/1min | ||||||||
LED parameter | lighting efficiency | 71lm/W | |||||||
chip quantity | 48 | ||||||||
series-parallel way | 22C4B | ||||||||
voltage | 66V | ||||||||
current | 600mA | ||||||||
driver parameter | input parameter | 127~265VAC,50/60Hz | |||||||
power factor | >0.5 | ||||||||
output parameter | 50-80V | ||||||||
structure parameter | material | aluminium | |||||||
dimension | 620X620X34mm | ||||||||
cut-out | 605X605mm | ||||||||
protection class | calss II | ||||||||
IP | IP20 | ||||||||
environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. |

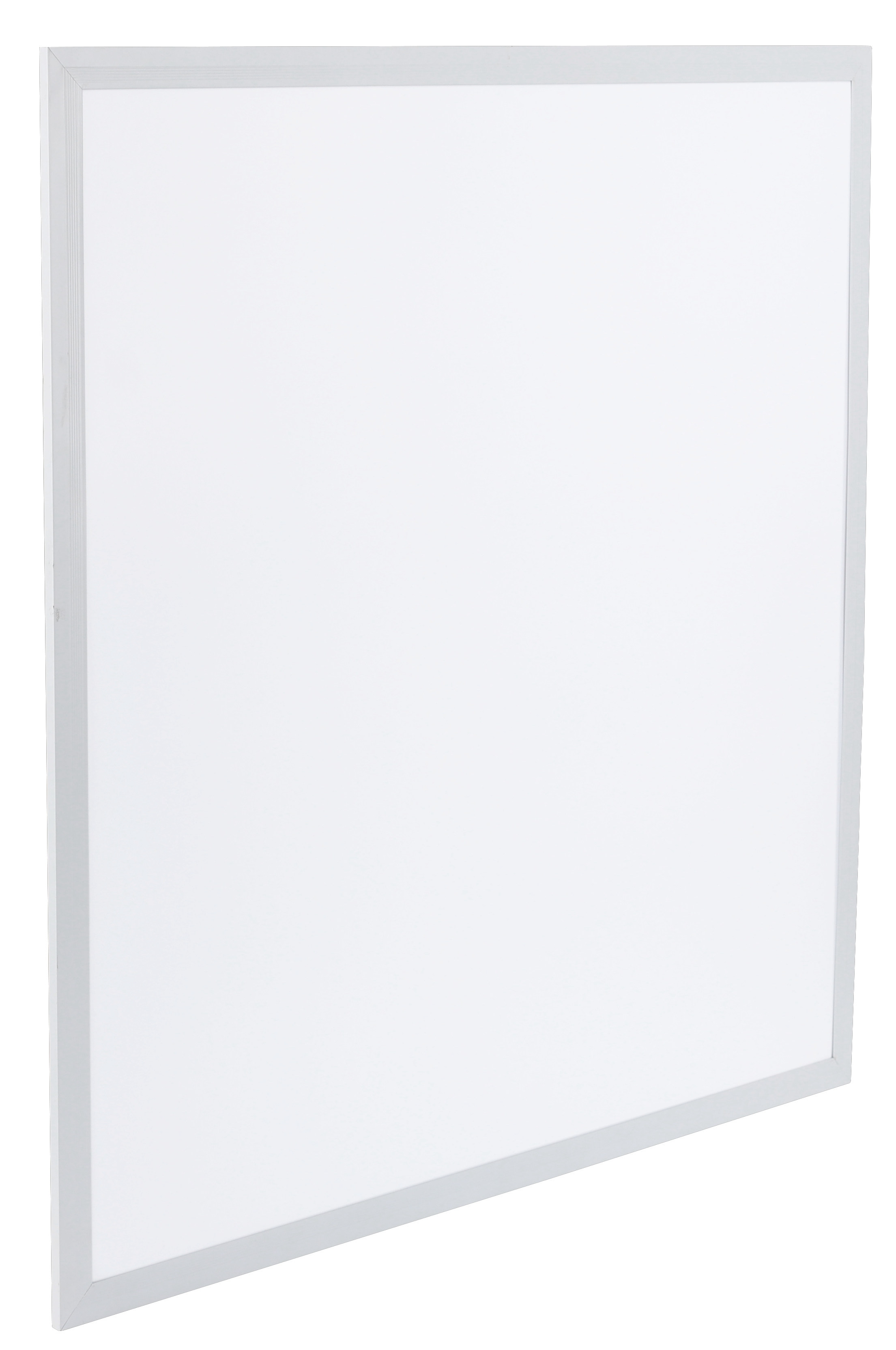

Easy to install - With a high quality internal driver, this lightweight LED flat panel light can be easily mounted on surfaces, flat surfaces and suspensions without the need for any mounting kit. Its unique hook design also allows you to easily mount it on grid ceilings and rock climbers.
Superior illumination - this 40 watt LED panel light provides 2800 lumens of ultra-high brightness and ultra-soft light across the full spectrum, with the latest generation of light-guide technology for stress-free, glare-free illumination. The edge-lit design saves up to 85% of energy consumption with a high colour rendering index (> 90).
Widely available - This slim square LED panel light is designed for residential and commercial suspended grid ceilings. No flicker or buzz for a more efficient working environment. Suitable for use in homes, kitchens, laundry rooms, bathrooms, basements, restaurants, hotels, workshops, offices, supermarkets, classrooms and factories.
Quality guaranteed - UL and DLC certified, this square LED panel light delivers quality, performance and savings. Each LED skylight offers long-lasting safety and reliability, eliminating any defects in materials and workmanship.
Oteshen was established in 1984 with a commitment to becoming a professional provider of LED lighting solutions to meet market demands and create value for customers.
With around 300 employees and 40 IPD system production lines, Oteshen has its own excellent R&D team, lean production management system, strict quality assurance system, and professional laboratory.
The team consists of more than 40 professional engineers, and there is a dedicated 1500 cubic meter R&D facility equipped with professional laboratories.
