LXT0420-4 LXT0420P-4
Oteshen
Aluminium
20
WHITE+BLACK
calss II
| SKU: | |
|---|---|
| Availability: | |

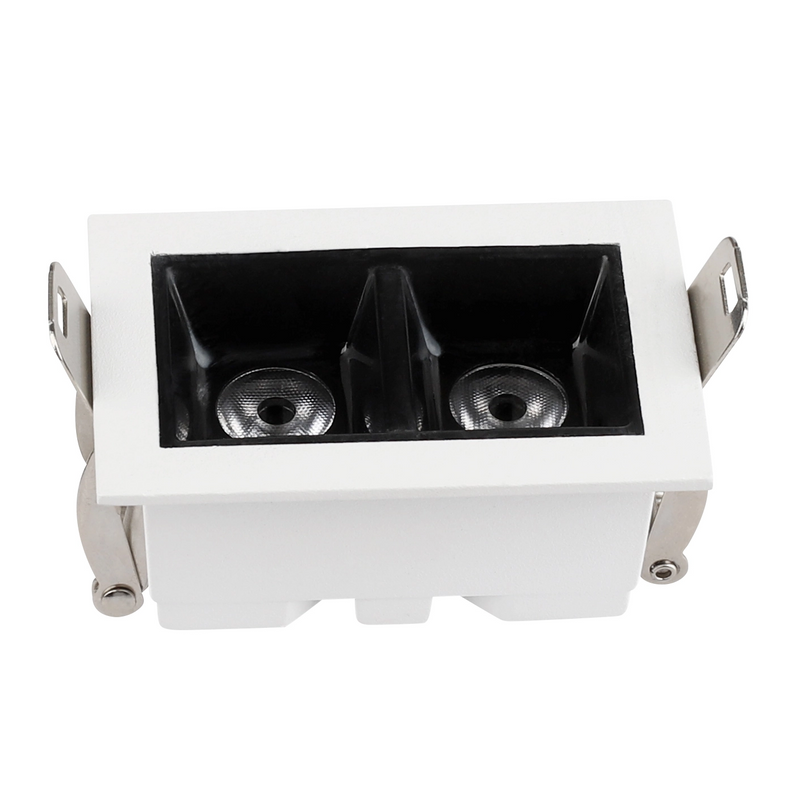

Dual 2-Lamp Compact Mini Body For Narrow Space Layout
Compact two-head integrated structure with only 4W low power, perfectly fit narrow corridor, bedside accent, small shelf and cabinet display without over-bright light pollution.
Deep Honeycomb Recessed Anti-Glare Optical Cavity
Deep concave honeycomb inner structure blocks direct harsh glare, delivers soft uniform light, effectively eliminate uncomfortable reflection when looking upward at ceiling lamp.
One-Piece Die-Cast Aluminum Whole Lamp Body
Integrated aluminum molding brings excellent heat dissipation, slow down light decay and extend LED service life for long-term daily indoor use.
Dual Spring Clip Concealed Recessed Installation
Two side metal spring buckles for quick embedding into gypsum ceiling, flush mounted with ceiling surface to keep neat minimalist interior visual effect.
Multi-Scene Mini Accent Lighting Solution
Small-size double head grille light ideal for residential aisle, bedroom wall wash, study book shelf, clothing boutique and cosmetic shop local accent lighting.
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm) | 210 lm | 215 lm | 220 lm | ||||||
| lumen (lm) | 220 lm | 225 lm | 230 lm | ||||||
| color&color temperature(K) | 3000K | 4000K | 6500K | ||||||
| CRI | ≥90 | ||||||||
| type of LED | SMD | ||||||||
| beam angle | 24° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 4W | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 1750Vac/1min | ||||||||
| products Input parameter | 100V: 70mA 127V:57mA 220V: 41mA | ||||||||
| LED parameter | lighting efficiency | 49LM/W | |||||||
| chip quantity | 2PCS | ||||||||
| series-parallel way | 2C1B | ||||||||
| voltage | 18VDC | ||||||||
| current | 200mA | ||||||||
| driver parameter | input parameter | 100~240VAC,50/60Hz | |||||||
| power factor | 0.5 | ||||||||
| output parameter | 12-24VDC,200mA | ||||||||
| structure parameter | material | Aluminium | |||||||
| dimension | 77*45*43mm | ||||||||
| cut-out | 65*38mm | ||||||||
| protection class | calss II | ||||||||
| IP | IP20 | ||||||||
Residential: Bedroom aisle, bedside wall accent, study storage shelf, small apartment no-main-light decorationCommercial: Clothing store display shelf, beauty boutique accent lighting, office small partition atmosphere light
