LDC0120 Series Nylon LED Spike Light IP65 Outdoor Landscape Tree Spotlight
![LDC0120 LDC0120B Nylon LED Spike Light spec sheet, 5W 7W IP65 outdoor landscape spike light, 30 degree narrow beam, 325/455lm CRI≥80, long ground spike mount & flat base wall mount 2 styles, 2 years warranty]( "LDC0120 LDC0120B Nylon LED Spike Light spec sheet, 5W 7W IP65 outdoor landscape spike light, 30 degree narrow beam, 325/455lm CRI≥80, long ground spike mount & flat base wall mount 2 styles, 2 years warranty")
![LDC0120 LDC0120B Nylon LED Spike Light spec sheet, 5W 7W IP65 outdoor landscape spike light, 30 degree narrow beam, 325/455lm CRI≥80, long ground spike mount & flat base wall mount 2 styles, 2 years warranty]( "LDC0120 LDC0120B Nylon LED Spike Light spec sheet, 5W 7W IP65 outdoor landscape spike light, 30 degree narrow beam, 325/455lm CRI≥80, long ground spike mount & flat base wall mount 2 styles, 2 years warranty")
This nylon LED spike light completes our multi-material LED spike light family, covering aluminum die-cast, PC plastic and nylon housing versions, meeting different budget and scene demands for landscape contractors and wholesalers.
Two Interchangeable Mount Versions

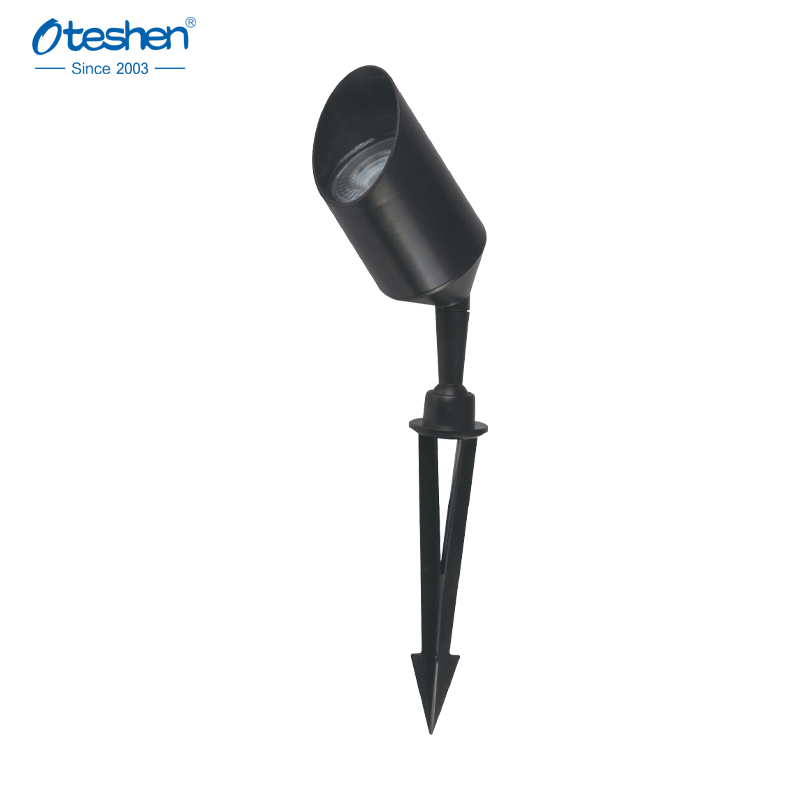

Long Ground Spike Model (LDC0120-5 / LDC0120-7)
346mm elongated nylon spike stake, easy to insert deep into lawn, flower beds and soft soil; compact lamp head with full angle rotation, ideal for tall tree uplighting. Dimension: Φ60×346mm.

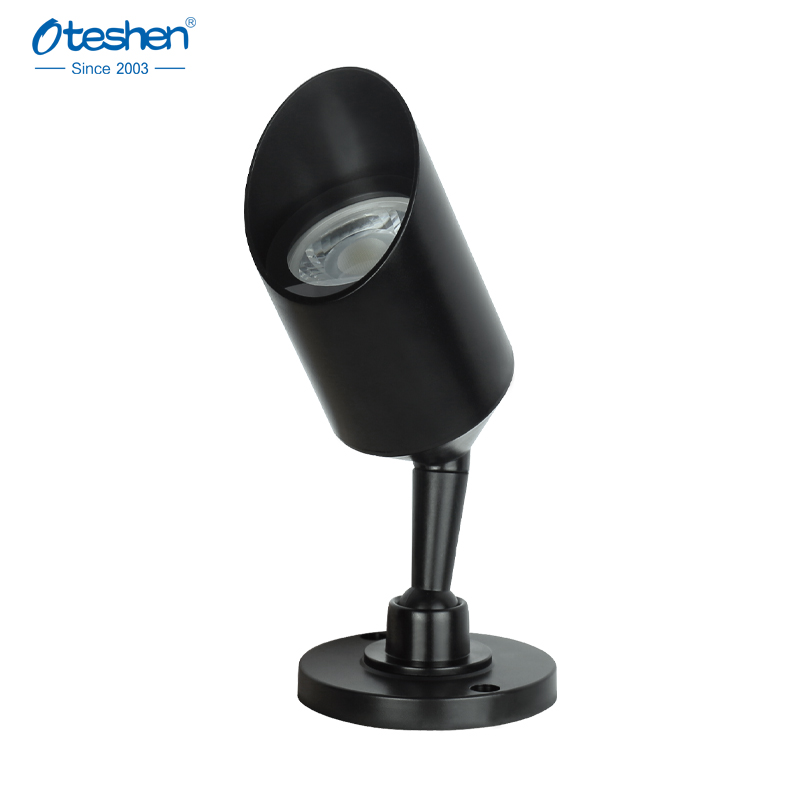

Flat Base Dual-Use Model (LDC0120B-5 / LDC0120B-7)
Round flat bottom base, dual-use for ground placement and wall fixing, no digging required for terraces, stone pavement and building facades. Dimension: Φ60×81×198mm.
Core Product Advantages
Lightweight Nylon Housing
High-strength engineering nylon is lighter than aluminum, anti-rust, anti-corrosion against soil acid & rainwater, anti-UV coating prevents cracking under long-term outdoor exposure, lower cost than aluminum spike lights for large engineering projects.
30° Narrow Focus Beam Lens
30-degree narrow beam concentrates light vertically on tree trunks, highlights tree texture and layering; different from 40° wide-beam aluminum LED spike lights for lawn washing.
Dual Power Selection
5W (325LM): Low power for small saplings, courtyard miniature trees
7W (455LM): Medium brightness for medium & large trees, park green belts
IP65 All-Weather Waterproof
Fully sealed structure, dustproof and splash-proof, stable operation all year round outdoors.
Unified Standard With Full LED Spike Light Series
All models feature CRI≥80 high color rendering, adjustable lamp head, 2-year manufacturer warranty, compatible to match aluminum spike lights, PC tree strap spike lights for one-stop garden lighting projects.
| Item | Long Spike Version LDC0120-5 / LDC0120-7 | Flat Base Version LDC0120B-5 / LDC0120B-7 |
| Power | 5W / 7W | 5W / 7W |
| Luminous Flux | 325LM (5W) / 455LM (7W) | 325LM (5W) / 455LM (7W) |
| Beam Angle | 30° Narrow Focus Beam | 30° Narrow Focus Beam |
| CRI | ≥80 | ≥80 |
| Waterproof Grade | IP65 | IP65 |
| Main Material | Black Engineering Nylon | Black Engineering Nylon |
| Overall Dimension | Φ60×346mm | Φ60×81×198mm |
| Installation | Deep ground spike insertion | Ground placement / wall mounting dual-use |
| Lamp Head Adjustment | Full multi-angle tilt rotation | Full multi-angle tilt rotation |
| Warranty | 2 Years | 2 Years |

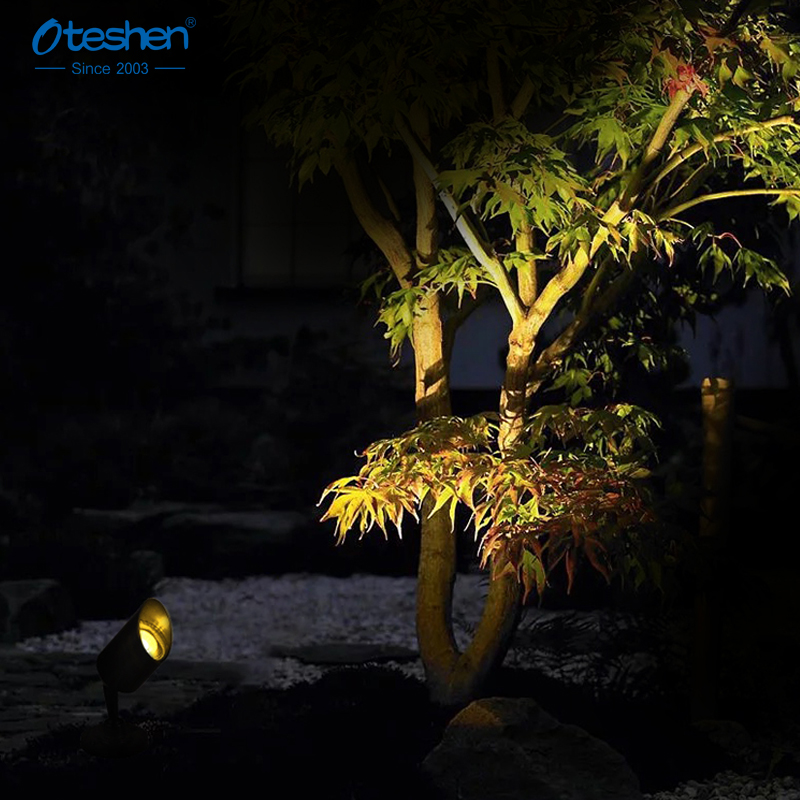

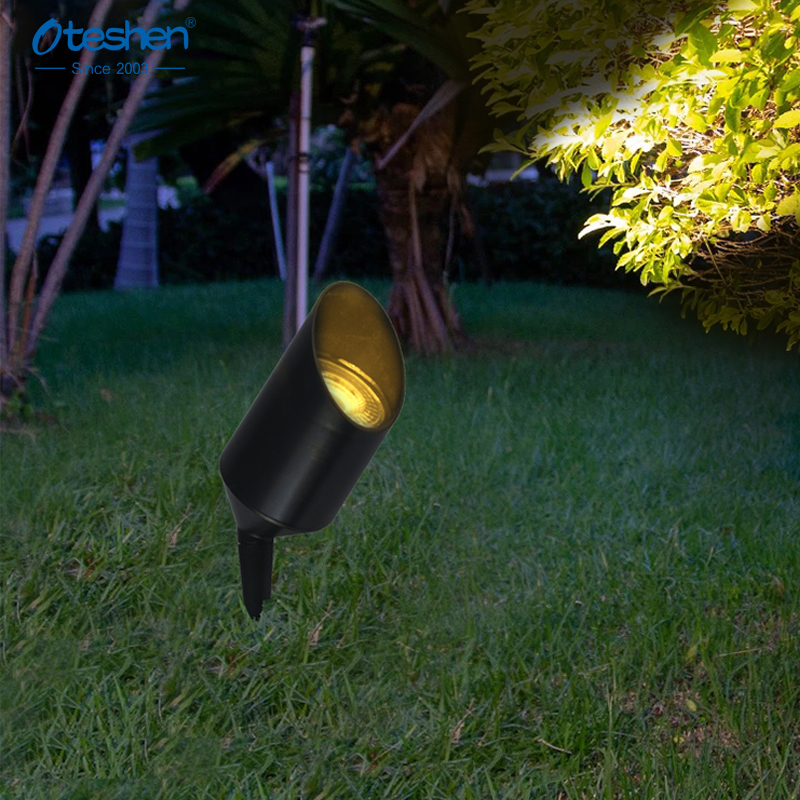

Wide Application Scenarios
Match with aluminum ground/wall spike lights, long pole spike lights and tree strap spike lights for full garden layout: villa private garden trees, municipal park arbor, resort scenic landscape, community green belt, botanical garden artistic tree uplighting.
