LBD6820CD-9
Oteshen
Aluminum+PC
20
WHITE+BLACK
calss II
| SKU: | |
|---|---|
| Availability: | |

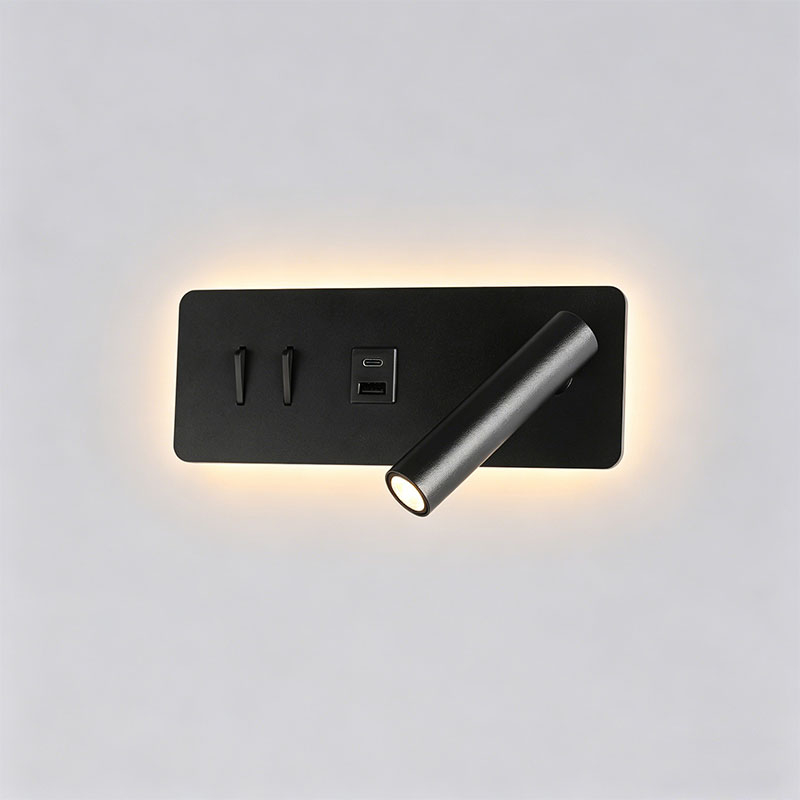

Dual Independent Light Source & Separate Control Switches
Two separate light systems: front focused reading spotlight and soft back ambient glow. Two independent toggle switches on the base, users can turn on reading light only, backlight only, or both lights together to satisfy reading, resting and atmosphere lighting demands.
Built-in USB + Type-C Dual Charging Ports, 5V 2A Fast Output
Integrated dual charging interface on the wall base, 5V 2A stable output, supports charging mobile phones, wireless earphones, tablets simultaneously without extra power strip. This practical design greatly improves guest experience for hotel and homestay projects.

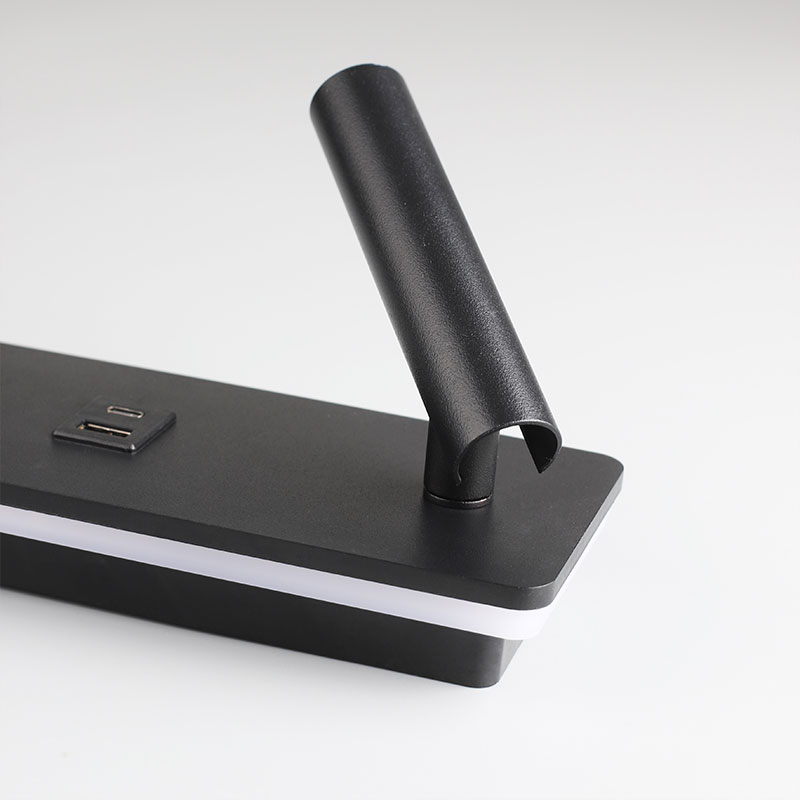

350° Horizontal & 90° Vertical Rotatable Reading Lamp Head
The reading tube can rotate freely in all directions, adjust light beam to any comfortable reading angle, eliminate uncomfortable shadows and glare, protect eyes during long-time bedtime reading.

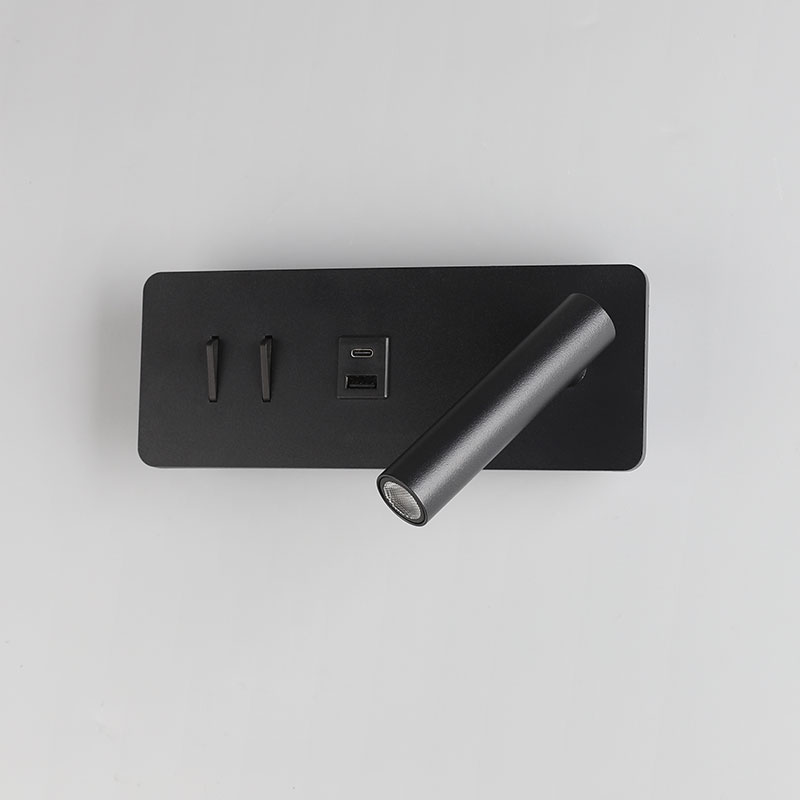

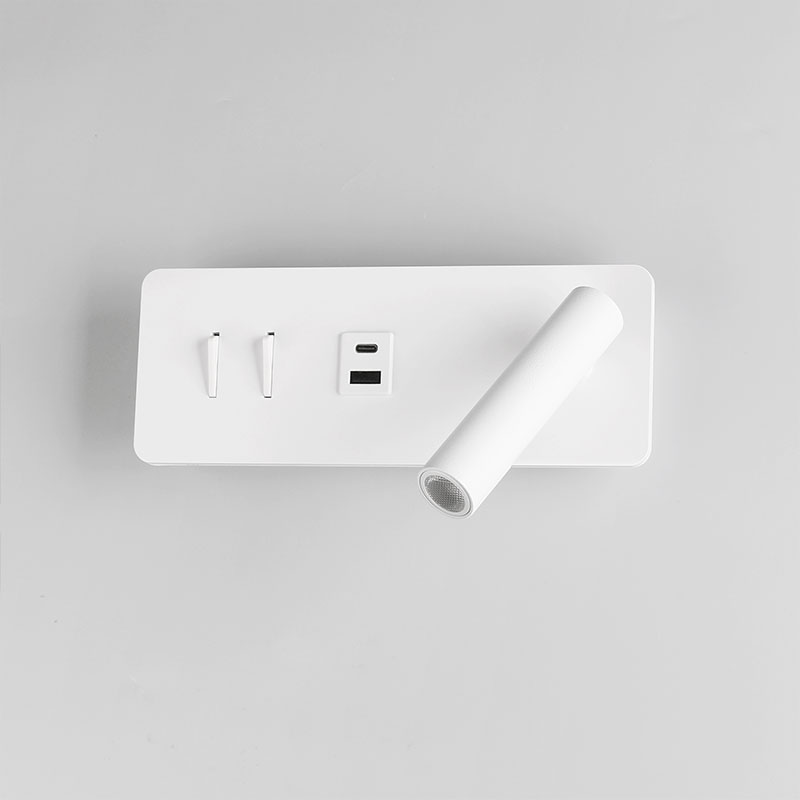

Premium Full Aluminum Lamp Body, Two Classic Color Options
Integrated die-cast aluminum structure with excellent heat dissipation performance to extend LED service life. Matte scratch-resistant surface available in black and white, perfectly match modern, minimalist, nordic bedroom and hotel interior styles.
9W Low Power Energy Saving Eye-Care Light
Total 9W low power consumption, flicker-free uniform soft light, energy-saving for long-term hotel daily operation while bringing gentle eye-protective illumination.

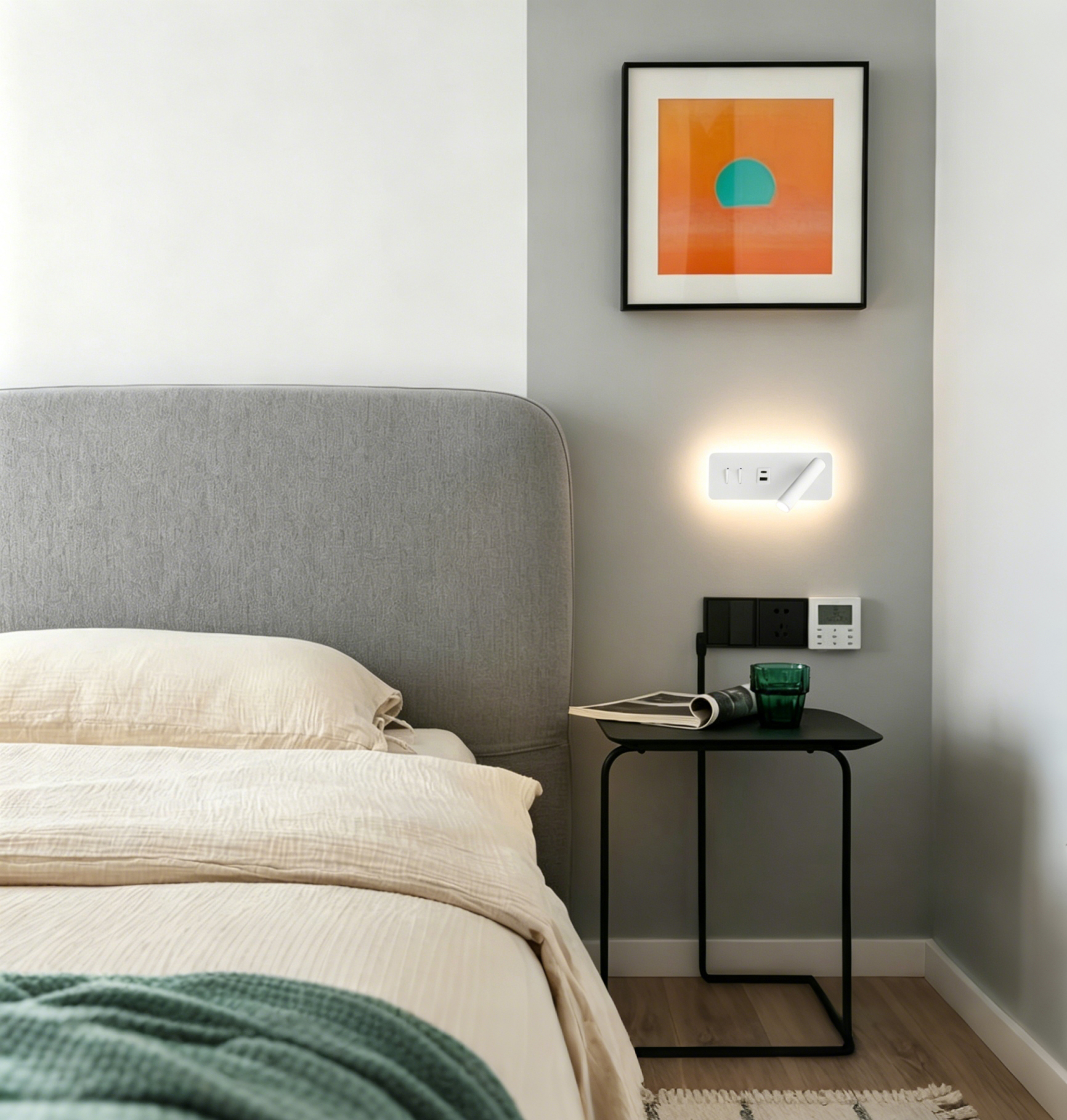

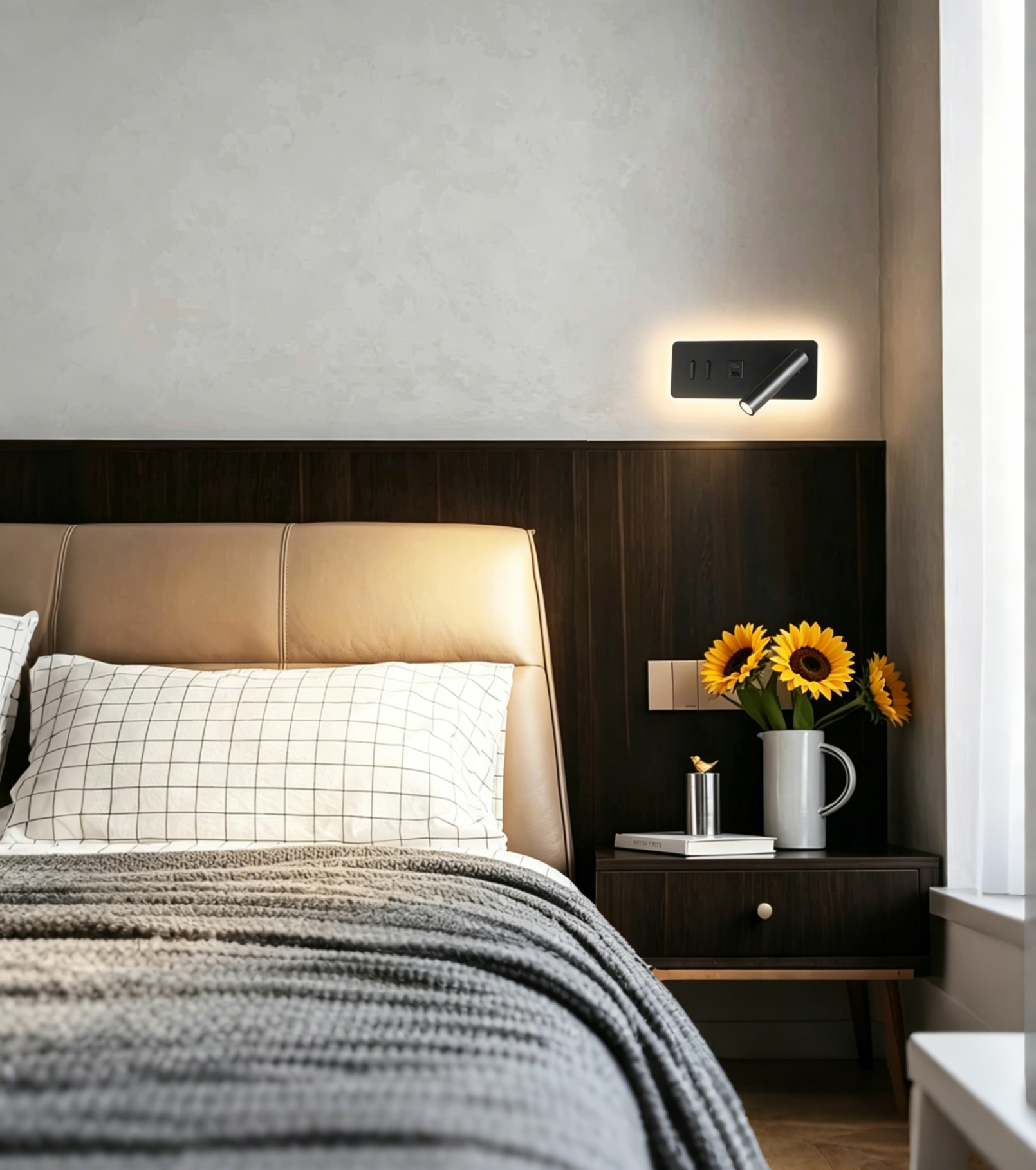

Residential space: Master bedroom, apartment bedside, reading corner, guest room
Hospitality engineering: Hotel guest room, boutique homestay, resort apartment, serviced apartment, motel

| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm)BK | 320lm | 325lm | 330lm | ||||||
| lumen (lm) | 490lm | 495lm | 500lm | ||||||
| color&color temperature(K) | 3000K | 4000K | 6500K | ||||||
| CRI | ≥80 | ||||||||
| type of LED | SMD LED | ||||||||
| beam angle | 33° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 9W±10% | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 3750Vac/1min | ||||||||
| products Input parameter | 100V:149mA 127V:122mA 220V:86mA | ||||||||
| LED parameter | lighting efficiency | 51LM/W(BK)/35LM/W(WH) | |||||||
| chip quantity | Lamp holder:1PCS Lamp Body: 60PCS | ||||||||
| series-parallel way | Lamp holder:1C1B Lamp Body: 6C10B | ||||||||
| voltage | Lamp holder:3V Lamp Body:24V | ||||||||
| current | Lamp holder:340mA Lamp Body:250mA | ||||||||
| driver parameter | input parameter | 100~240VAC,50/60Hz | |||||||
| power factor | ≥0.5 | ||||||||
| output parameter | Lamp holder:340mA±3% 3VLamp Body:250mA±5% 24V | ||||||||
| structure parameter | material | Aluminum + PC | |||||||
| dimension | 211*80*72mm | ||||||||
| cut-out | / | ||||||||
| protection class | calss II | ||||||||
| IP | IP20 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||
Are you sourcing functional dual-charging bedside reading wall lamps for hotel renovation or bulk wholesale? We support customized color temperature, shell color and export packaging, free product catalog and sample testing are available on request. Message us right now to get factory direct wholesale price and complete technical parameter sheet!

Founded and located in Foshan, China, OTESHEN is a professional integrated LED lighting manufacturer integrating R&D, production and global sales.
We focus on mid-to-high-end residential & engineering lighting, covering magnetic track reading lights, anti-glare outdoor bulkhead lights, IP65 waterproof spike garden lights and other core series.
Our factory owns complete production lines and strict 48-hour aging testing for all finished goods. All products pass CE, BSCI and other international certifications, with stable factory-direct pricing without middlemen markup.
We provide flexible OEM & ODM customization, including personalized logo, packaging, voltage and optical parameters to fit local market demands.
We serve global wholesalers, engineering contractors, interior designers and brand distributors. We stick to the belief: There is always a beam of light waiting for you, and reliable service & win-win cooperation are our permanent pursuit.
Feel free to contact us for samples, catalogs and lighting project solutions.
