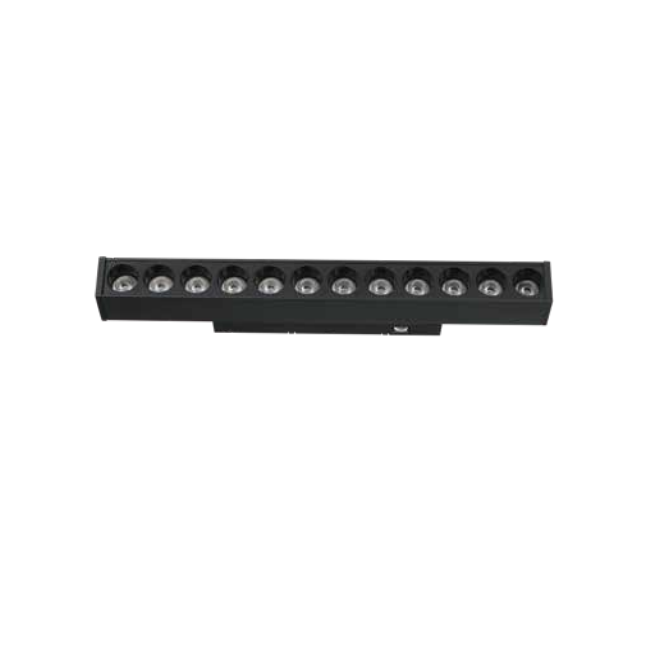

ECO magnetic LED grille light TX0341D-12 12W 900lm 36 degree 10 chips

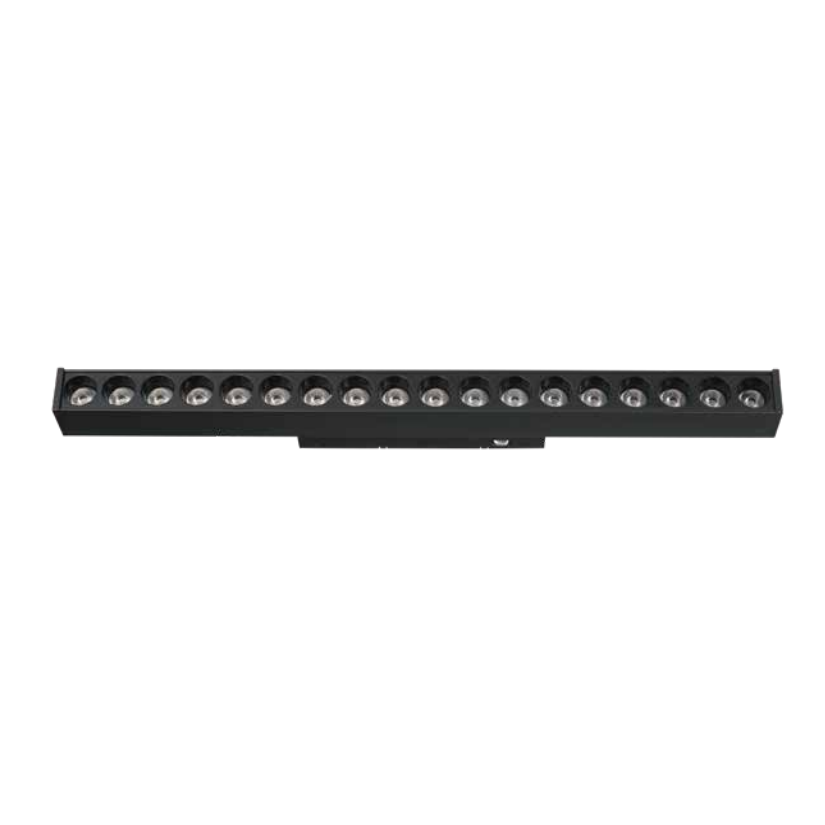

ECO magnetic LED grille light TX0351D-18 18W 1350lm 36 degree 15 chips

ECO Magnetic LED Grille Light 36° 6W-24W

The ECO series magnetic LED grille light offers cost-effective 36° narrow beam accent lighting. Available in 6W (450lm, 5 chips), 12W (900lm, 10 chips), 18W (1350lm, 15 chips) and 24W (1800lm, 20 chips) options. Multi-chip grille design for uniform focused illumination. AL+ABS housing, 48V safe low-voltage system, CRI≥80. Magnetic track installation for easy positioning. Ideal for budget-friendly retail displays, showrooms and commercial accent lighting. 2-year warranty.

Model:
TX0331D-6 TX0341D-12 TX0351D-18 TX0361D-24
Brand:
Oteshen
Material:
AL+ABS
Color :
White / Black


SKU:
Availability:



Inquire

Product Description

ECO Cost-Effective Series
Affordable pricing without compromising on performance, ideal for budget projects.

36° Narrow Beam Grille
Precise 36° beam with multi-chip grille for uniform, focused accent lighting.

Four Power Options
From 6W (450lm, 5 chips) to 24W (1800lm, 20 chips) for different display sizes.

AL+ABS Housing
Aluminum and ABS combination, lightweight and durable.

48V Safe Low Voltage
48V DC low-voltage system, safe for human contact, compliant with international standards.

Magnetic Track Installation
Tool-free magnetic attachment, easy to reposition along the track.

Parameter	6W	12W	18W	24W
Model	TX0331D-6	TX0341D-12	TX0351D-18	TX0361D-24
Power	6W	12W	18W	24W
Luminous Flux	450lm	900lm	1350lm	1800lm
Beam Angle	36°	36°	36°	36°
LED Chips	5 pcs	10 pcs	15 pcs	20 pcs
CRI	≥80	≥80	≥80	≥80
Voltage	48V DC	48V DC	48V DC	48V DC
Dimension	113×22×44mm	221×22×44mm	330×22×44mm	437×22×44mm
Material	AL+ABS	AL+ABS	AL+ABS	AL+ABS
Color	Black / White	Black / White	Black / White	Black / White
Warranty	2 Years	2 Years	2 Years	2 Years
