LDM0540D-GU10 LDM0640D-GU10
Oteshen
67
calss I
| SKU: | |
|---|---|
| Availability: | |

IP67 Top-Tier Waterproof & Dustproof Grade For Buried Installation
Full sealed integrated structure reaches IP67 protection rating, fully resist long-term rain immersion, road waterlogging, sand and dust. Can be completely buried under pavement, courtyard lawn without water infiltration damage, suitable for coastal, rainy and dusty landscape projects.
-20° to 20° Adjustable Lamp Core, Flexible Tree & Wall Washing Effect
The inner light holder supports tilt angle adjustment from -20° to 20°, freely shift light beam to uplight trees, wash building facade walls or highlight landscape sculptures, no fixed single light direction limitation.
Universal Replaceable GU10 Bulb Socket, Low Maintenance Cost
Standard GU10 lamp holder design, customers can freely swap GU10 LED bulbs of different color temperatures, power and beam angles on site without replacing the whole fixture, greatly reduce post-project maintenance expense.
Multi-Grade Stainless Steel Cover Optional For Different Environment

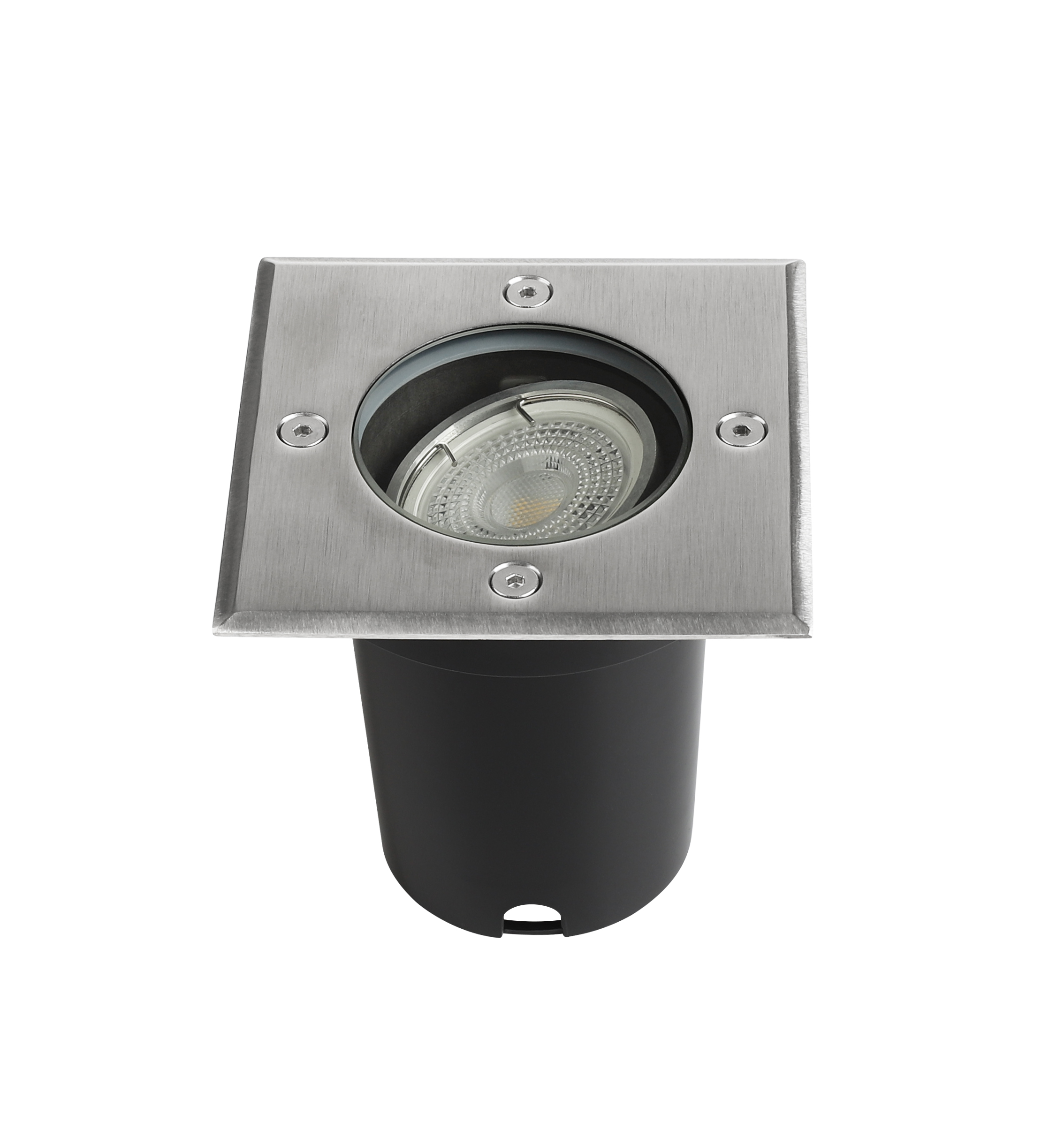

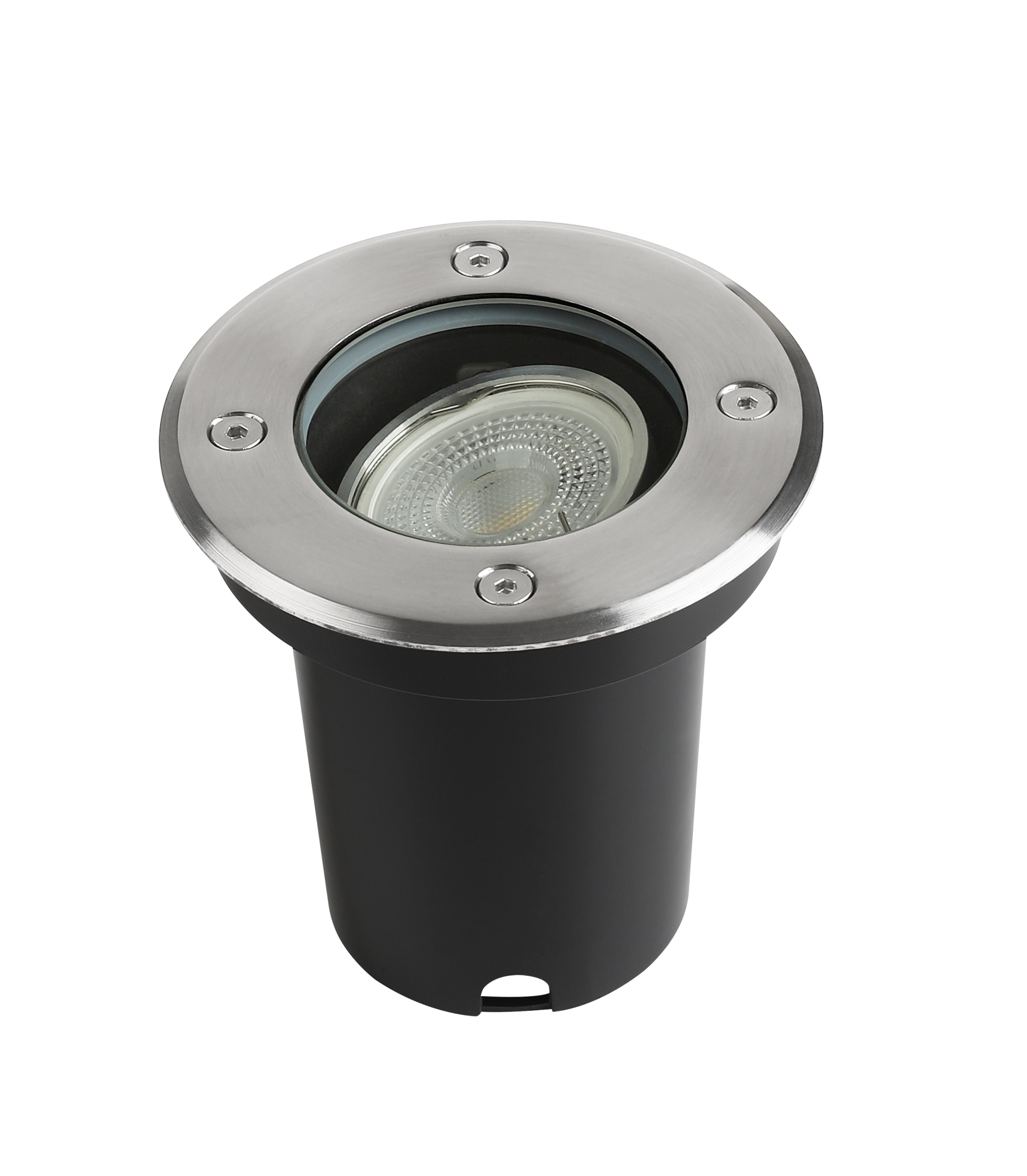

3 material choices for surface cover: 201 / 304 / 316 stainless steel. 316 material offers outstanding salt spray & anti-rust performance specially for seaside villa, coastal resort landscape projects. Round & square two shape options match all pavement design styles.
Split Structure For Easy Pre-Buried Construction

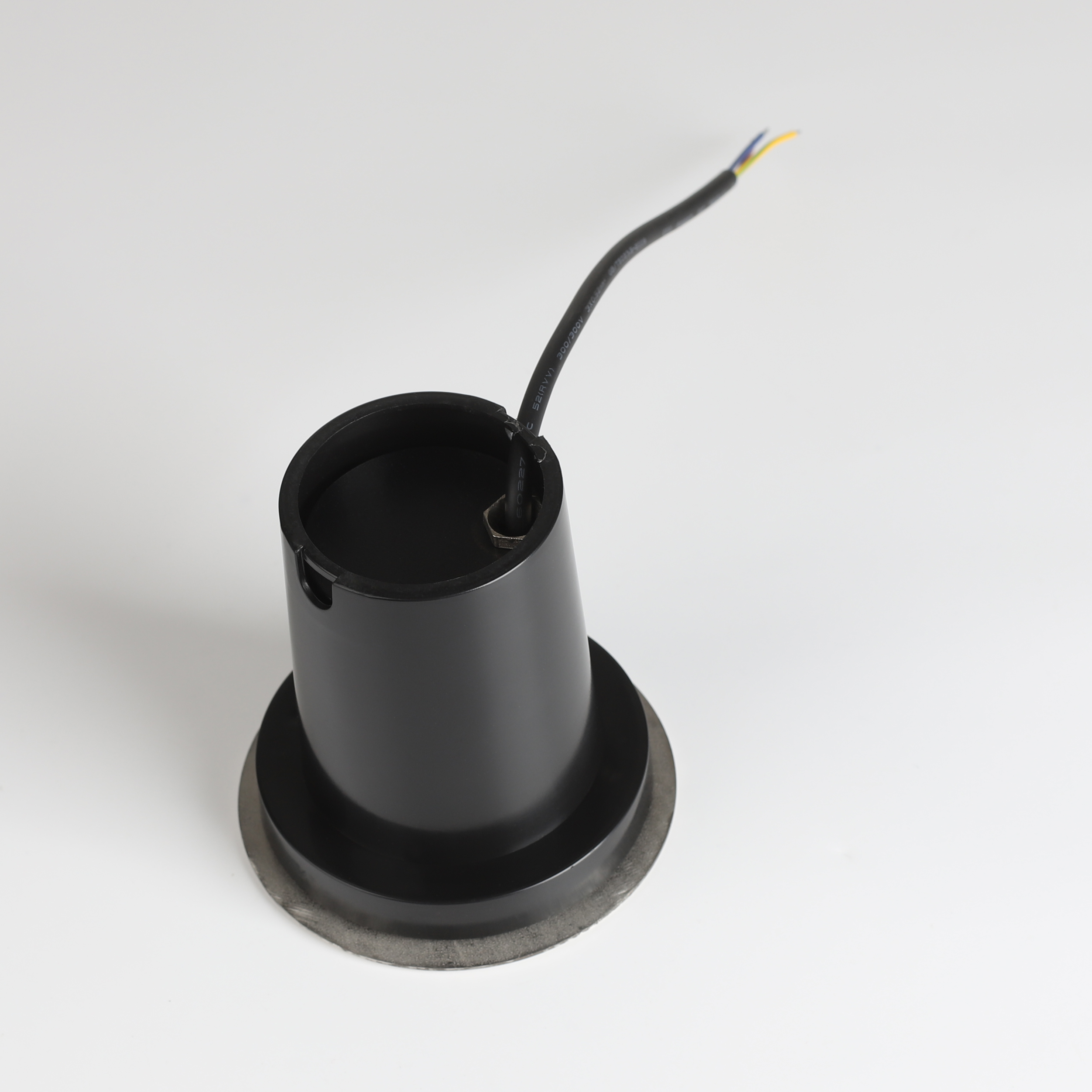

Separate stainless steel top cover and black plastic buried barrel, workers can pre-bury the plastic cylinder during early pavement construction, then install the stainless steel panel after finishing ground decoration, greatly simplify on-site installation process.
| structure parameter | material | stainless steel+PP | |||||||
| dimension | 110*110*110mm | ||||||||
| cut-out | Ф100mm | ||||||||
| protection class | calss I | ||||||||
| IP | IP67 | ||||||||
| Max bulb watt | 20W | ||||||||
| adjustable angle range | -20°~20° | ||||||||
| Lampholder | GU10/GU5.3 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||

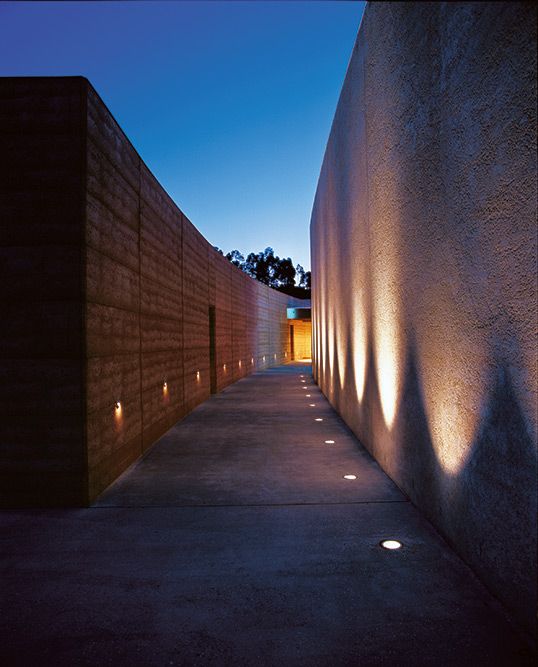

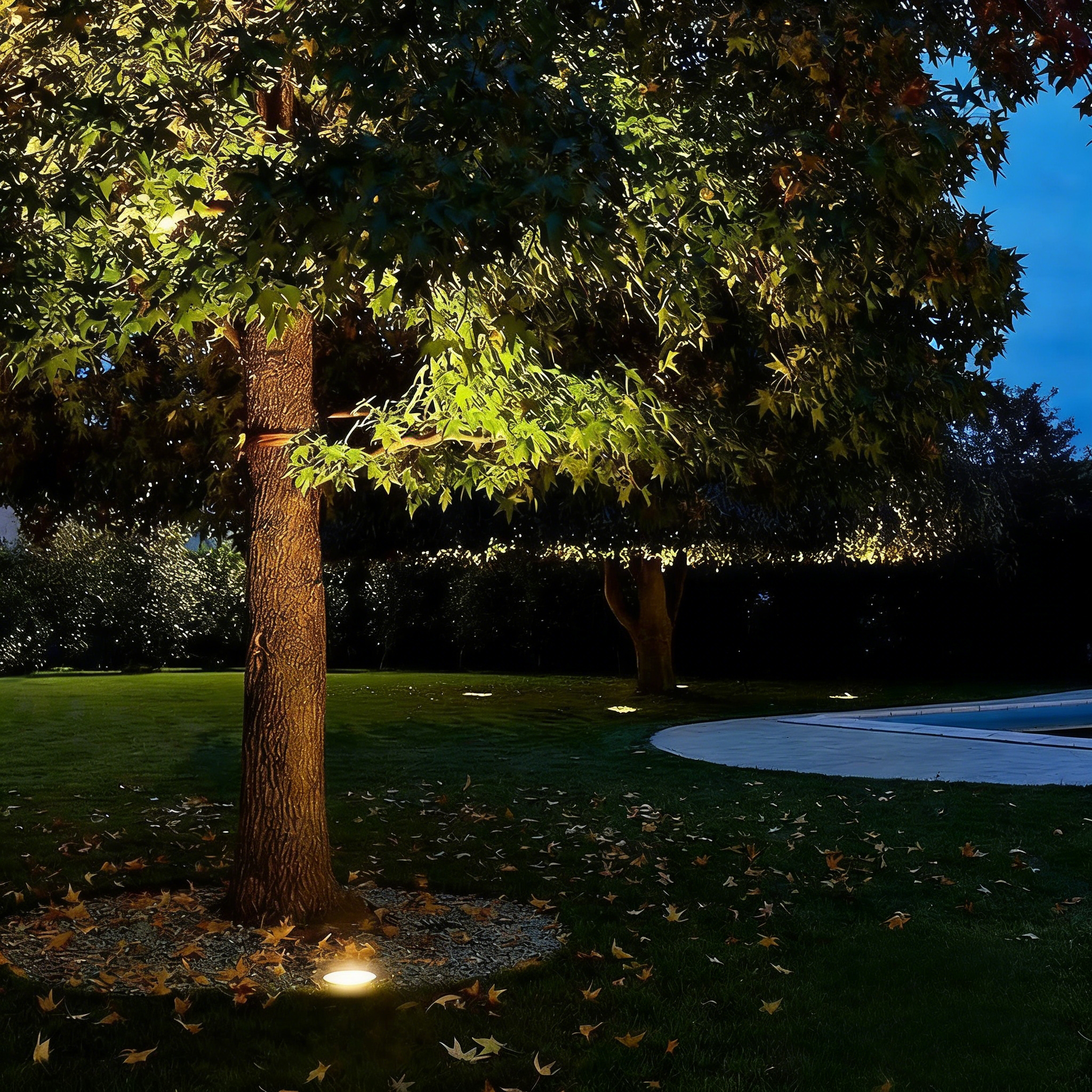

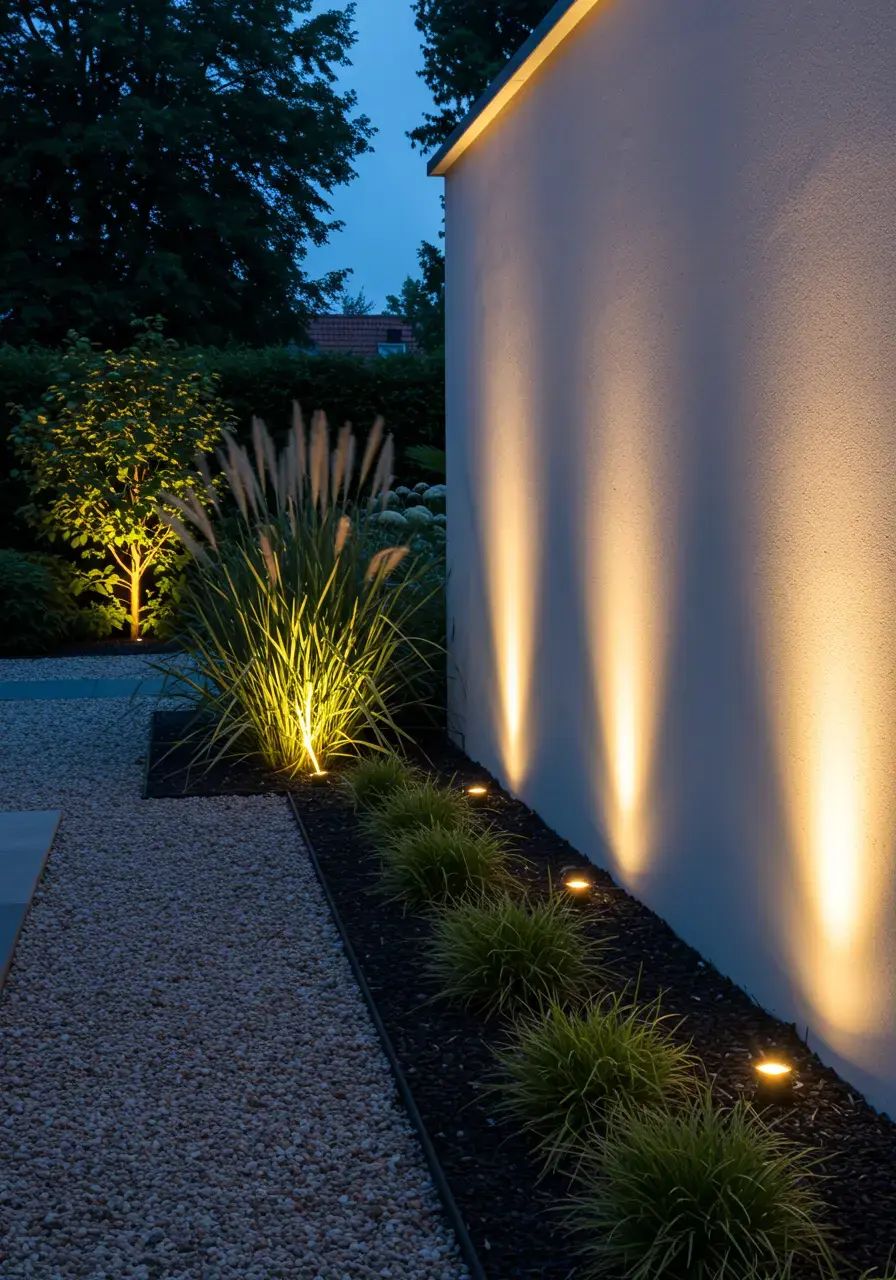

Residential landscape: Villa driveway pavement, garden lawn tree uplight, courtyard wall washing, sculpture accent lighting
Commercial engineering: Resort walkway, hotel outer landscape, park pedestrian road, commercial plaza buried atmosphere light
