3W 3CCT Motion Sensor Recessed LED Step Light IP65 Aluminum Iron Stair Wall Light Full Series LBD5910RAT-3, LBD5910RBT-3, LBD5910RCT-3, LBD5910SAT-3, LBD5910SBT-3, LBD5910SCT-3

1. Series Overview & Complete Model List

LBD5910 series sensor recessed step light is a multi-scene customizable intelligent outdoor stair lamp, all available full models as below:

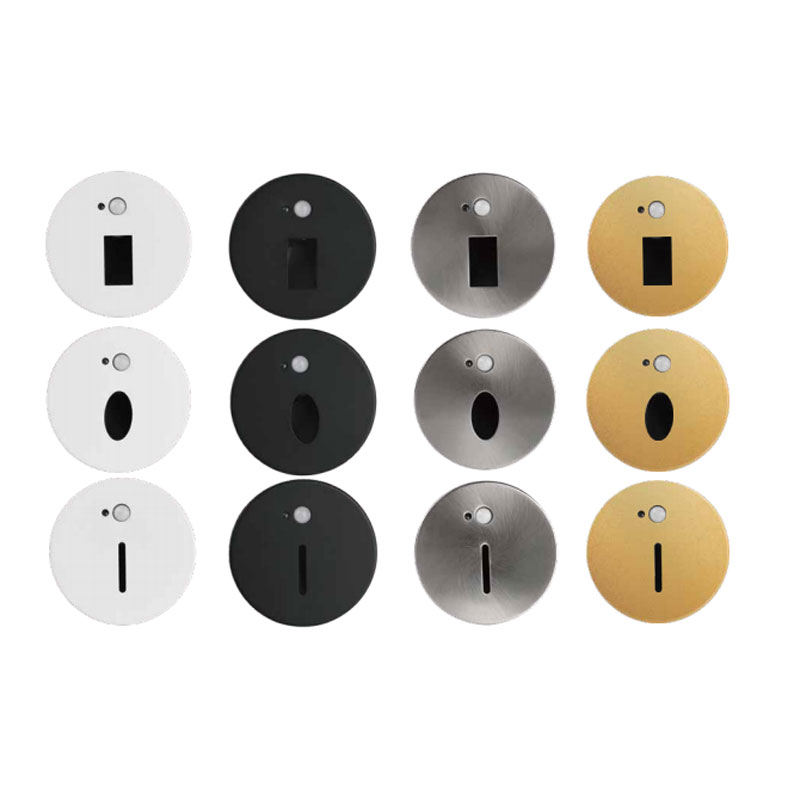

• Round panel series: LBD5910RAT-3, LBD5910RBT-3, LBD5910RCT-3

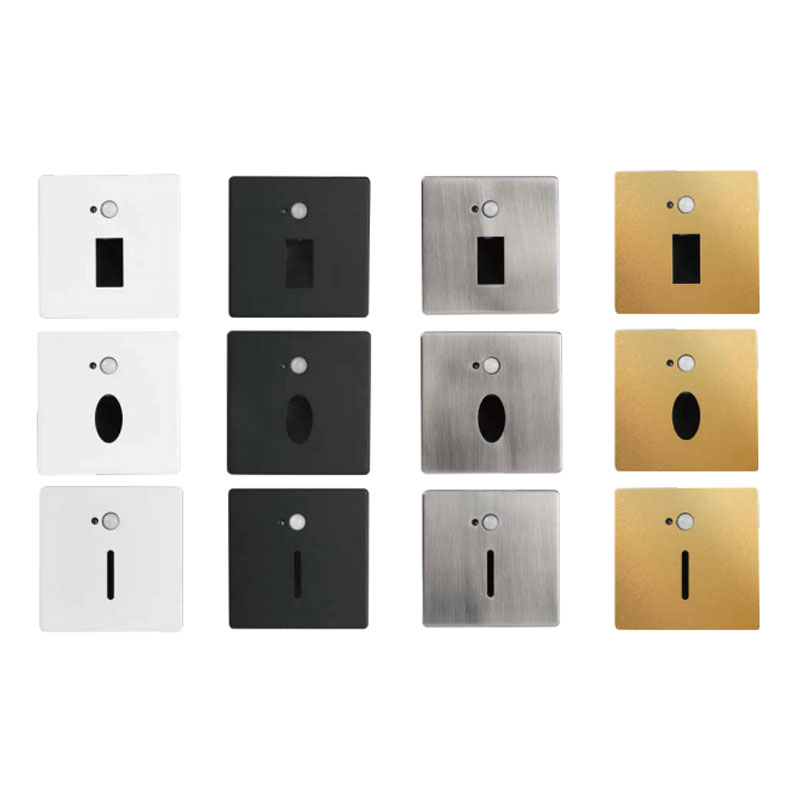

• Square panel series: LBD5910SAT-3, LBD5910SBT-3, LBD5910SCT-3

The whole series adopts IP65 dustproof & waterproof structure, applicable to damp and rainy outdoor environments. Magnetic suction panel enables tool-free disassembly for wiring and maintenance. Two installation cut sizes are available: L50×H60mm for direct wall bury, Φ75mm for standard junction box installation. Diverse beams, panel colors and frames can be freely matched to match modern, minimalist and light luxury courtyard decoration styles.

2. Core Product Advantages

1. Built-in Human Motion Sensor: Automatically lights up when human activity is detected, auto-off after delay, energy-saving intelligent night lighting

2. 3 Switchable CCT: Freely switch 3000K Warm White / 4200K Neutral White / 6500K Cool White

3. 3 Optional Beam Shapes: Trapezoid wide wall wash light, soft ellipse beam, narrow single line beam for different atmosphere requirements

4. Rich Matching Solutions: 4 panel colors (Matte Black, Matte White, Brushed Nickel, Gold) × 6 frame styles × 3 beam types, minimum 72 unique combinations

5. Magnetic Detachable Panel: No tools needed for disassembly, easy lamp replacement and circuit inspection

6. Dual Installation Cut Sizes: Two specifications to fit junction box pre-bury or direct wall opening

7. IP65 All-Weather Waterproof: Aluminum + iron alloy shell with fast heat dissipation, rust-proof for long-term outdoor service

8. Stable 3W Low Power Consumption, soft anti-glare light for stair accent lighting

3. Standard Specifications

• Rated Power: 3W

• Protection Grade: IP65 Waterproof & Dustproof

• Adjustable CCT: 3000K / 4200K / 6500K

• Optional Beam Shapes: Trapezoid, Ellipse, Narrow Single Beam

• Panel Color Options: Matte Black, Matte White, Brushed Nickel, Gold

• Panel Shape: Round (R model) / Square (S model)

• Overall Product Dimension: Φ81.5×40mm

• Installation Cut-out:

1. Direct bury type: L50mm × H60mm

2. Junction box type: Φ75mm

• Main Material: Die-cast Aluminum + Iron Composite

4. Full Complete Model Definition

1. LBD5910RAT-3: Round panel, Trapezoid beam, 3W

2. LBD5910RBT-3: Round panel, Ellipse beam, 3W

3. LBD5910RCT-3: Round panel, Narrow single beam, 3W

4. LBD5910SAT-3: Square panel, Trapezoid beam, 3W

5. LBD5910SBT-3: Square panel, Ellipse beam, 3W

6. LBD5910SCT-3: Square panel, Narrow single beam, 3W

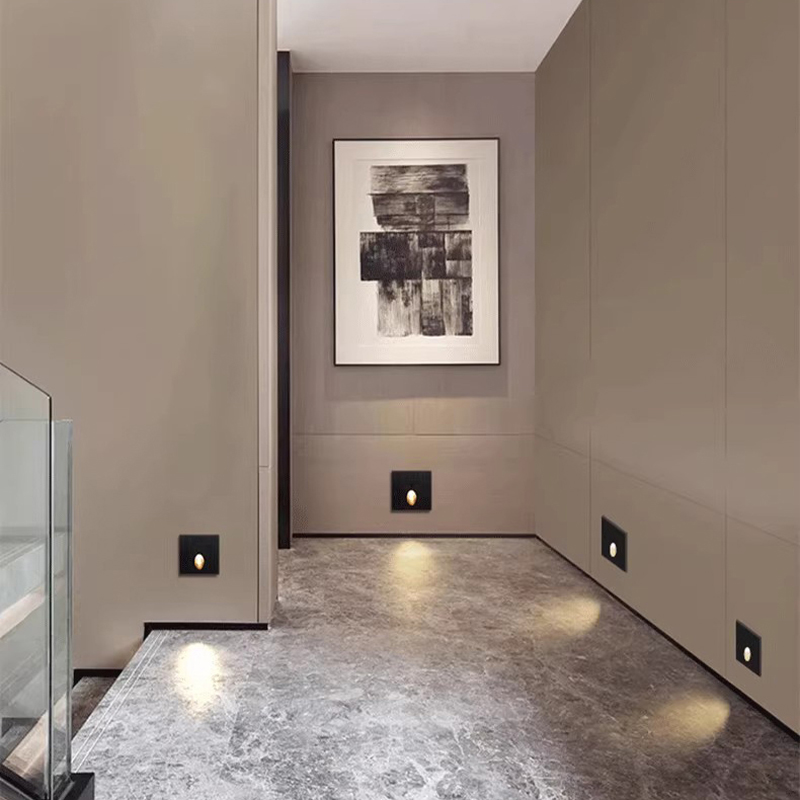

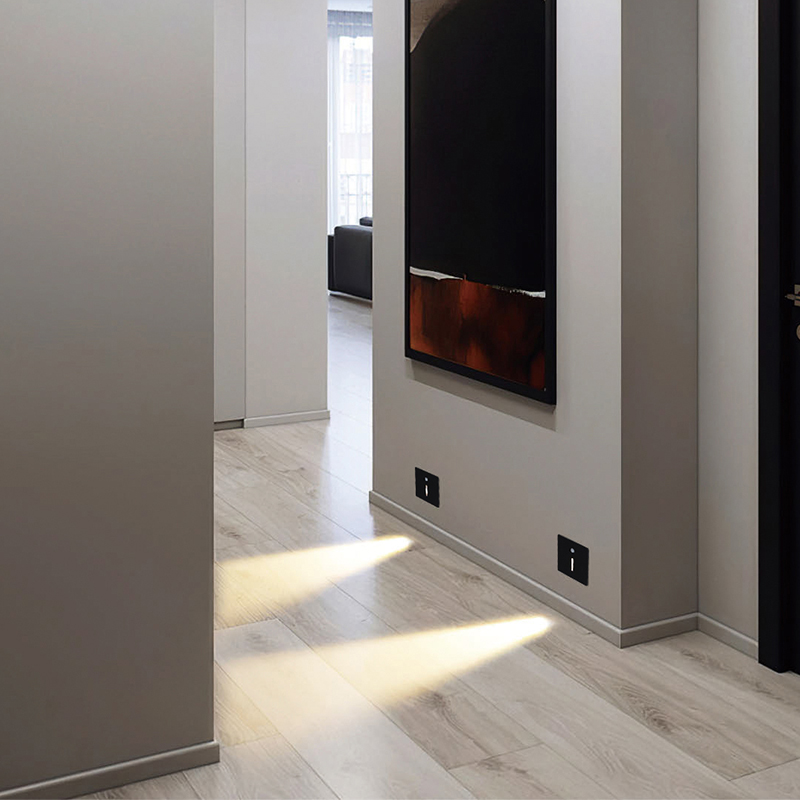

5. Application Scenarios

Indoor & outdoor residential stair treads, villa garden walkways, courtyard baseboard lighting, hotel outdoor corridors, commercial park landscape steps, backyard boundary intelligent sensor lighting.
