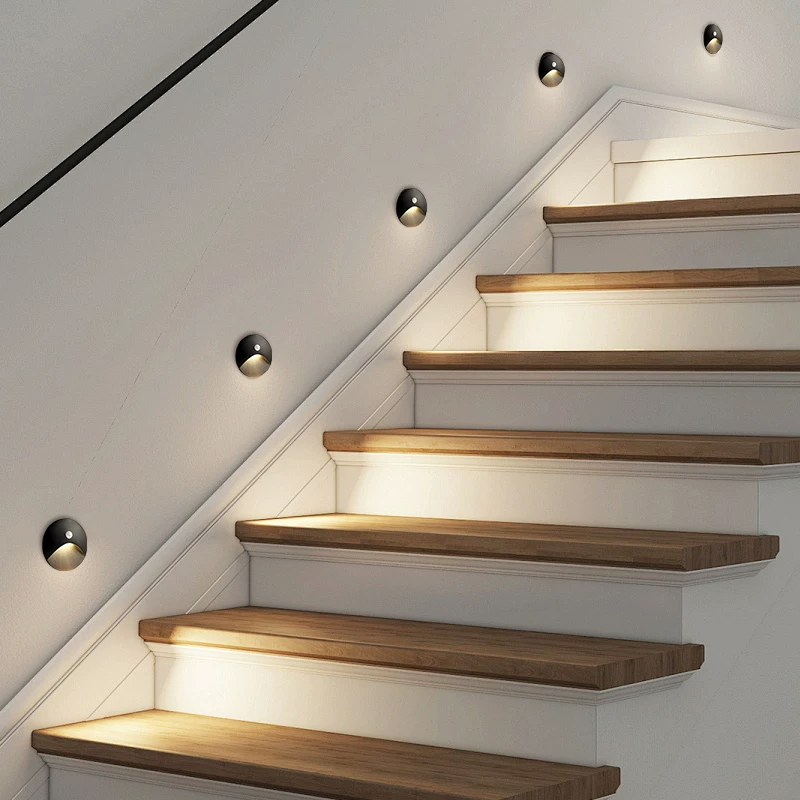

![Motion sensor IP65 LED step light Oteshen 3W waterproof stair foot lamp black white]( "LBD21010RR-3 黑色 场景图")

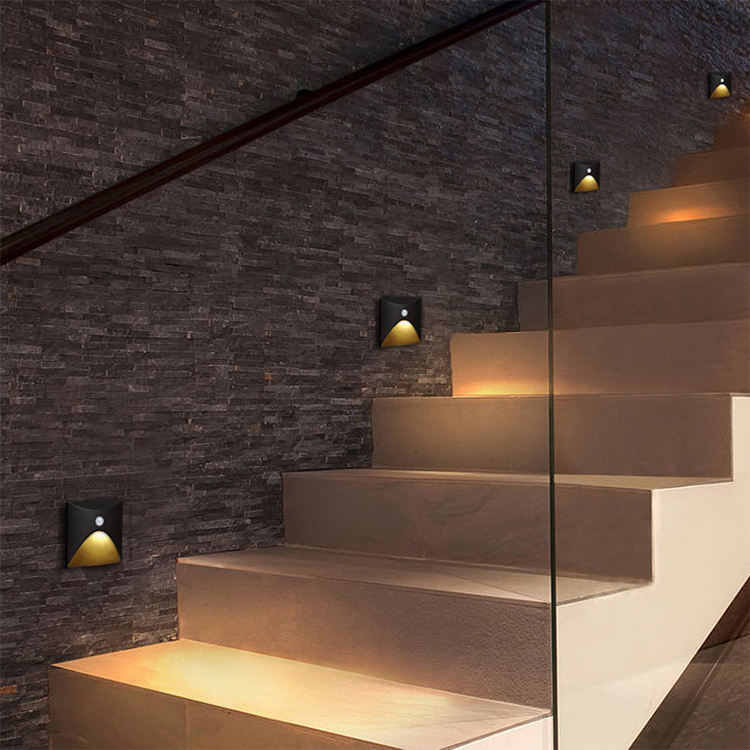

![Oteshen 3W IP65 human infrared motion sensor LED step light, round & square black white aluminum stair wall lamp with auto 30s delay off, for villa corridor courtyard stairway lighting]( "Oteshen 3W IP65 human infrared motion sensor LED step light, round & square black white aluminum stair wall lamp with auto 30s delay off, for villa corridor courtyard stairway lighting")
Human Infrared Body Induction Auto On/Off Function
3-5 Meters Effective Sensing Range, 30 Seconds Delay Off After Human Leaving
IP65 Full Waterproof & Dustproof Grade, Indoor & Outdoor Dual Use
Only 3W Low Power Energy Saving Design, Long Service Life

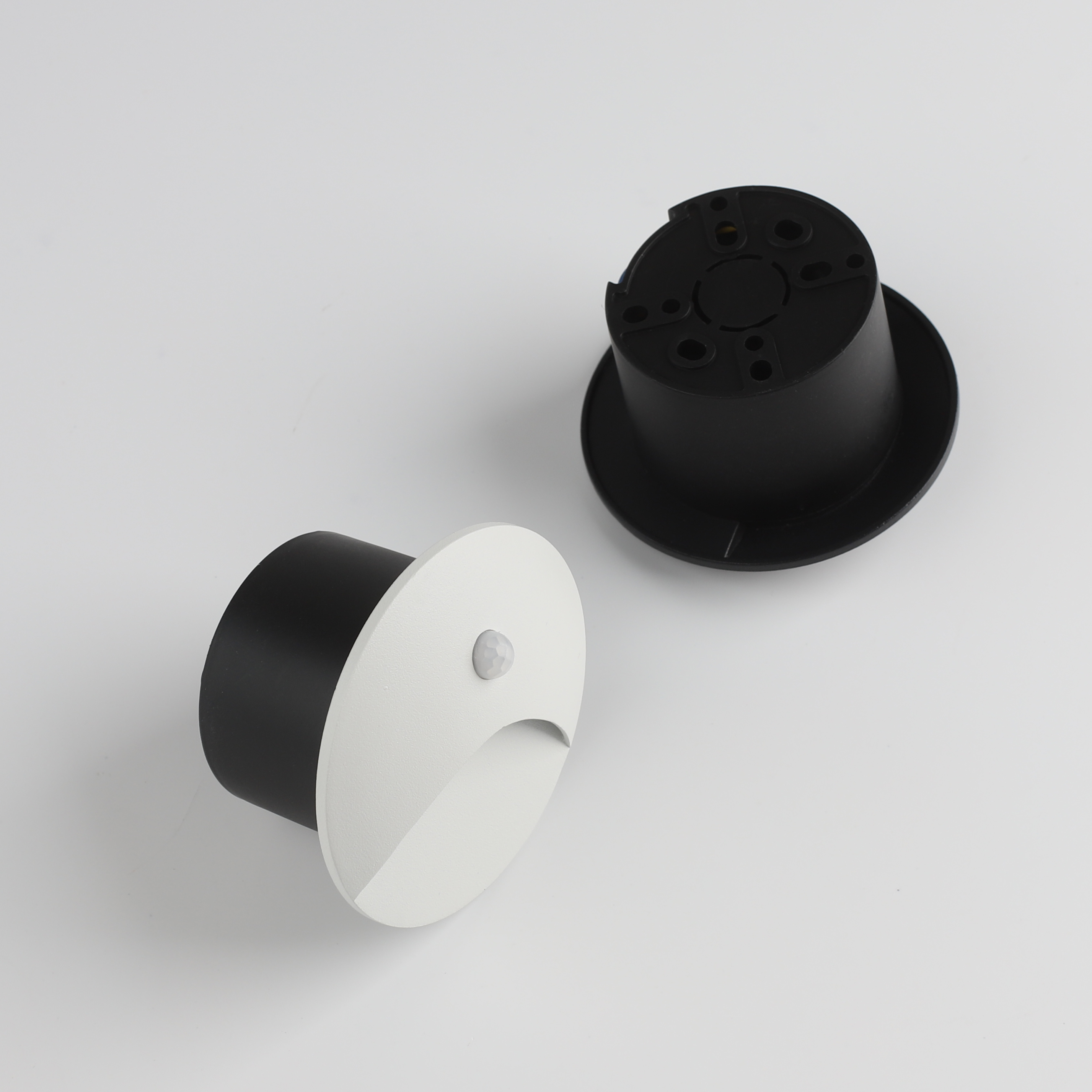

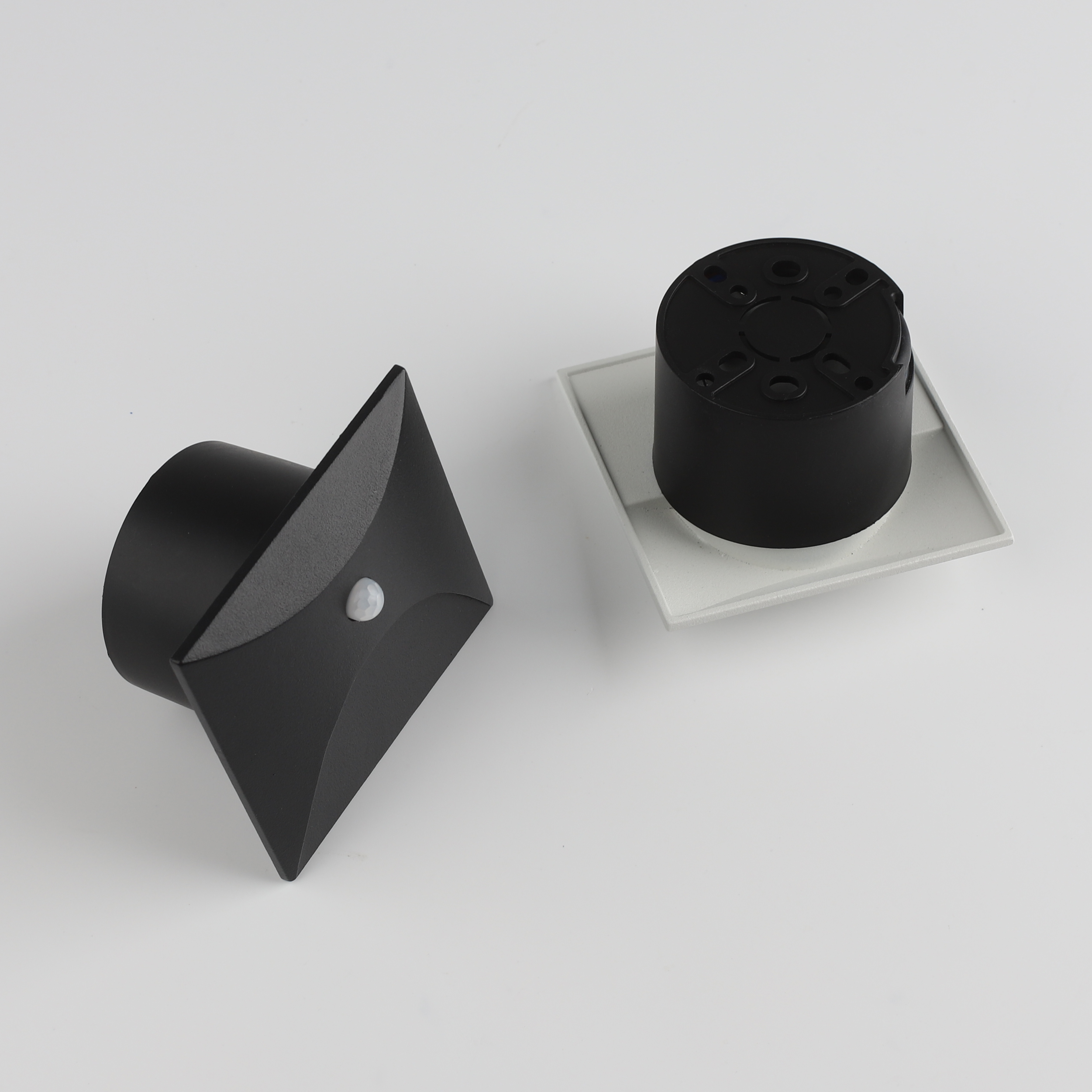

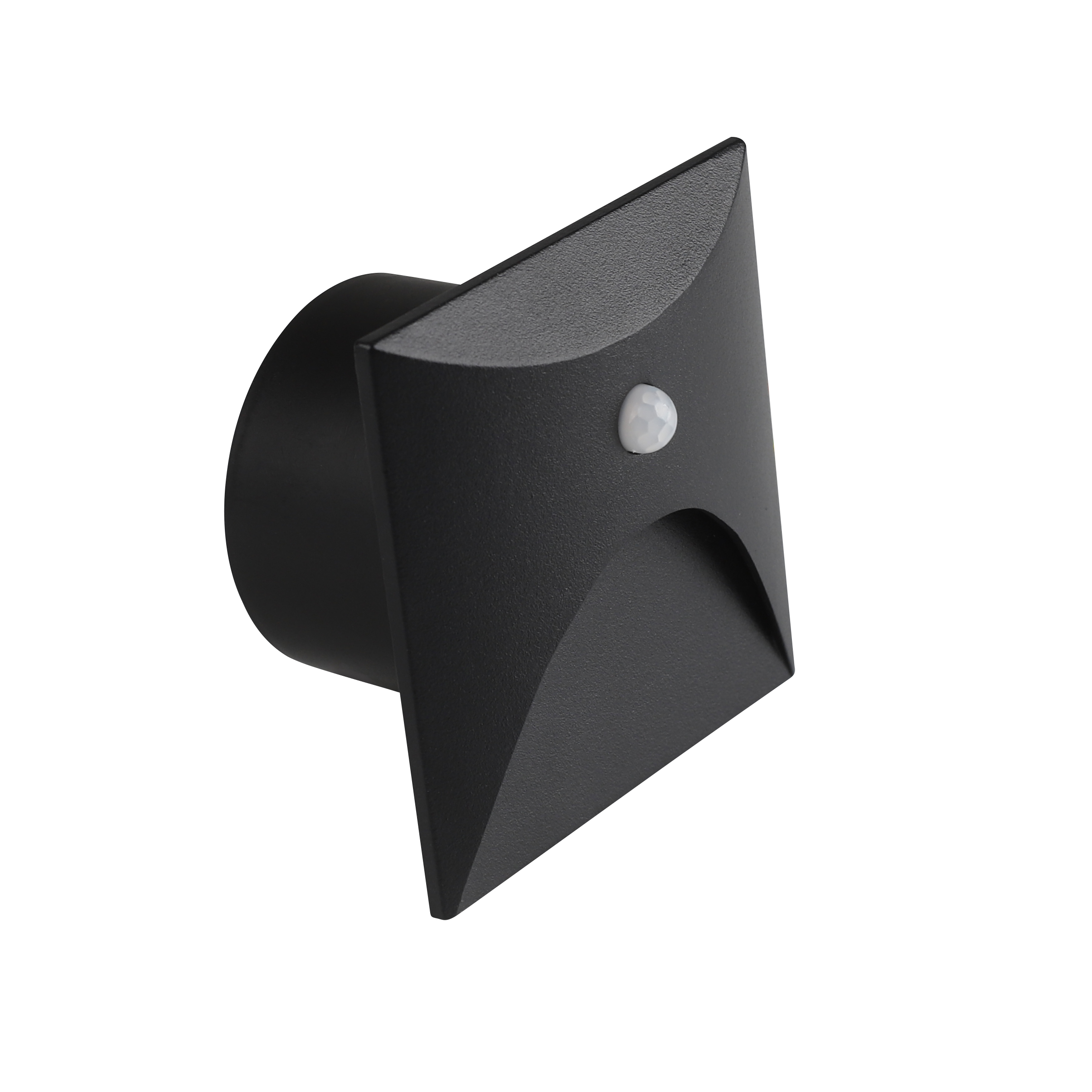

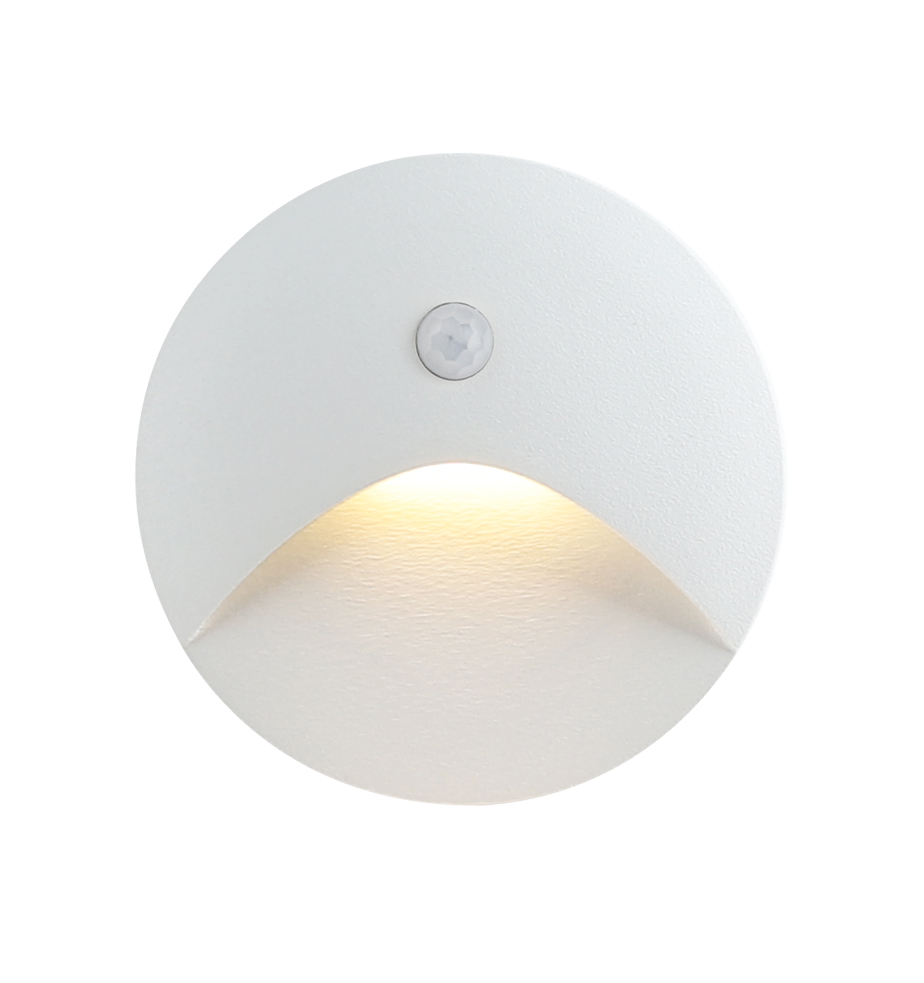

Two Shapes (Round & Square) + Two Universal Colors (Matte Black & White)
Integrated Aluminum Lamp Body, Anti-Rust & Anti-Corrosion
Application Scenarios
Residential
Villa indoor staircase, bedroom corridor, balcony aisle, courtyard walkway
Engineering
Hotel stair passage, resort corridor, community stairwell, park pedestrian path
performance
parameter | lamp | warm white | natural white | cool white |
| lumen (lm)BK | 39 | 42 | 45 |
| lumen (lm)WH | 55 | 58 | 61 |
| color temperature（K) | 3000K | 4000K | 6500K |
| CRI | ≥80 |
| type of LED | COB |
| beam angle | 62° |
| decay rate (%) | less than 3% within 1000 working hours |
| total power (W) | 3W±10% |
| lifespan (Hrs) | ≥17520Hrs |
| high voltage testing | 17520Vac/1min |
| Light sensitivity | < 7Lux Light on |
| Sensor distance | 3-5M |
| products Input parameter | 110V: 48mA
127V：41 mA
220V: 29 mA |
LED
parameter | lighting efficiency | BK:13 lm/W WH:18 lm/W |
| chip quantity | 12PCS |
| series-parallel way | 3C4B*2 |
| voltage | 18VDC |
| current | 150MA |
driver
parameter | input parameter | 100～240VAC，50/60Hz |
| power factor | ≥0.5 |
| time of human body sensor | 35S |
| output parameter | 12-21V/150MA±5% |
structure
parameter | material | AL+PP |
| dimension | Ф85X55mm |
| cut-out | 60 |
| protection class | I Class |
| IP | IP65 |
environment
parameter | application | hotel、home-lighting、recreation place、supermarket、office building corridor |
| operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. |
| storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. |
