3W Recessed LED Step Light IP65 Aluminum Iron Stair Wall Light Full Series LBD5920RAT-3, LBD5920RBT-3, LBD5920RCT-3, LBD5920SAT-3, LBD5920SBT-3, LBD5920SCT-3

1. Series Overview & Full Complete Model List

LBD5920 series fixed CCT recessed step light is thin-body decorative stair lamp for indoor & outdoor usage, all complete models fully listed below:

• Round panel series: LBD5920RAT-3, LBD5920RBT-3, LBD5920RCT-3

• Square panel series: LBD5920SAT-3, LBD5920SBT-3, LBD5920SCT-3

The whole series adopts aluminum + iron composite material, stable heat dissipation, compact slim design with 37mm thickness. Three beam styles match different lighting atmosphere demands, 4 surface color options realize diversified decoration matching, widely used in residential, hotel, courtyard stair accent lighting.

2. Core Product Advantages

1. Slim Ultra-Thin Body: Only 37mm thickness, save wall installation space

2. Multiple Beam Selection: Trapezoid wide wash light, ellipse soft light, narrow line beam

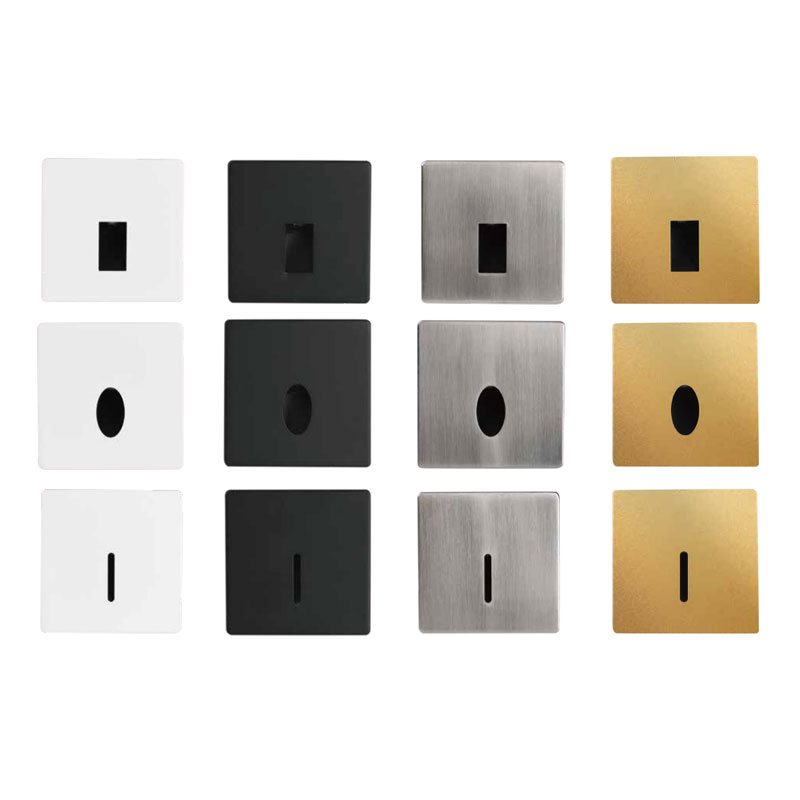

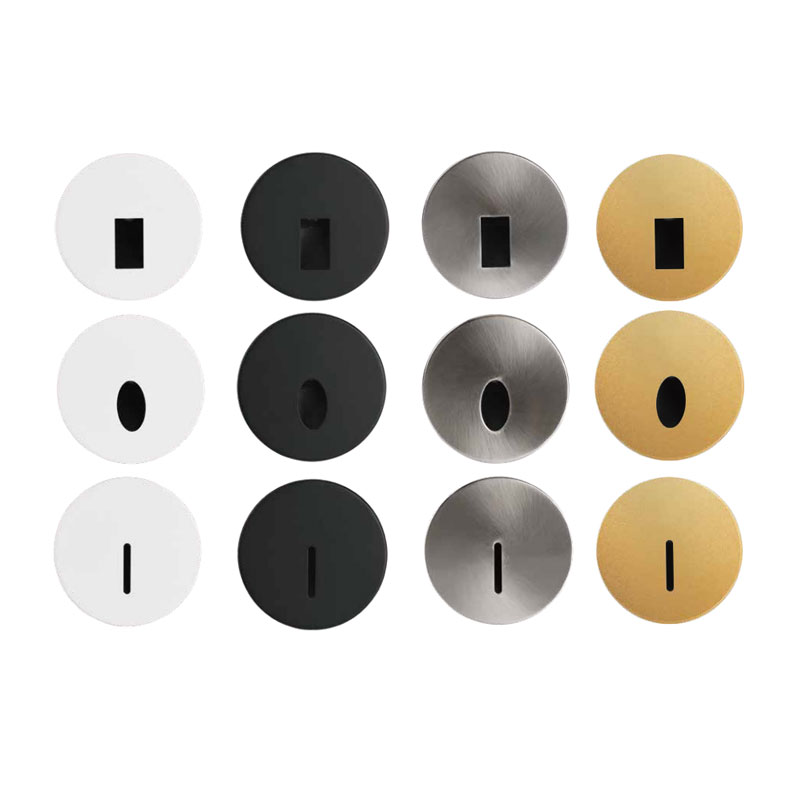

3. Rich Color Matching: Matte White, Matte Black, Brushed Nickel, Gold four panel finishes

4. Dual Panel Shape: Round & square trim to fit modern, minimalist, light luxury decoration

5. Aluminum+Iron Housing: Strong structure, good heat dissipation, long service life

6. Stable 3W Low Power: Soft anti-glare light, no dazzling for night walking safety

7. Indoor & Outdoor Available: Suitable for dry indoor stairs and covered outdoor walkways

3. Standard Specifications

• Rated Power: 3W

• Main Material: Die-cast Aluminum + Iron Composite

• Lamp Body Thickness: 37mm

• Round Model Dimension: Φ81.5mm × 37mm

• Square Model Dimension: 81.5mm × 81.5mm × 37mm

• Optional Beam Shapes: Trapezoid, Ellipse, Narrow Single Line Beam

• Panel Color Options: Matte White, Matte Black, Brushed Nickel, Gold

• Panel Shape: Round (R model) / Square (S model)

4. Full Complete Model Definition

1. LBD5920RAT-3: Round panel, Trapezoid wide beam, 3W, Φ81.5×37mm

2. LBD5920RBT-3: Round panel, Ellipse soft beam, 3W, Φ81.5×37mm

3. LBD5920RCT-3: Round panel, Narrow single line beam, 3W, Φ81.5×37mm

4. LBD5920SAT-3: Square panel, Trapezoid wide beam, 3W, 81.5×81.5×37mm

5. LBD5920SBT-3: Square panel, Ellipse soft beam, 3W, 81.5×81.5×37mm

6. LBD5920SCT-3: Square panel, Narrow single line beam, 3W, 81.5×81.5×37mm

5. Application Scenarios

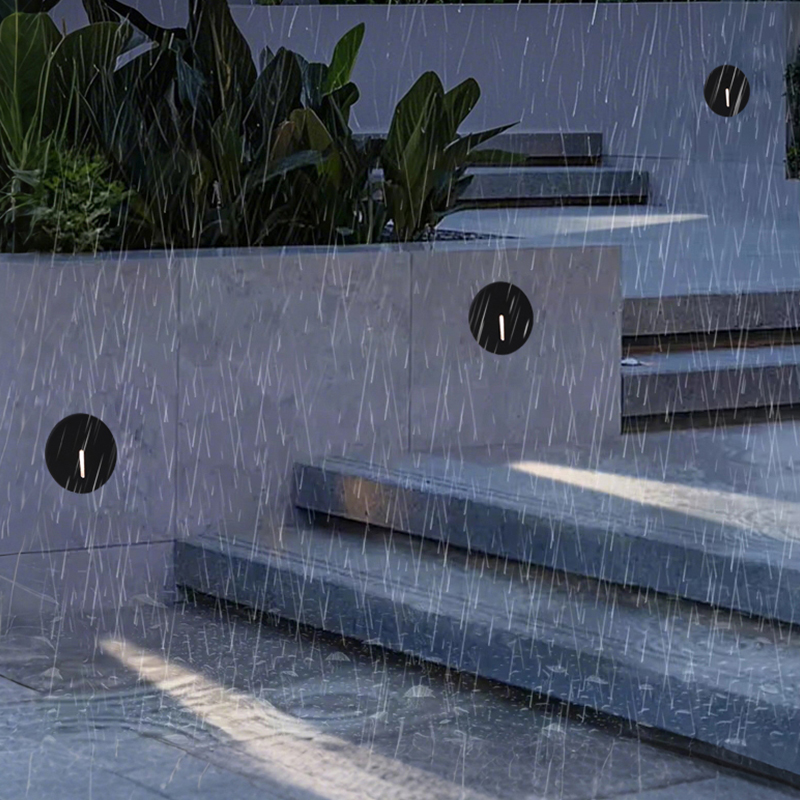

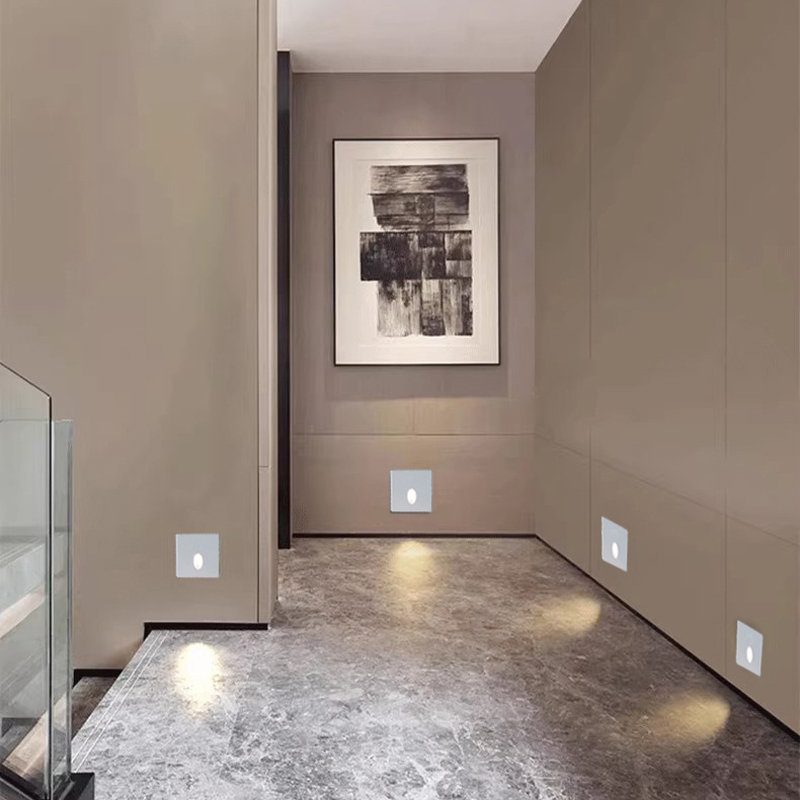

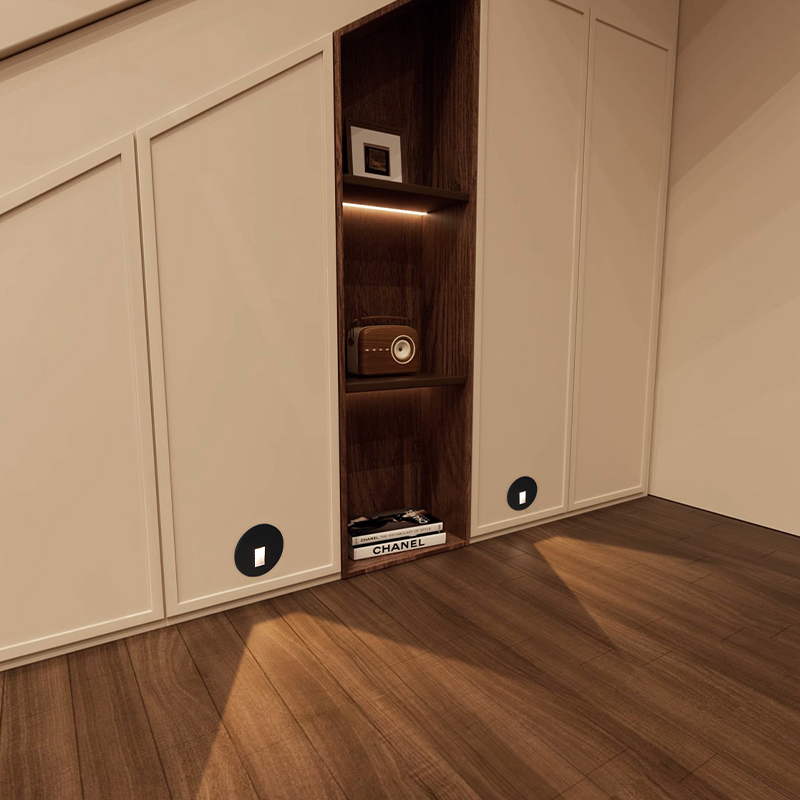

Indoor household stair treads, hotel corridor baseboard, villa covered courtyard walkways, shopping mall landscape steps, balcony edge decorative lighting, apartment public stair lighting.
