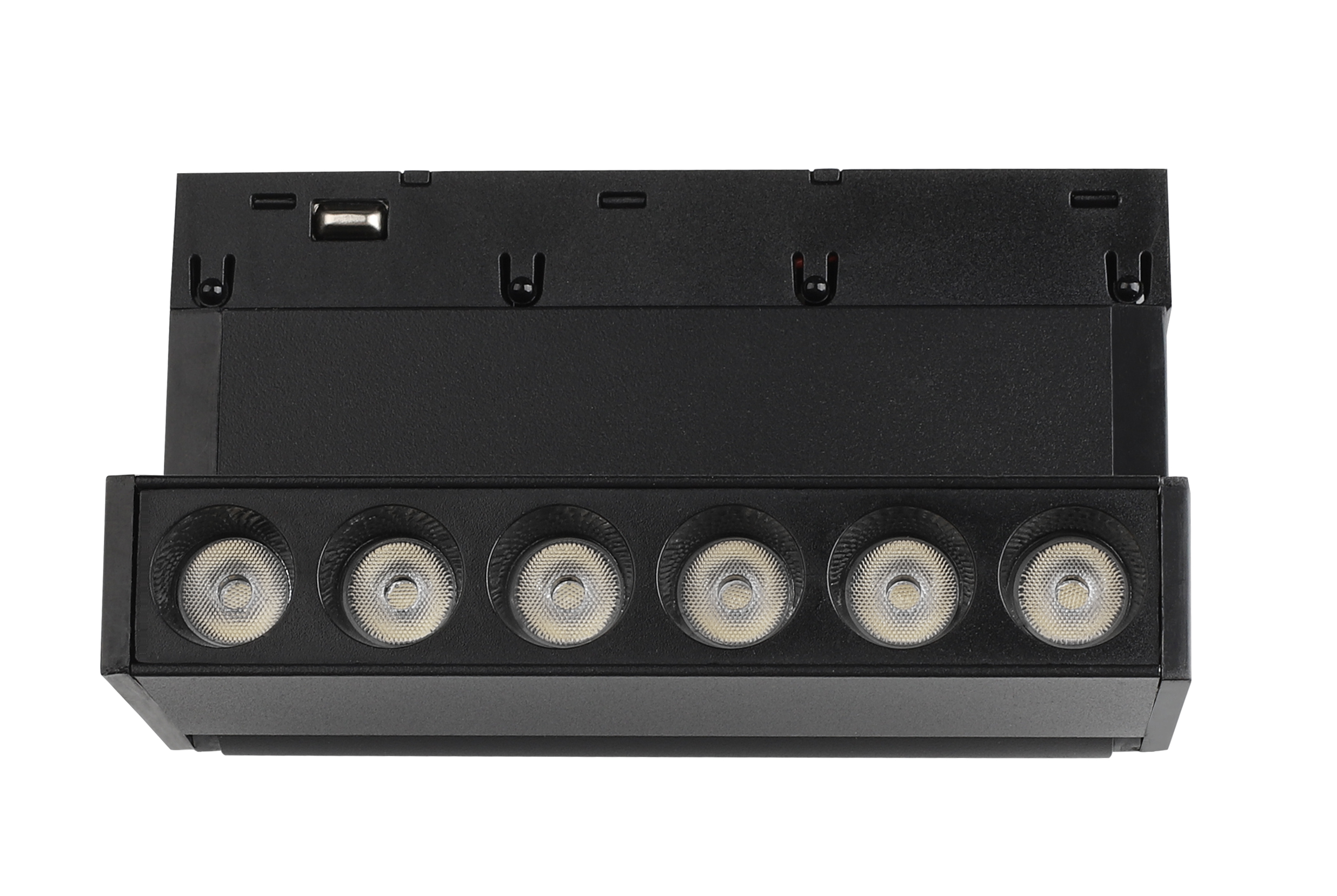

ECO high bay magnetic LED grille light TX0431D-6 6W 450lm 36 degree

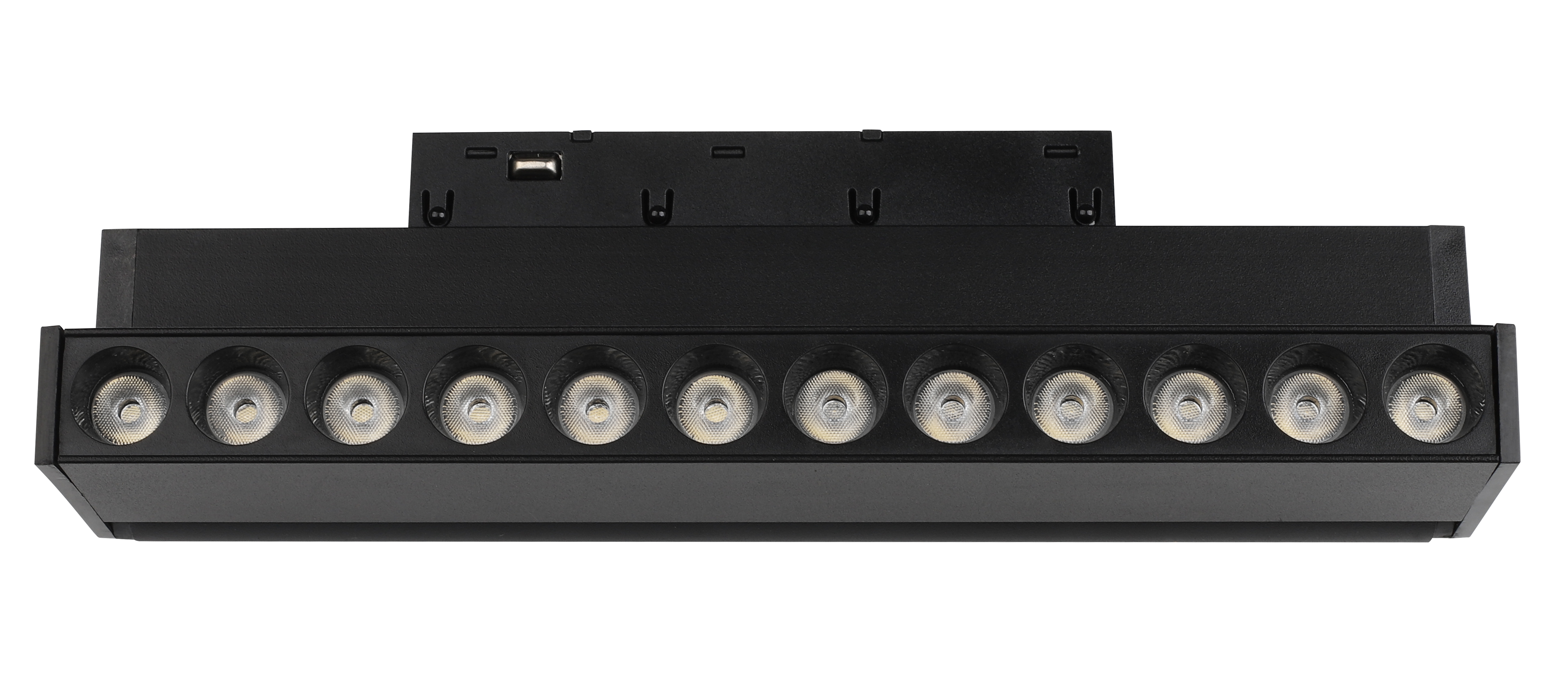

ECO high bay magnetic LED grille light TX0441D-12 12W 900lm 36 degree

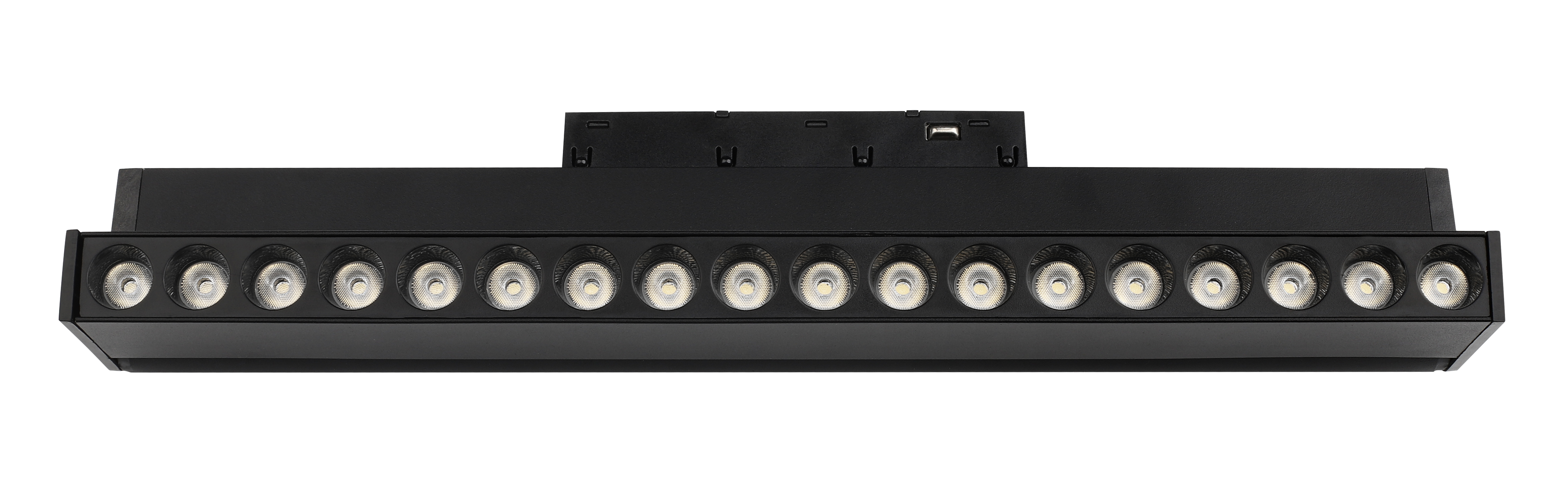

ECO high bay magnetic LED grille light TX0451D-18 18W 1350lm 36 degree

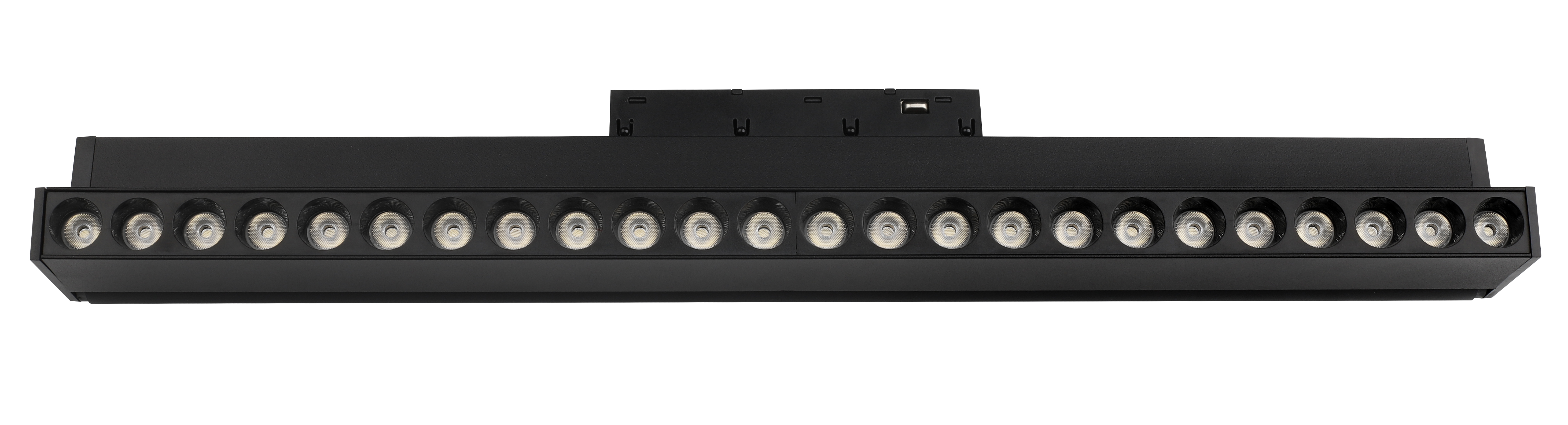

ECO high bay magnetic LED grille light TX0461D-24 24W 1800lm 36 degree

ECO Magnetic LED Grille Light 36° High Bay 6W-24W

The ECO series high bay magnetic LED grille light features a 105mm tall housing with 36° narrow beam angle for precise accent lighting. Available in 6W (450lm), 12W (900lm), 18W (1350lm) and 24W (1800lm) options. The taller housing provides better heat dissipation and more uniform light distribution. AL+ABS housing, 48V safe low-voltage system, CRI≥80. Magnetic track installation for easy positioning. Ideal for retail displays, showrooms, galleries and commercial accent lighting. 2-year warranty.

Model:
TX0431D-6 TX0441D-12 TX0451D-18 TX0461D-24
Brand:
Oteshen
Material:
AL+ABS
Color :
White / Black


SKU:
Availability:



Inquire

Product Description

High Bay Grille Design
105mm tall housing for better heat dissipation and uniform light distribution.

36° Narrow Beam Angle
Precise 36° beam for focused accent lighting on products and displays.

Four Power Options
From 6W (450lm) to 24W (1800lm), suitable for different display sizes.

ECO Cost-Effective Series
Affordable pricing without compromising on performance.

48V Safe Low Voltage
48V DC low-voltage system, safe for human contact, compliant with international standards.

Magnetic Track Installation
Tool-free magnetic attachment, easy to reposition along the track.

Parameter	6W	12W	18W	24W
Model	TX0431D-6	TX0441D-12	TX0451D-18	TX0461D-24
Power	6W	12W	18W	24W
Luminous Flux	450lm	900lm	1350lm	1800lm
Beam Angle	36°	36°	36°	36°
CRI	≥80	≥80	≥80	≥80
Voltage	48V DC	48V DC	48V DC	48V DC
Dimension	115×22×105mm	223×22×105mm	330×22×105mm	440×22×105mm
Material	AL+ABS	AL+ABS	AL+ABS	AL+ABS
Color	Black / White	Black / White	Black / White	Black / White
Warranty	2 Years	2 Years	2 Years	2 Years
