Core Product Advantages

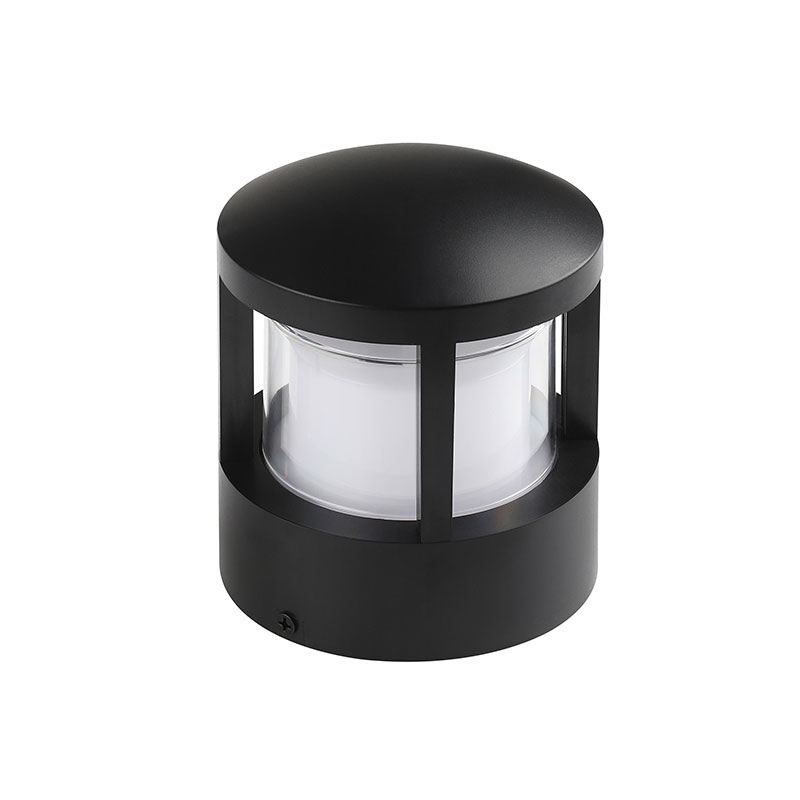

Minimalist round cylinder shape with symmetrical dual-side soft light output, delivering gentle diffused glow without harsh glare.

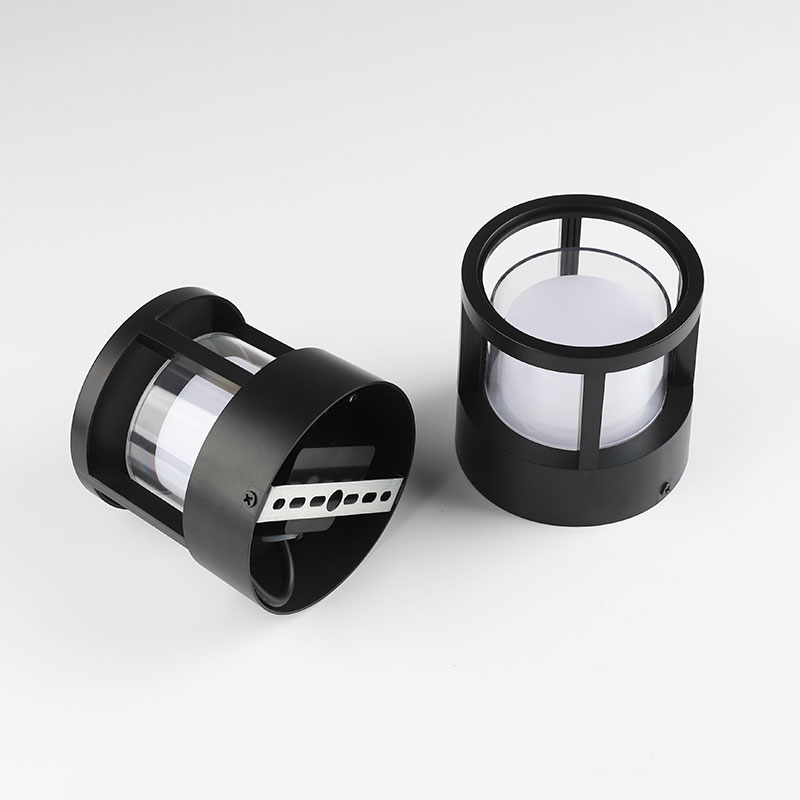

Dual installation design: can be wall-mounted on facade or freely placed on garden stone plinth & ground pedestal.
Full IP65 sealed waterproof & dustproof structure, stable performance under rainy outdoor conditions all year round.
Two power options (6W / 12W) for flexible matching of small courtyards and large exterior wall areas.
Integrated die-cast aluminum lamp body, anti-rust and anti-corrosion, long service life for long-term outdoor exposure.
Application Scenarios
Villa courtyard, garden walkway, entry porch, terrace pillar, resort outer wall, hotel landscape aisle, club facade, landscape stone pedestal decoration.
performance
parameter | lamp | warm white | natural white | cool white |
| lumen (lm) | 400lm | 405lm | 410lm |
| color temperature（K) | 3000K | 4000K | 6500K |
| CRI | ≥80 |
| type of LED | SMD LED |
| beam angle | 150º |
| decay rate (%) | less than 3% within 1000 working hours |
| total power (W) | 6W |
| lifespan (Hrs) | ≥30000Hrs |
| high voltage testing | 1750Vac/1min |
|
| products Input parameter | 100V: 109mA
127V：85mA
220V: 57mA |
LED
parameter | lighting efficiency | 60lm/W |
| chip quantity | 26PCS |
| series-parallel way | 13C2B |
| voltage | 39VDC |
| current | 140mA |
driver
parameter | input parameter | 100-240VAC，50/60Hz |
| power factor | >0.5 |
| output parameter | 140mA±5% 36-46VDC |
structure
parameter | material | ABS+PS |
| dimension | Φ110*107mm |
| cut-out | \ |
| protection class | II级 |
| IP | IP65 |
environment
parameter | application | hotel、home-lighting、recreation place、supermarket、office building |
| operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. |
| storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. |
Looking for dual mount IP65 waterproof outdoor wall & ground light for villa landscape project bulk order? Custom CCT, shell color and packaging available, free catalog & sample test on request, contact us for factory direct wholesale price and full datasheet!
About Us OTESHEN Lighting
![工厂优势]( "工厂优势")
Founded in 2003, Oteshen Lighting is a professional indoor decorative lighting manufacturer with over 20 years of R&D and mass production experience. All wall lamps pass aging test, heat dissipation test and safety inspection before delivery, with unified 2-year global after-sales warranty. We provide full OEM & ODM customization: housing color, color temperature, LOGO printing and neutral export packaging, supporting bulk wholesale and hotel, homestay engineering projects all over the world.
