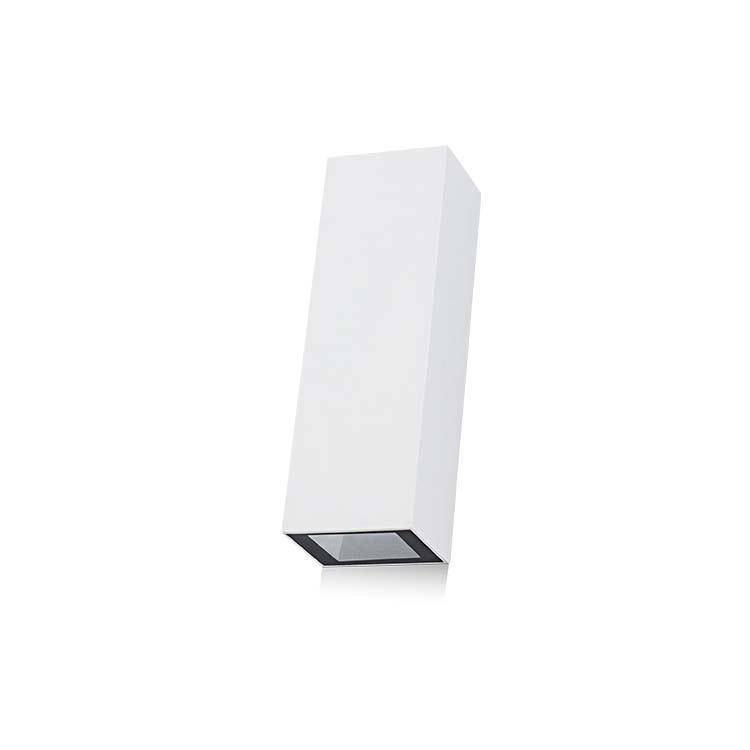

External Led Wall Lights LBD2720-5
External Led Wall Lights LBD2720-5
Promotional Wholesale LED Track Light Fixture GU10 Downlight Fixture
Promotional Wholesale LED Track Light Fixture GU10 Downlight Fixture
Aluminium 10W 18W 24W COB Led Track Light
Aluminium 10W 18W 24W COB Led Track Light
Custom Slim Design Aluminium Plastic 12W 15W 20W Up Down Rotaion Adjustable COB Led Track Light
Custom Slim Design Aluminium Plastic 12W 15W 20W Up Down Rotaion Adjustable COB Led Track Light
Promotional Wholesale Home Office LED Downlight Fixture External LED Downlight Fixture
Promotional Wholesale Home Office LED Downlight Fixture External LED Downlight Fixture
Steel IP65 LED Downlight Fixture
Steel IP65 LED Downlight Fixture
Aluminum And Plastic Square Panel Light 10W 15W 22W 30W Recessed Ceiling Adjustable Slim Panel Light Led Panellight
Aluminum And Plastic Square Panel Light 10W 15W 22W 30W Recessed Ceiling Adjustable Slim Panel Light Led Panellight
Free New Design 6W Aluminium ABS Iron Plastic COB LED Downlight
Free New Design 6W Aluminium ABS Iron Plastic COB LED Downlight
Magnetic Track Light TX0240B
Magnetic Track Light TX0240B
White 5W Plastic COB LED Ceiling Light
White 5W Plastic COB LED Ceiling Light
Fashion New Design LED Downlight Fixture New Modern GU10 LED Downlight Fixture
Fashion New Design LED Downlight Fixture New Modern GU10 LED Downlight Fixture
PC Material E27 Decorative Lights Wall Light LED Outdoor Wall Light Morden Wall Light
PC Material E27 Decorative Lights Wall Light LED Outdoor Wall Light Morden Wall Light
Modern design wall light LBD0940-7
Modern design wall light LBD0940-7
LED Spike Light SL1920B
LED Spike Light SL1920B

loading

Share to:

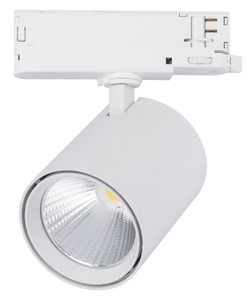

COB 4-wire Dimmable LED Track Lighting


  • Superior lighting performance and energy efficiency with COB technology
  • Versatile functionality with both CRI ≥ 80 and Triac dimmable capabilities
  • Wide range of beam angle options for customized spotlighting
  • A1070 cold forging aluminum heat sink for better heat dissipation
  • Meanwell or Philips driver options with a three-year warranty for added reliability
  • LDG3340P-30
  • 30W
  • Aluminum
  • Black & White
Availability:
Inquire

|

 Product Description

COB 4-wire Dimmable LED Track LightingCOB 4-wire Dimmable LED Track Lighting


 |Application Video


|

 Data Sheet

performance
parameter		 lamp warm white natural white cool white
lumen (lm) 3080 3200 3150
color temperature（K) 3000K 4200K 6500K
CRI ≥80
type of LED COB
beam angle 32.4°
decay rate (%) less than 3% within 1000 working hours
total power (W) 30W±10%
lifespan (Hrs) ≥30000Hrs
high voltage testing 500Vac/1min
LED
parameter		 lighting efficiency 100 lm/W
chip quantity 72PCS
series-parallel way 3B12C*2
voltage 34-38V
current 750mA
driver
parameter		 input parameter 220-240V AC，50/60Hz
power factor >0.9
output parameter 700mA 30-40v
structure
parameter		 material AL
dimension 150*105*141mm
cut-out /
protection class Class II
IP IP20
environment
parameter		 application hotel、home-lighting、recreation place、supermarket、office building
operating temperature -25℃ ～ 50℃、10% ～ 90% R.H.
storage temperature -30℃ ～ 85℃、0% ～ 95% R.H.
