TX2330S-5 TX2340S-12 TX2350S-16 TX2360S-22
5W 12W 16W 22W
AL+PC
| Availability: | |
|---|---|

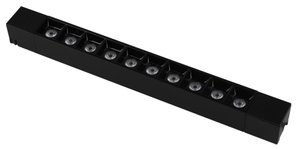

There are four power options available for this track linear LED light fixture: 5W, 12W, 16W, and 22W. The OSRAM company provides the LED chips, which have a high color rendering index of above 80. The fixture works with the 24mm magnetic track lighting system from Oteshen Lighting. The light beam has a spread angle of 35 degrees. In order to maximize heat dissipation and ensure a long lifespan, the aluminum housing is die-cast. Stove enamel serves as the final coating to provide a beautiful, long-lasting look.
| Order model | Wattage | Dimension | Lumens | Color temperature | Beam angle | Power Factor | Light Source | CRI | Input voltage |
TX2330S-5 | 5W | 146X26X24mm | 500-550lm | 3000K,4200K,6500K | 35° | >0.5 | SMD | >80 | 48V DC |
TX2340S-12 | 12W | 261X26X24mm | 1100-1170lm | 3000K,4200K,6500K | 35° | >0.5 | SMD | >80 | 48V DC |
| TX2250S-16 | 16W | 375X26X24mm | 1400-1450lm | 3000K,4200K,6500K | 35° | >0.5 | SMD | >80 | 48V DC |
| TX2260S-22 | 22W | 488X26X24mm | 1890-1950lm | 3000K,4200K,6500K | 35° | >0.5 | SMD | >80 | 48V DC |
Certification
Our Magnetic Grille Lights are certified to the highest global standards such as UL, CE and ROHS to ensure the highest levels of quality, safety and reliability. Please contact us with any questions regarding our certifications or product compliance. Customer satisfaction is our foremost priority!
Custom Certificates
We can also provide custom certification certificates and lab test reports according to your specifications for Magnetic Grille Lights. Contact us to discuss your unique documentation needs.
OEM/ODM Manufacturing
For an innovative Magnetic Grille Light solution, choose Magnetic Grille Light. Contact us to discuss your exact requirements and begin a long-term partnership for growth.
We look forward to being your preferred Magnetic Grille Lighting supplier!
Q: Do you offer free samples of your magnetic grille lights?
A: Yes! We provide free samples of our magnetic grille lights to help potential customers evaluate product quality. The customer pays for shipping costs.
Q: What is your typical lead time for magnetic grille light orders?
A: Our standard lead time for magnetic grille light orders is 2-3 weeks, depending on order quantity. Larger orders may require a slightly longer lead time.
Q: What is your minimum order quantity (MOQ) for magnetic grille lights?
A: The minimum order quantity for our magnetic grille lights is 100 pieces.
Q: Can we print our company logo on the lights?
A: Yes, we offer custom printing and color services for magnetic grille lights. Please provide your logo design, desired colors and quantity requirements and we will provide a quotation.
Q: What is the warranty for your magnetic grille lights?
A: Our magnetic grille lights come with a 2-year warranty against defects in workmanship and materials. During the warranty period, we will repair or replace defective products free of charge.
