  • LED track light with 72 LED arrays for the wide and uniform beam of light
  • beam angle: 31.2°
  • Ideal for art galleries and fashion stores
  • Compatible with universal line voltage track head and suitable for 4-wire single circuit track systems
  • Adjustable light direction with 350° horizontal and 90° vertical rotation
  • Safe and focused illumination for artwork with no ultraviolet or infrared radiation
  • Comes with a 5-year lifetime warranty
  • LDG3240-35

  • LDG3240-35

  • 35W

  • Aluminium

  • IP20

Availability:
Overview

LED track lighting


LED Track Lighting(Black/White)

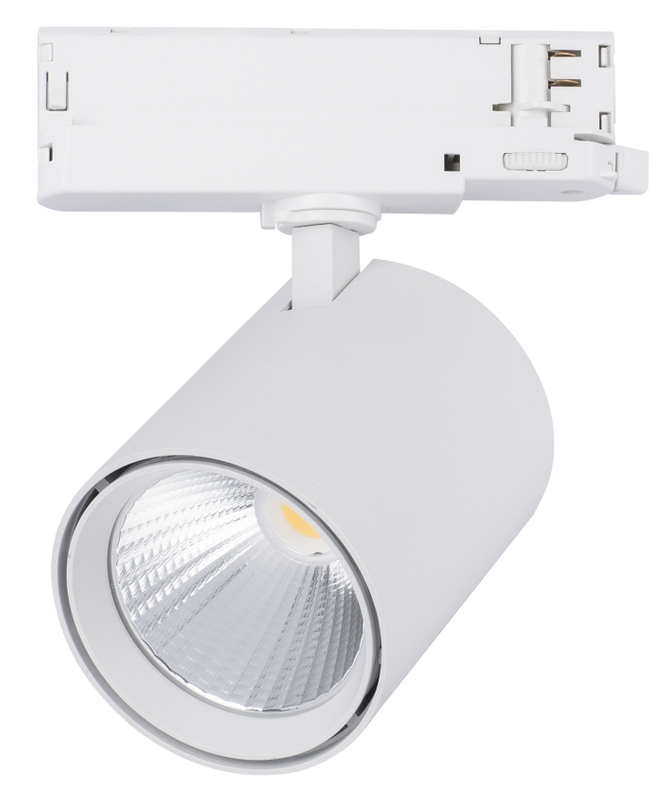

LDG3240-35 series is our premium high CRI COB LED track light, available in 35W with a matte white or black powder coating. The COB LED chip has a CRI of 90 and outputs 126lm/W. With flicker-free driver and a lifespan of up to 10 years, this track light is an excellent choice for commercial and industrial lighting applications. It can be configured with 2-circuit, 3-wire, or 4-wire (3-phase) heads.

Product Description


performance
parameter
lamp Warm white Natural White Cold white
lumen (lm) 4400 4800 4600
color temperature(K) 3000K 4200K 6500K
CRI ≥80
type of LED COB
beam angle 31.2°
decay rate (%) 1000 hours no more than 3%
total power (W) 35W±10%
lifespan (Hrs) ≥30000Hrs
high voltage testing 500Vac/1min
LED
parameter
lighting efficiency 126 lm/W
chip quantity 72PCS
series-parallel way 6B12C
voltage 34-38V
current 900mA
driver
parameter
input parameter 220-240V AC,50/60Hz
power factor >0.9
output parameter 850mA 30-40v
structure
parameter
material AL
dimension 91*111*159mm
cut-out /
protection class

Class II

IP IP20
environment
parameter
application Hotel lighting, home lighting, entertainment venue lighting, shopping mall lighting, office building lighting
operating temperature -25℃ ~ 50℃、10% ~ 90% R.H.
storage temperature -30℃ ~ 85℃、0% ~ 95% R.H.


Installation & Mounting


Before installing your track lighting, it's crucial to mount the appropriate track onto the ceiling or wall, or you can opt for a suspended track. 2-wire heads are compatible with 2-wire tracks, while 3-wire and 4-wire tracks require 3-wire and 4-wire heads, respectively. For detailed installation instructions, please refer to our comprehensive PDF installation guide.



Oteshen Track Lights boast a unique and interchangeable design that makes them a sought-after marketing tool across various markets. Our commitment to providing top-notch service and delivering high-quality products is unwavering. We are confident that our offerings will be well-received by both customers and nations alike. Make Oteshen Track Lights your top choice.
