COB Two wires 1 circuit track lighting LDG0910

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
LDG0940A\B Series - An Affordable, no-frills Track Lighting Option

Key Features
•Competitive pricing
The LDG0940A series offers an economic track light option for customers seeking value for money.

•Medium-level quality
Despite the low cost, the lamps provide mid-range quality with reliable LED light sources.

•Basic aluminum track lamp body
The aluminum lamp body rotates 360 degrees and tilts 90 degrees.

•Adequate light output
The 5/7W, 10W 15W, and 18W options produce sufficient illumination for general space lighting needs.

•Good for projects on a budget
Though lacking advanced features, the functionally and pricing of the LDG0940A lamps make them suitable for projects operating on a strict budget, especially residential, retail and commercial applications.

  • LDG0910A/B

  • 5W/7W/10W/15W/18W

  • Aluminium

Availability:

|

 Product Description

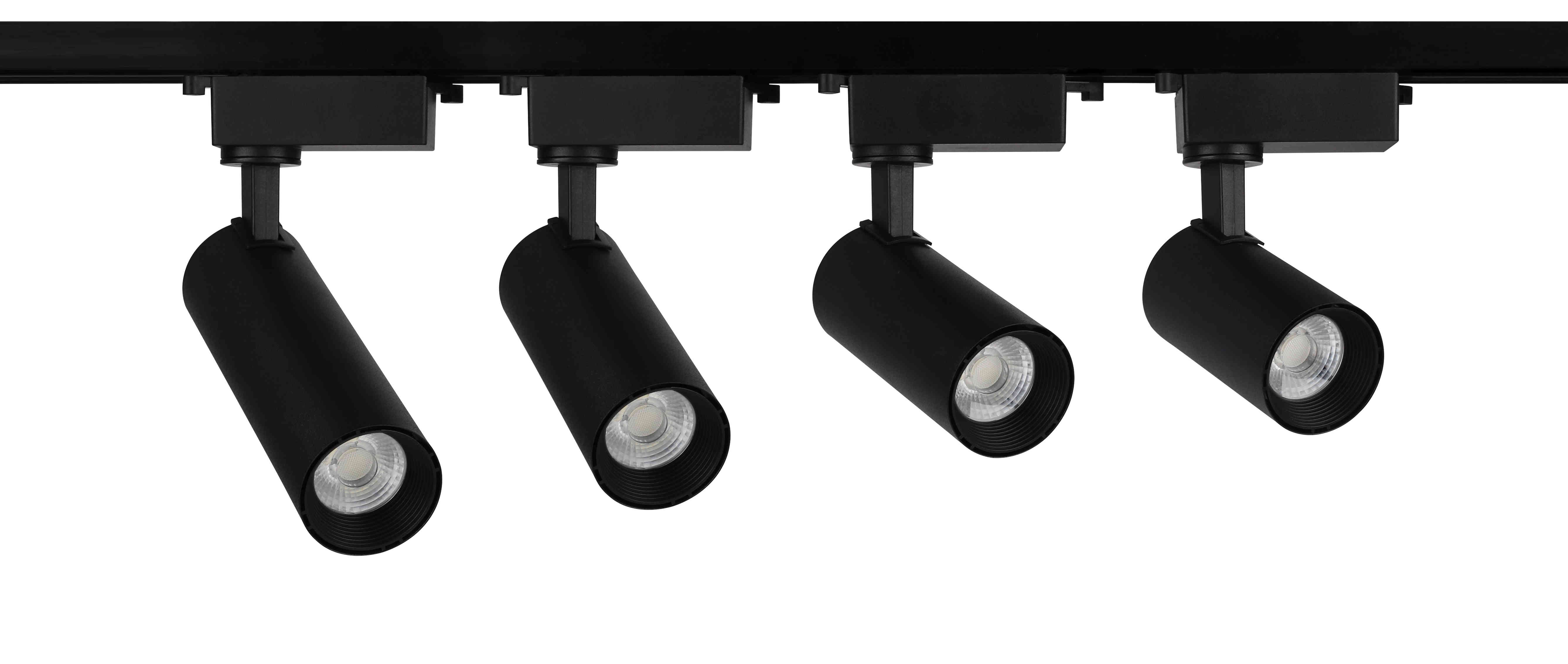

cob led track lighting

Type A with lens

COB LED track lighting

Type B with reflective cup

|

 Data Sheet

Order model Wattage Dimension Lumens Color temperature Beam angle Power Factor Light Source CRI Input voltage DATASHEET

LDG0910A-5

5W±10% ∅49X120X115mm 380lm 3000K,4200K,6500K 35° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0910B-5 5W±10% 120*49X155mm 520lm
3000K,4200K,6500K 30° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0910A-7 7W±10% ∅49X90X115mm 495lm
3000K,4200K,6500K 35° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0910B-7 7W±10% 120*49X155mm 650lm 3000K,4200K,6500K 30° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download

LDG0920A-10

10W±10% ∅49X90X115mm 710lm 3000K,4200K,6500K 35° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0920B-10 10W±10% 120*49X175mm 740lm 3000K,4200K,6500K 30° >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0930A-15 15W±10% ∅49X130X115mm 960lm 3000K,4200K,6500K 35º >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0930B-15 15W±10% 120*49X198mm 1170lm 3000K,4200K,6500K 35º >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0940A-18 18W±10%
∅49X150X115mm
1000-1150lm 3000K,4200K,6500K 35º >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download
LDG0940B-18 18W±10% ∅49X150X115mm 1170lm
3000K,4200K,6500K 35º >0.5 COB ≥80 100~240VAC, 100mA  50/60Hz Download

|

 Company Profile

Oteshen is a manufacturing and trading company with over 49 years of expertise in the exporting trade. Since 1984, we have focused on lighting and have developed a professional lighting equipment company. Our 78000m2 plant includes a die-casting factory, an injection workshop, and a painting studio. Our strong and mature supply network can ensure on-time delivery. Please contact us for dependable cooperation!


|

 Comment & FAQ

Q1: What are the features of the Oteshen Track Technical Craft used in the Single Circuit 2 Wire Surface Track system?


A2: The Oteshen Track Technical Craft employed in the Single Circuit 2 Wire Surface Track system is a coextrusion of copper plastic. It ensures stability and durability, contributing to the overall performance and longevity of the track system.


Q2: What are the packing and shipment details for the Single Circuit 2 Wire Surface Track?


A2: The production time for the Single Circuit 2 Wire Surface Track is approximately 5-25 days, depending on the order quantities. The tracks are packed in 20 pieces per carton. As for shipment, it can be delivered either by air, which takes around 3-7 days, or by sea, as per your requirement.


Q3: Are there any accessories or suspension kits available for the 2 Wire Single Track system?


A3: Yes, there are accessories and suspension kits available for the 2 Wire Single Track system. These additional components can be used to enhance the installation and functionality of the track system.


Q4: Does the Single Circuit 2 Wire Surface Track have any certification for lighting?


A4: Yes, the Single Circuit 2 Wire Surface Track has a lighting track certificate, ensuring compliance with relevant industry standards and regulations regarding lighting safety and performance.
