1. Series Overview

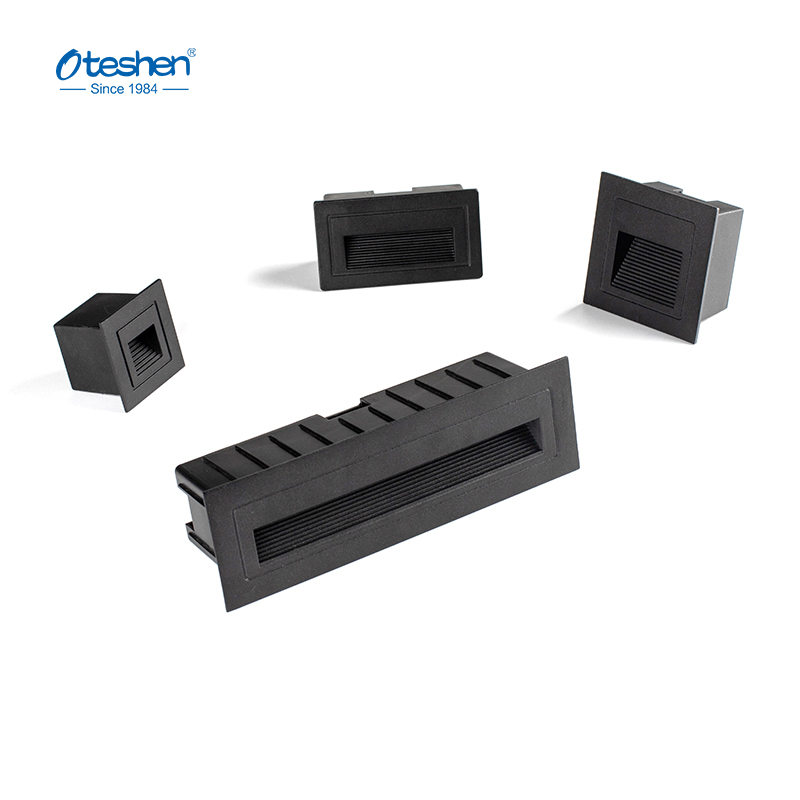

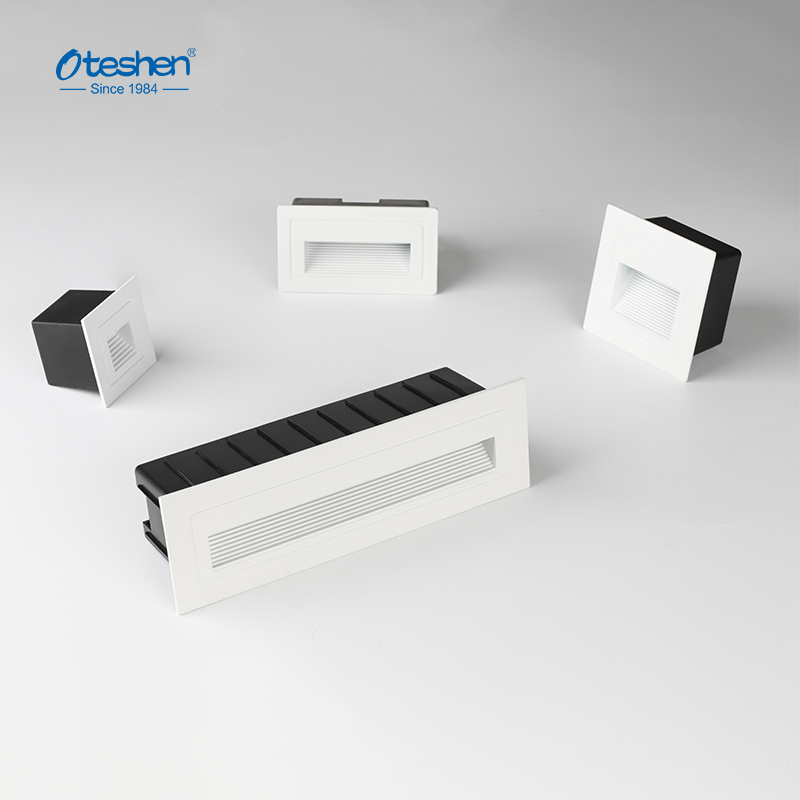

LBD70 series IP65 recessed LED step light is industrial aluminum stair lamp for indoor & covered outdoor application, all complete models fully listed below without abbreviation:
LBD7010-3: 3W Square small step light
LBD7020-3: 3W Narrow rectangular step light
LBD7030-5: 5W Medium square step light
LBD7040-6: 6W Long rectangular linear step light
LBD7040-10: 10W High brightness long linear step light

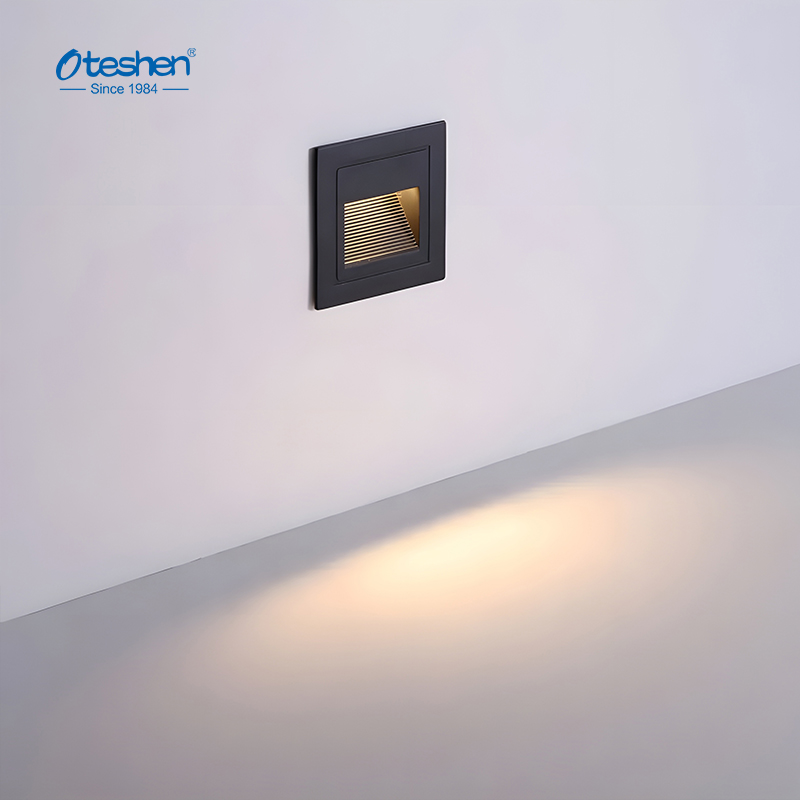

![IP65 Aluminum Recessed LED Step Light LBD70 Full Series, Complete Models LBD7010-3 LBD7020-3 LBD7030-5 LBD7040-6 LBD7040-10, 3W/5W/6W/10W, 75° Beam Angle, Black & White Color, 2 Years Warranty Indoor Outdoor Stair Lighting]( "IP65 Aluminum Recessed LED Step Light LBD70 Full Series, Complete Models LBD7010-3 LBD7020-3 LBD7030-5 LBD7040-6 LBD7040-10, 3W/5W/6W/10W, 75° Beam Angle, Black & White Color, 2 Years Warranty Indoor Outdoor Stair Lighting")
Whole series adopts die-cast aluminum body with IP65 dustproof & waterproof rating, fixed 75° light beam angle, CRI≥80 to restore true object color. Black and white two housing colors for modern decoration styles, different body lengths to meet short stair and long corridor lighting demands, standard 2-year warranty for all SKUs.
2. Core Product Advantages
IP65 Waterproof & Dustproof: Adapt to covered outdoor, damp corridor environments
Die-Cast Aluminum Housing: Fast heat dissipation, anti-rust, long service life
Multi Power & Size Selection: 3W/5W/6W/10W, square & rectangular shapes for different scene
Fixed 75° Wide Beam Angle: Uniform wall wash light, no dark zone on stair surface
High Color Rendering Index CRI≥80: Natural light color, comfortable walking vision

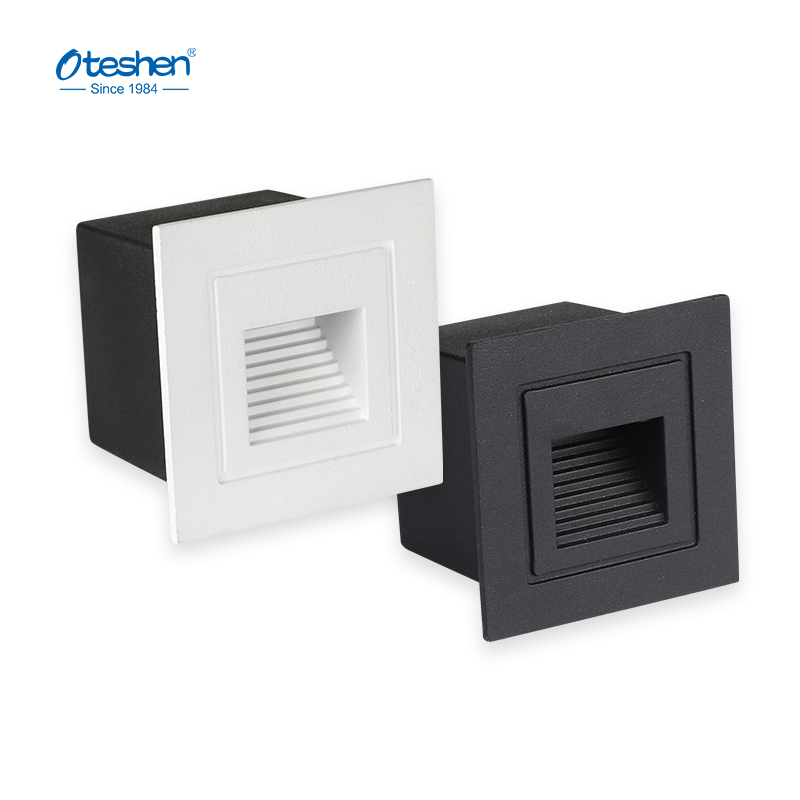

Dual Color Option: Matte Black / Matte White housing to match wall decoration
Full 2-Year Manufacturer Warranty: Stable quality, reliable after-sales support
Recessed Embedded Installation: Flush with wall surface, minimalist invisible decoration effect
3. Standard Specifications By Full Model
| Complete Model | Power | Lumen Output | Dimension | Color | Material | CRI |
| LBD7010-3 | 3W | 30lm | 58×58×45mm | Black/White | Aluminum | ≥80 |
| LBD7020-3 | 3W | 60lm | 103×58×45mm | Black/White | Aluminum | ≥80 |
| LBD7030-5 | 5W | 100lm | 84×84×47mm | Black/White | Aluminum | ≥80 |
| LBD7040-6 | 6W | 120lm | 210×65×60mm | Black/White | Aluminum | ≥80 |
| LBD7040-10 | 10W | 200lm | 210×65×60mm | Black/White | Aluminum | ≥80 |
Unified Fixed Parameter: Beam Angle 75°, IP65 Waterproof Grade, 2 Years Warranty
4. Full Complete Model Definition (No Omission)

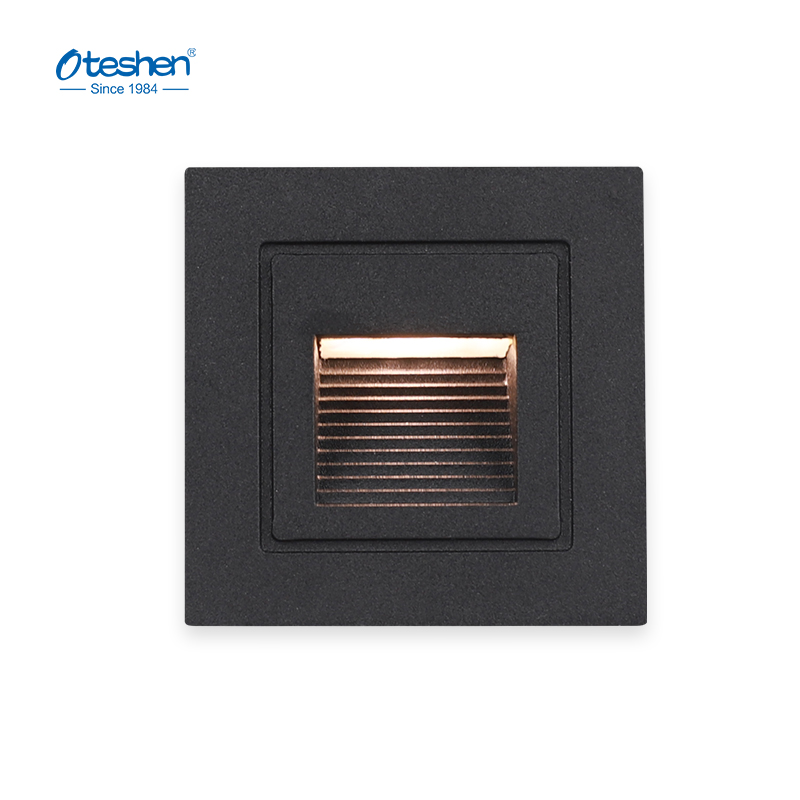

LBD7010-3: Mini square recessed step light, 3W, 30 lumens, dimension 58×58×45mm

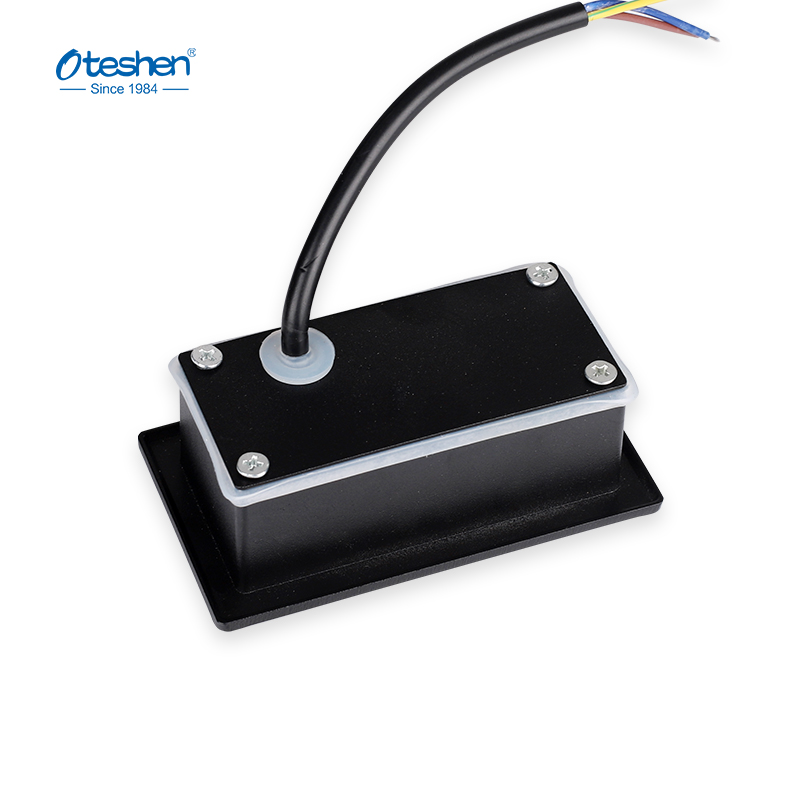

LBD7020-3: Narrow short rectangular step light, 3W, 60 lumens, dimension 103×58×45mm
LBD7030-5: Medium square step light, 5W, 100 lumens, dimension 84×84×47mm
LBD7040-6: Long linear rectangular step light, 6W, 120 lumens, dimension 210×65×60mm
LBD7040-10: High lumen long linear step light, 10W, 200 lumens, dimension 210×65×60mm
5. Application Scenarios
Indoor residential stair treads, hotel long corridors, villa covered courtyard walkways, shopping mall landscape steps, apartment public passage, basement ramp lighting, commercial building skirting accent lighting.
