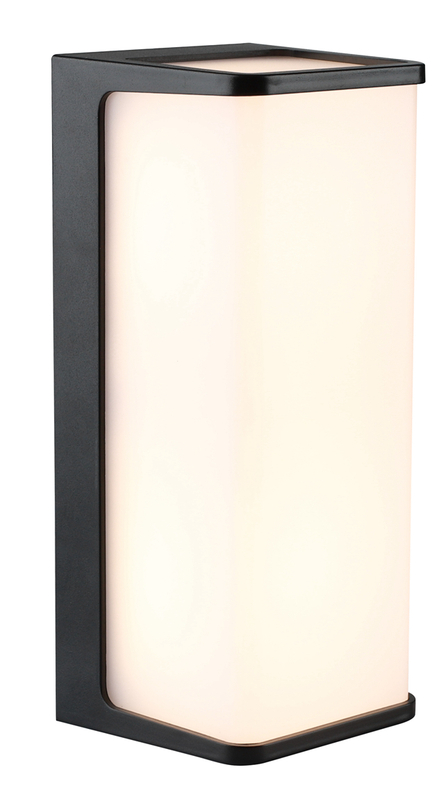

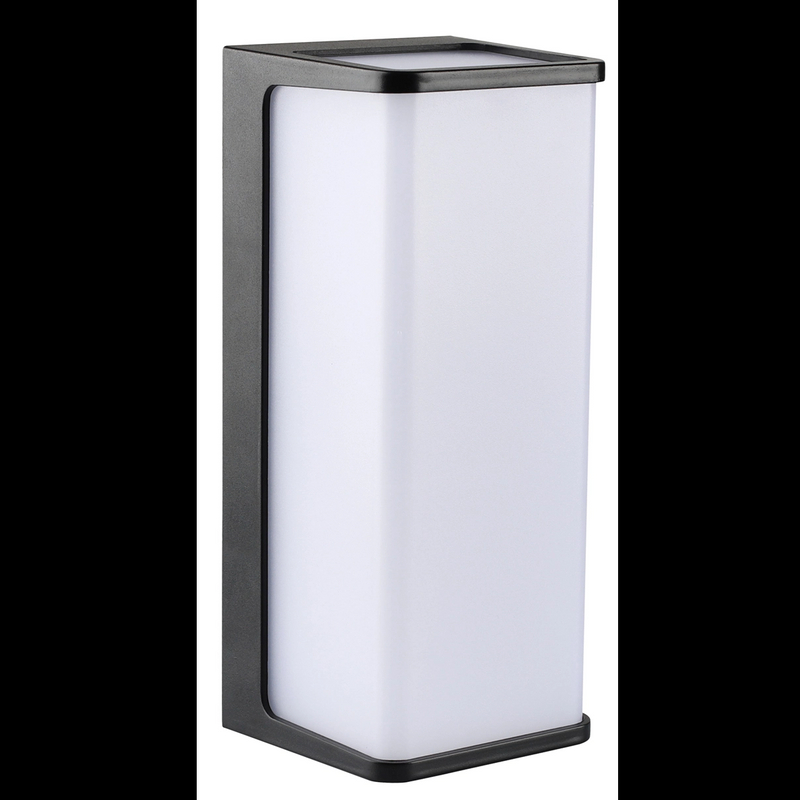

LBD0643-10
LBD0643-10
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm) | 800 lm | 810lm | 830lm | ||||||
| color temperature（K) | 3000K | 4200K | 6500K | ||||||
| CRI | ≥80 | ||||||||
| type of LED | SMD LED | ||||||||
| beam angle | 160° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 10W | ||||||||
| lifespan (Hrs) | ≥30000Hrs | ||||||||
| high voltage testing | 3750Vac/1min | ||||||||
| LED parameter | lighting efficiency | 80Lm/W | |||||||
| chip quantity | 48PCS | ||||||||
| series-parallel way | 24C2B | ||||||||
| voltage | |||||||||
| current | |||||||||
| driver parameter | input parameter | 100-265V，50/60Hz | |||||||
| power factor | 0.5 | ||||||||
| output parameter | 300MA±5% 30-80V | ||||||||
| structure parameter | material | PC | |||||||
| dimension | 200X85X80mm | ||||||||
| cut-out | \ | ||||||||
| protection class | calss I | ||||||||
| IP | IP65 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ～ 50℃、10% ～ 90% R.H. | ||||||||
| storage temperature | -30℃ ～ 85℃、0% ～ 95% R.H. | ||||||||
