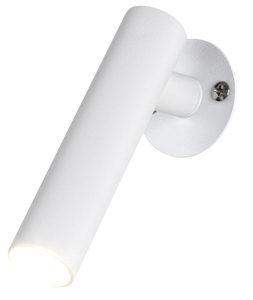

LCG1210FC
LCG1210FC
2W
Aluminum+Iron
IP20
Black & White
| SKU: | |
|---|---|
| Availability: | |
|
Product Description

|
Application Video
|
Data Sheet
| performance parameter | lamp | warm white | natural white | cool white | |||||
| lumen (lm) | 140lm | 142lm | 146lm | ||||||
| color temperature(K) | 3000K | 4200K | 6500K | ||||||
| CRI | ≥80 | ||||||||
| type of LED | SMD 2835 | ||||||||
| beam angle | 38° | ||||||||
| decay rate (%) | less than 3% within 1000 working hours | ||||||||
| total power (W) | 2W±10% | ||||||||
| lifespan (Hrs) | ≥15000Hrs | ||||||||
| high voltage testing | 500Vac/1min | ||||||||
| LED parameter | lighting efficiency | 70lm/W | |||||||
| chip quantity | 1PCS | ||||||||
| series-parallel way | 1C1B | ||||||||
| voltage | 5V | ||||||||
| current | 340mA | ||||||||
| driver parameter | input parameter | 100~240VAC,50/60Hz | |||||||
| power factor | ≧0.5 | ||||||||
| output parameter | (Optoelectronics,340mA 2-70V)(Charge 5V2A) | ||||||||
| structure parameter | material | Aluminum + Iron | |||||||
| dimension | 150*60*145mm | ||||||||
| cut-out | / | ||||||||
| protection class | Class Ⅰ | ||||||||
| IP | IP20 | ||||||||
| environment parameter | application | hotel、home-lighting、recreation place、supermarket、office building | |||||||
| operating temperature | -25℃ ~ 50℃、10% ~ 90% R.H. | ||||||||
| storage temperature | -30℃ ~ 85℃、0% ~ 95% R.H. | ||||||||
